123B/124B/125B
Users Manual
50
The Meter Recorder makes the Test Tool act as a
paperless recorder that collects a series of parameter
measurements over time and shows the result as a graph
or a trend-line on screen. This is most useful to
understand the change of individual parameters over time
or the influence of environmental changes like
temperature over time.
The Scope Recorder captures waveforms. The applied
input voltage is registered over time and the resulting
waveform is stored in a long memory record. This can be
used to capture intermittent problems. Deviations from
the original signal are stored as events that can be easily
viewed after recording without the need to check all
information.

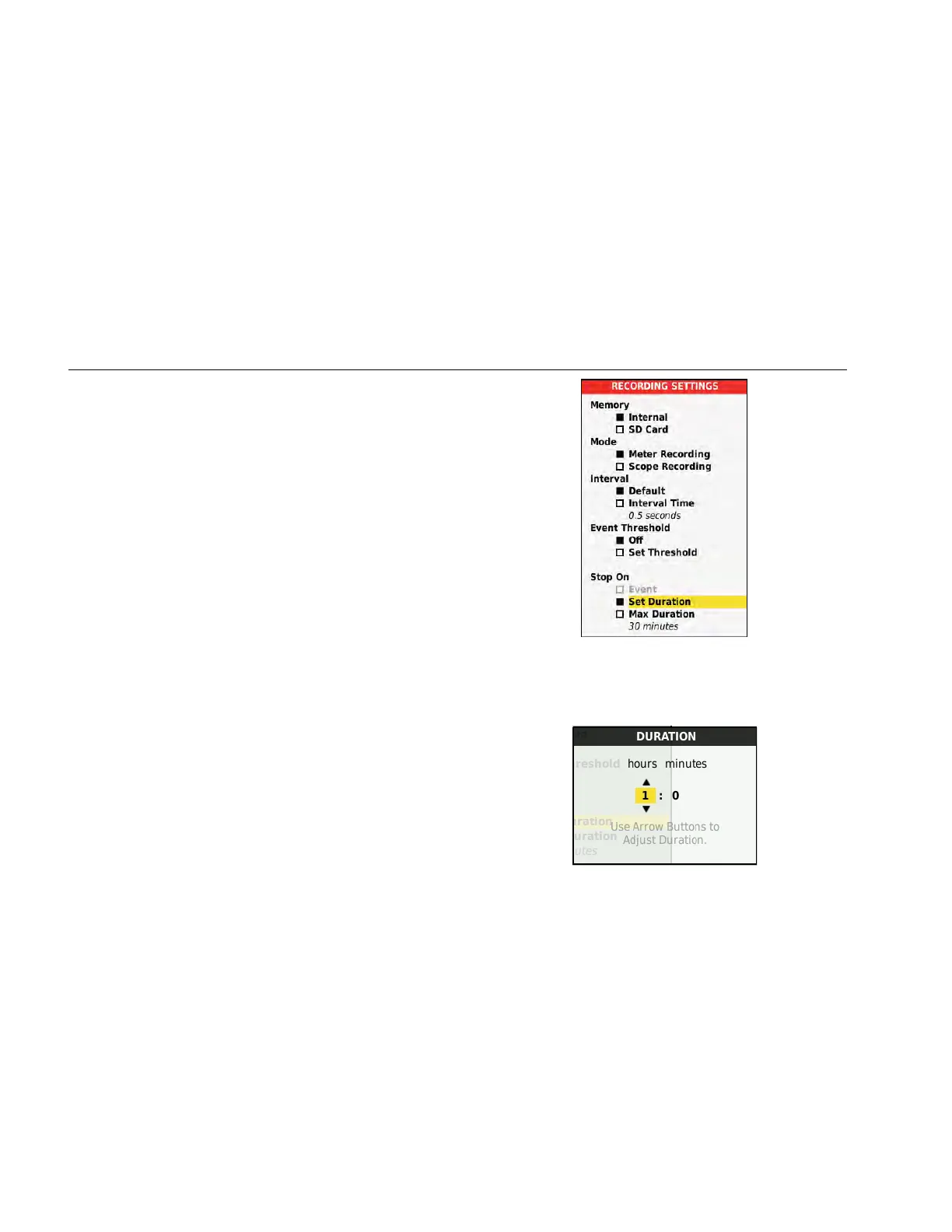

Start and Stop Meter Recording
Before you record, apply a stable signal to input A and B.
To set the parameters for recording:
1. Push to open the Recorder button bar.
2. Push 1 to open the RECORDING SETTINGS
menu.
hxv38.eps
3. Use YZ to highlight Set Duration.
4. Push to open the RECORDER SETTINGS >
DURATION menu.
hxv39.eps
