123B/124B/125B
Users Manual
52
Cursor Measurements
Use the cursor to make precise digital measurements on
the plotted graphs. The display shows the measurement
results, the date, and the time at the cursor position. Each
result is a maximum and a minimum measurement.
To use cursors:
1. Push to stop the graph update and freeze the
screen.
2. Push 2 to open the RECORDING VIEW menu.
3. Use
YZ to highlight Cursor On.
4. Push to accept the change.
5. Push 4 to exit the menu.
6. Use WX to move the cursors.

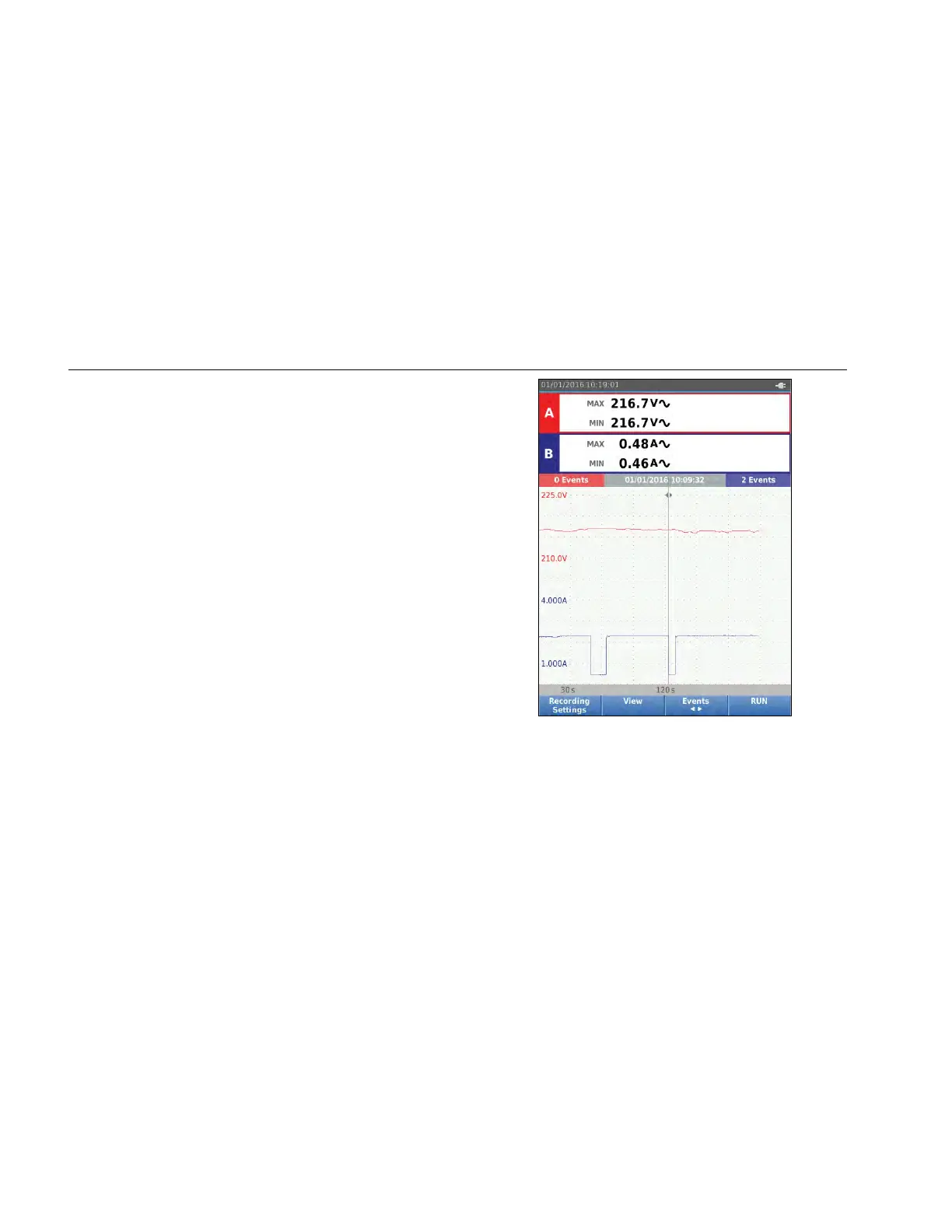

hxv41.eps
The readings show a minimum and maximum value.
These are the minimum and maximum values of the
readings for the time period that represents one pixel on
the display.
