Fluke 120B Series User Manual

Industrial ScopeMeter®
Power and Harmonics Mode
37

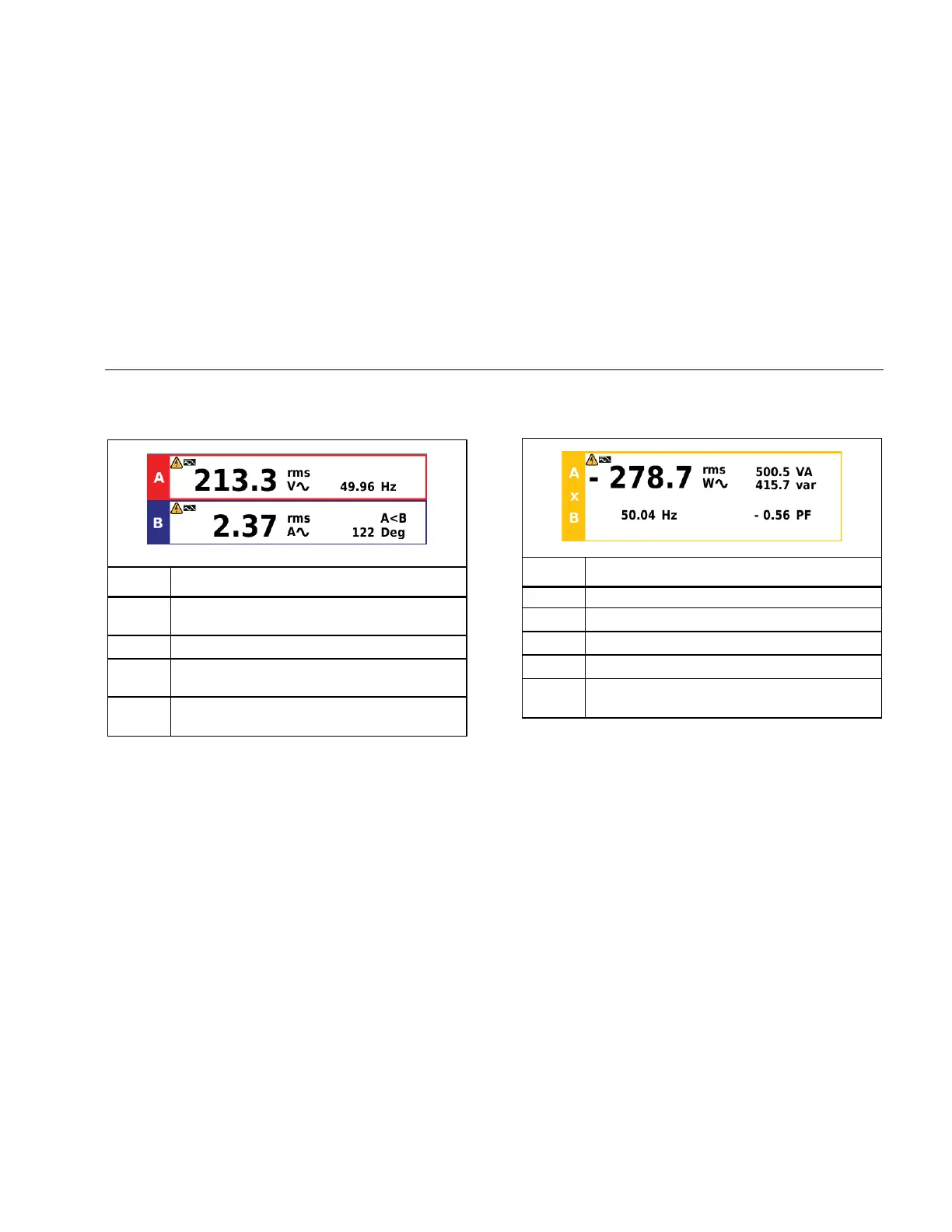

Table 4 is a list of the visible readings when
Voltage/Current is selected.
Table 4. Volt/Amp Readings
hxv27.eps
Symbol Description
rms
v
Voltage AC value on channel A
Hz
Frequency of voltage signal on channel A
rms
a
Current AC value on channel B
A<B
Deg
Phase angle between voltage on channel A
and current on channel B
Table 5 is a list of the visible readings when Power is
selected.
Table 5. Watt Readings
hxv28.eps
Symbol Description
KW
Active power in Watt
VA
Apparent power in Volt Ampere
VAR
Reactive power in Volt Ampere
Hz
Frequency
PF
Power factor. The ratio between active power
and apparent power.
