Industrial ScopeMeter®
Fieldbus Mode
43
hxv32.eps
7. Use the BB120 Banana-to-BNC Adapter to connect a
BNC cable for bus measurements.
You can use the optional BHT190 Bushealth Test
adapter to easily connect the probe tip to a bus that
uses a DB9, RJ-45, or a M12 connector.

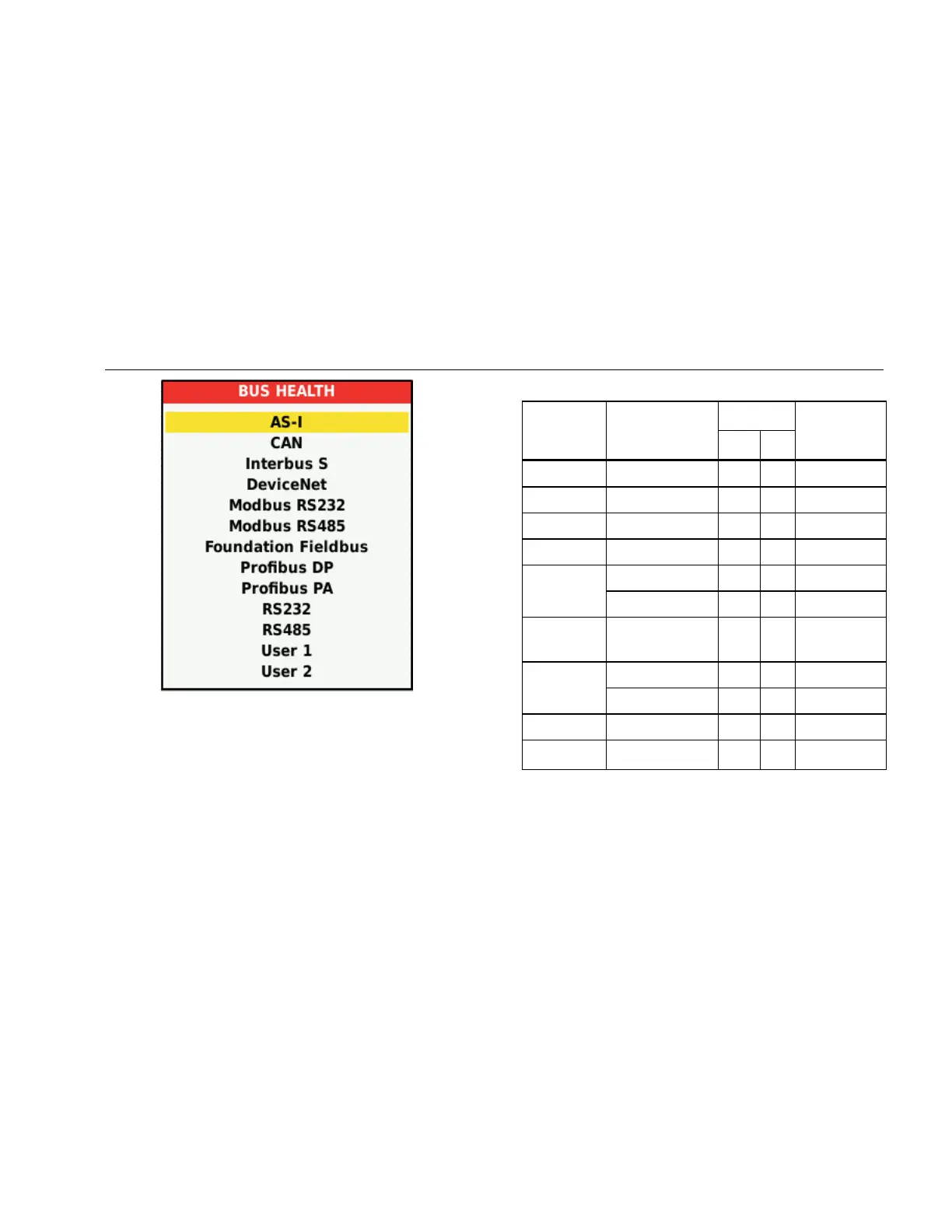

Table 9. Bus Measurement Inputs
Bus Subtype
Input
Advised
Probe
A B
AS-i x - STL120
CAN x x STL120
Interbus S RS-422 x - VP41
DeviceNet x x STL120
Modbus
RS-232 x - STL120
RS-485 x x STL120
Foundation
fieldbus
H1 x - STL120
Profibus
DP/RS-485 x x STL120
PA/31.25 kBit/s x - STL120
RS-232 x - STL120
RS-485 x x STL120
