Energy Logger
Accessories
11
Test Leads
Test leads are four-core, flat, test leads that do not tangle
and can be installed in tight spaces. On installations where
the access to Neutral is out of reach with the three-phase
test lead, use the black test lead to extend the Neutral
lead.
For single phase measurements use the red and black test
leads. See Figure 5.

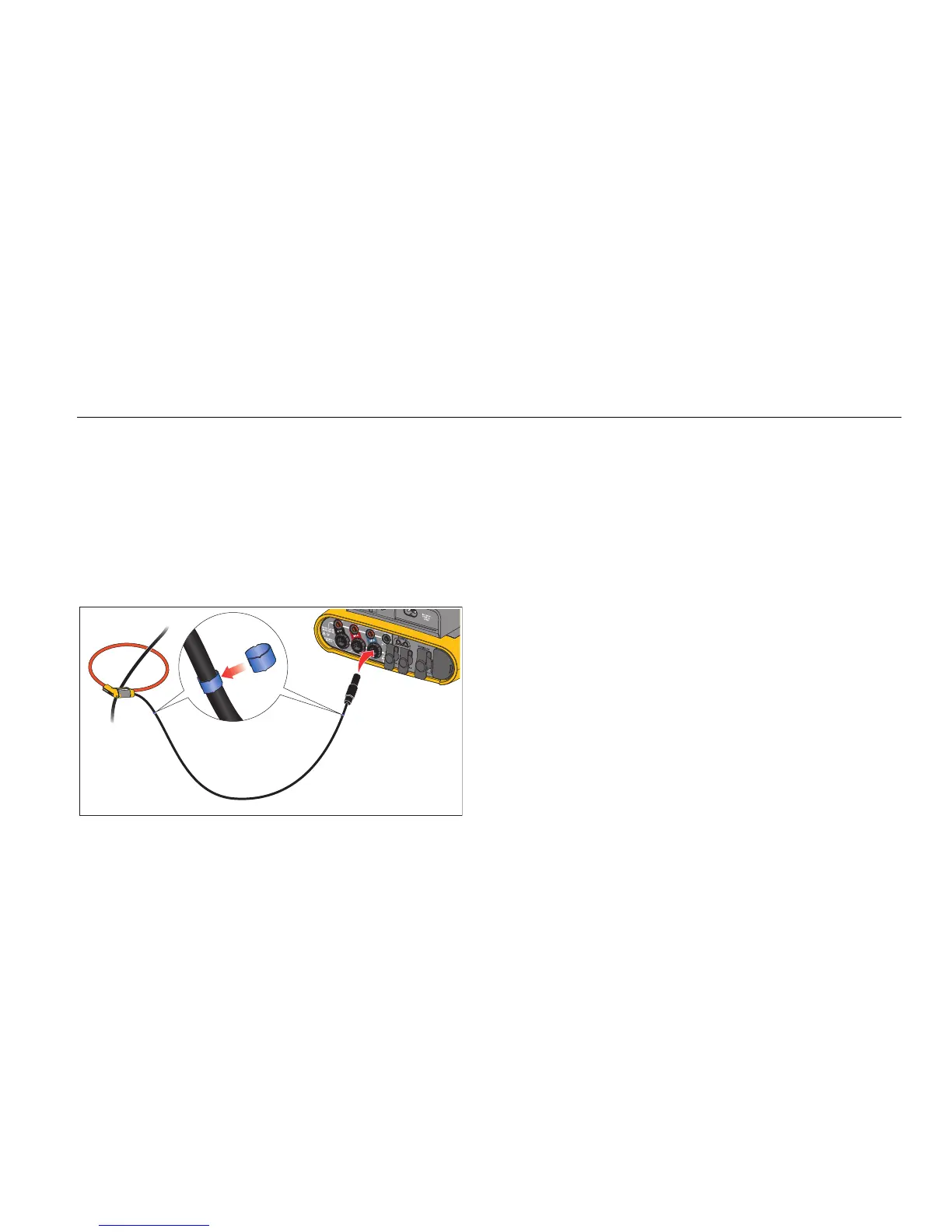

hcf025.eps
Figure 5. Test Leads with Color Coding
Kensington Lock
A Kensington Security Slot (also called a K-Slot or
Kensington lock) is part of a built-in anti-theft system. It is
a small, metal-reinforced, oval hole found on the right side
of the Logger (see item 6 in Table 3). It is used for
attaching a lock-and-cable apparatus. The lock is secured
in place with a key or combination lock attached to a
plastic-cover metal cable. The end of the cable has a small
loop that allows the cable to be looped around a
permanent object, such as a cabinet door, to secure it in
place. This lock is available from most electronics and
computer suppliers.
