Applying the Connector Panel Decal
Self-adhesive decals are supplied with the Logger. The
decals correspond to the wiring color codes used in the
USA, Europe and UK, UK (old), Canada, and China. Apply
the decal appropriate for your local wiring codes around
the current and voltage inputs on the connector panel as
shown in Figure 8.
USA (4275029) Canada (4280546)
Europe/UK (New STD 4280531) UK (4280554)
China (4280568)
hcf022.eps

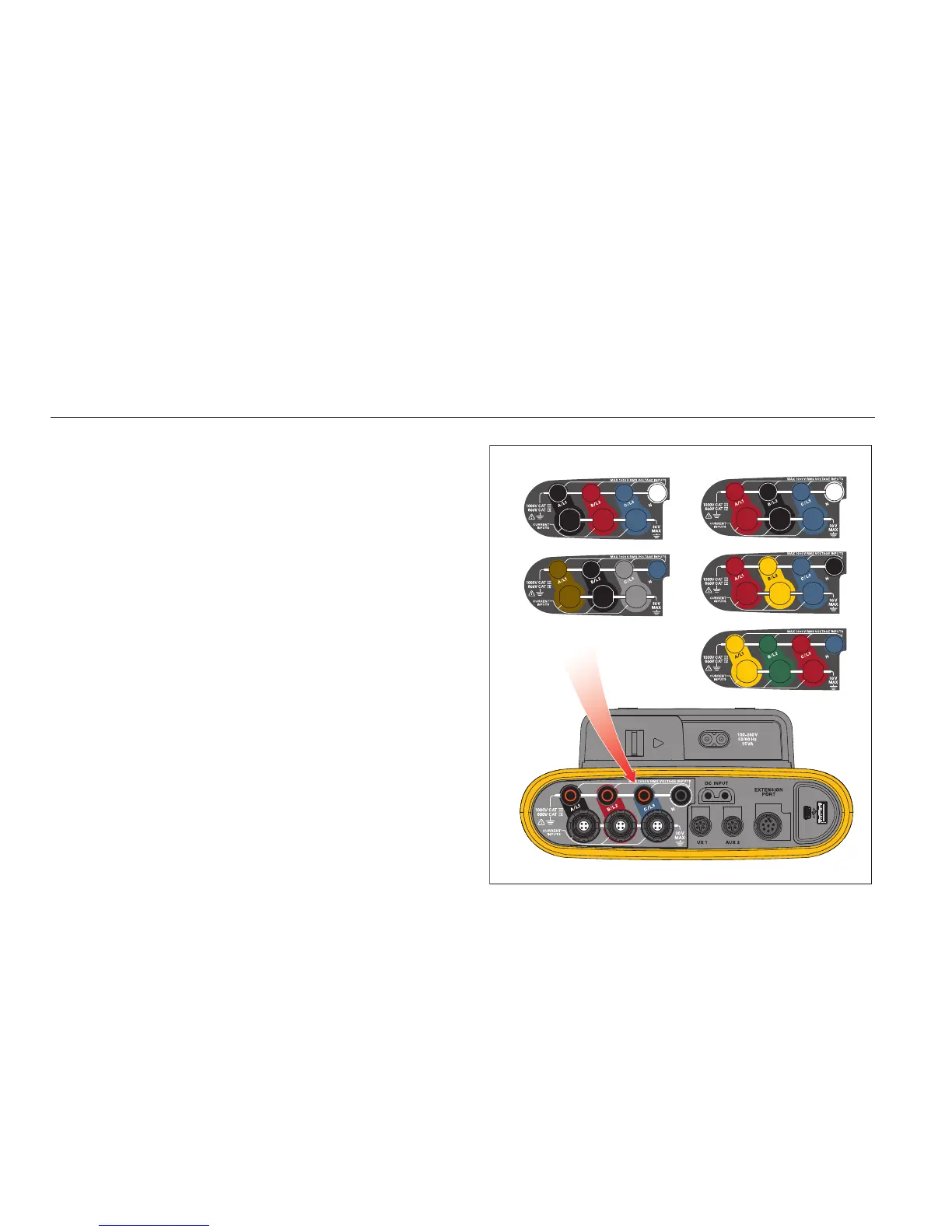

Figure 8. Decal for Connector Panel
