Fluke 1730/BASIC - Connector Panel Identification

Energy Logger
Navigation and User Interface
13
1
9 8
7
6
5
2
3
4
10
11
hcf021.eps

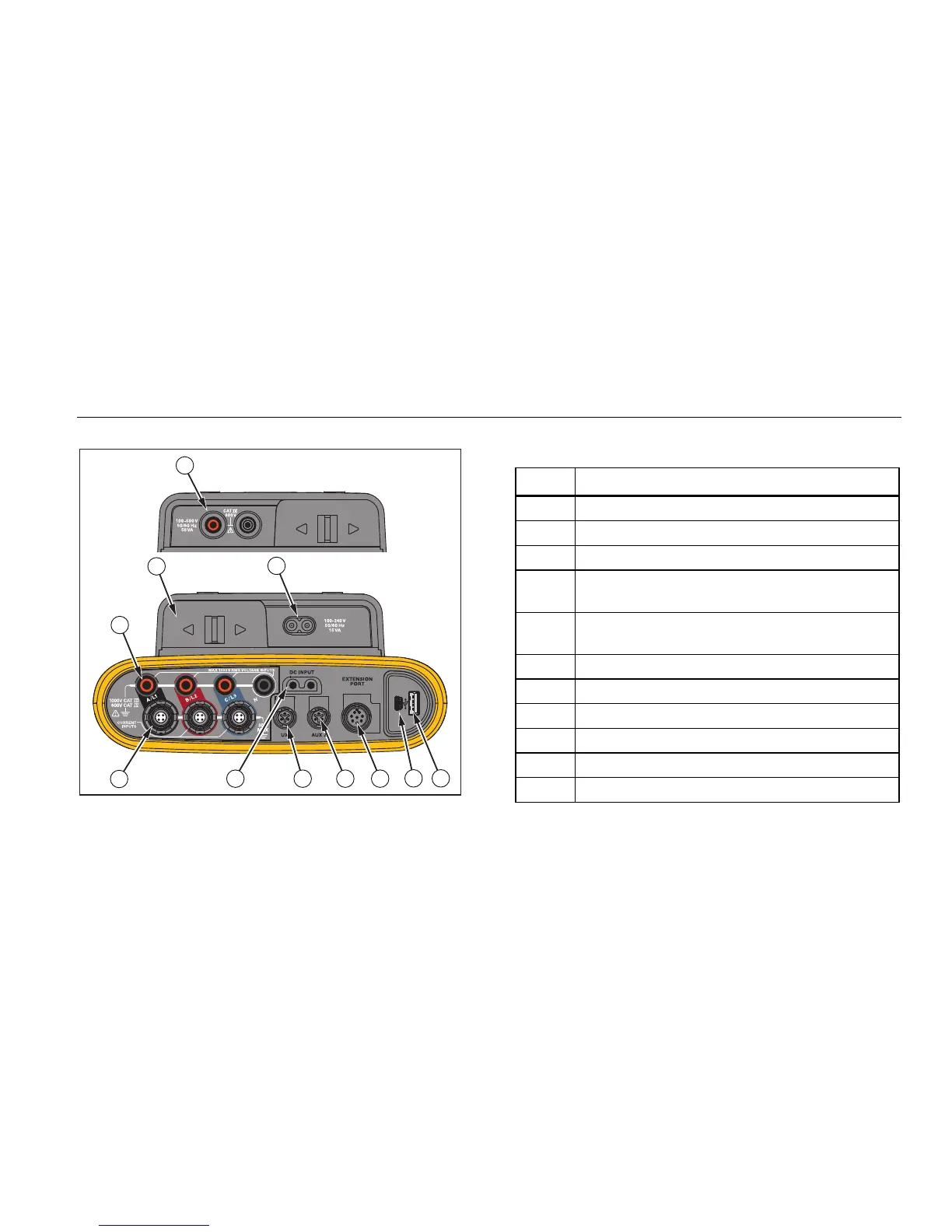

Figure 7. Connector Panel
Table 4. Connector Panel
Item Description
 Current measurement inputs (3 phases)
 Voltage measurement inputs (3 phases)
 Power Cord/Measurement Line Slide-Cover

Power Cord AC Input
100-240 V 50/60 Hz 15 VA

Measurement line AC Input
100-500 V 50/60 Hz 50 VA
 USB connector
 Mini-USB connector
 Extension Port
 Aux 2 connector
 Aux 1 connector
 DC Power Input
