Energy Logger
Function Selection Buttons
19

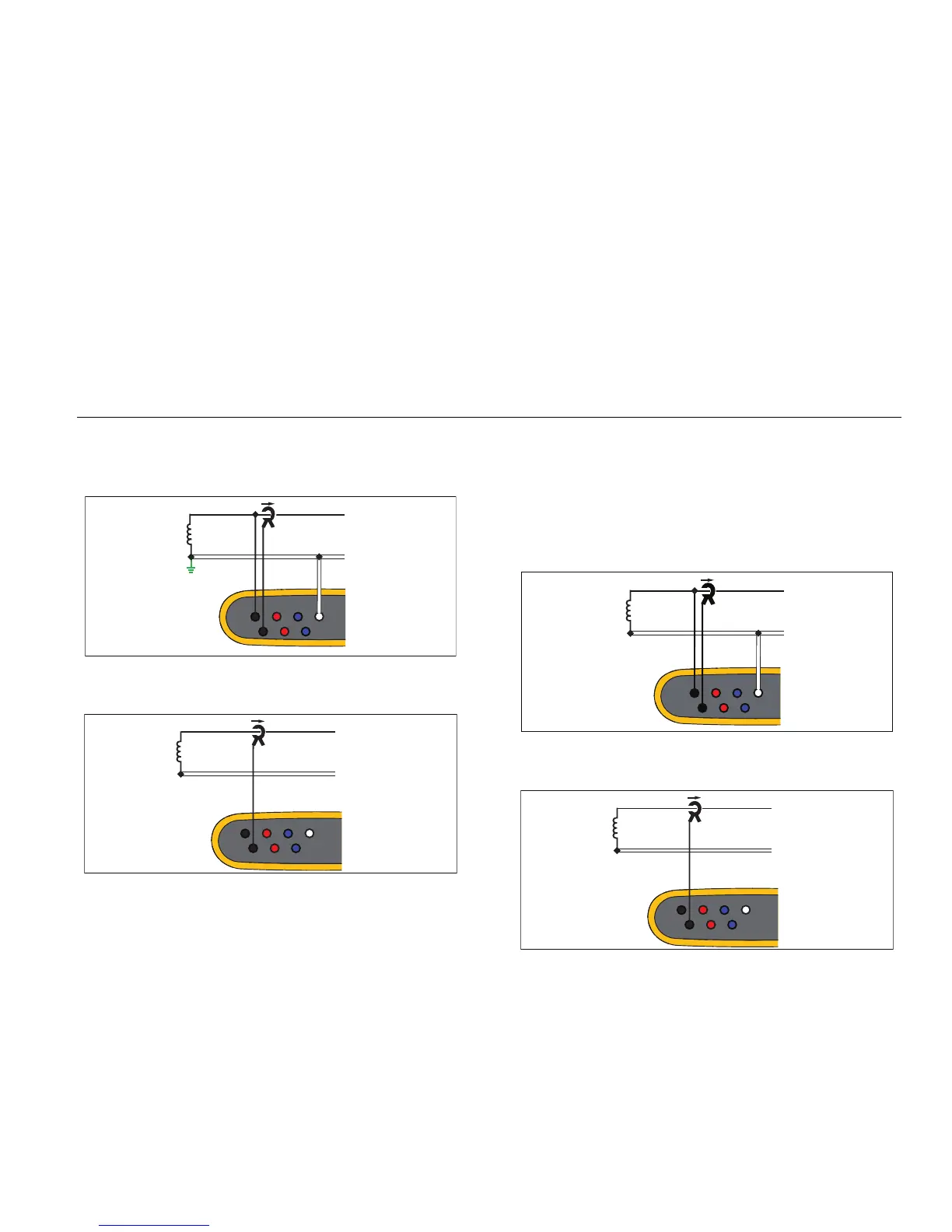

Single Phase
Example: Branch circuit at an outlet.
A/L1
N
hcf040.eps
Energy Study
A/L1
N
hcf041.eps
Load Study (no voltage measurement)
Single Phase IT
The logger has a galvanic isolation between the voltage
inputs and ground based signals like USB and mains
input.
Example: Used in Norway and in some hospitals. This
would be the connection at a branch circuit.
A/L1
N
hcf042.eps
Energy Study
A/L1
N
hcf041.eps
Load Study (no voltage measurement)
