Users Manual
22
To perform the Load/PE Leakage test do the following:
1
Connect the appliance and the test lead as
indicated on the tester, see also Figure 8.
2
LOAD/
LEAK
Start the test:
Single test - hold down the button and
release it after the second beep, before
you hear a third long beep.
Continuous test - hold down the button
and release it after you hear a third long
beep.
The display shows the test progress, see
the adjacent table.
3
LOAD/
LEAK
Continuous test only: stop the test.
4
MEM
Store the test result, if required.
Note
Accidental measurement of a defective unit may
trip a RCCB (residual current circuit breaker).

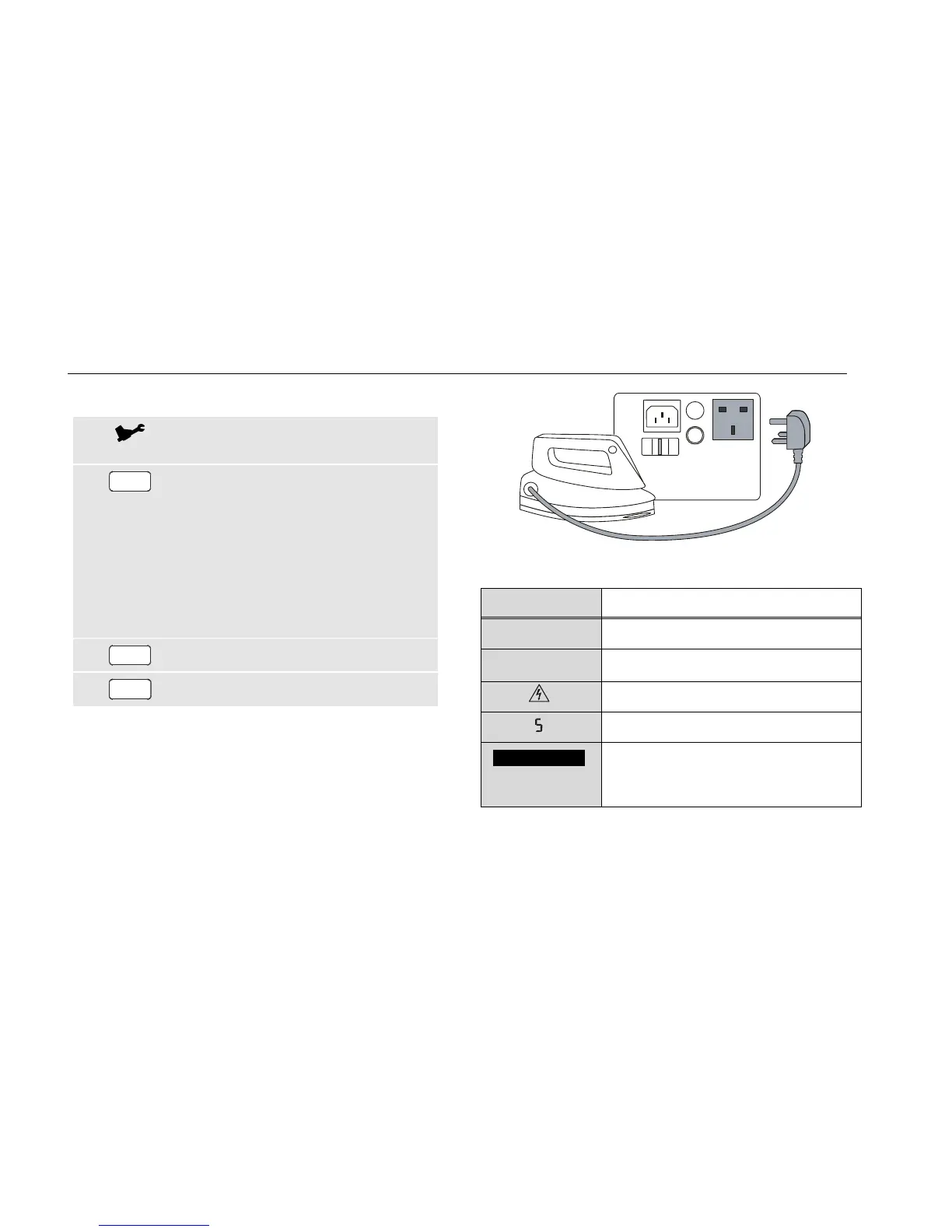

Figure 8. Load/Leakage Connections
DISPLAY EXPLANATION
LOAD The Load/Leak test has been selected.
- - -
The live test delay period is in progress
WARNING, a live test is going on!
seconds
The test time is counted down.
MULTI RESULTS
The results are being cycled through
the display during active test and after
the test time has elapsed.
