Fluke 8842A - Track Configuration; Timing Diagram for One A;D Cycle

8842A
Instruction Manual
5-10
f5-05.wmf

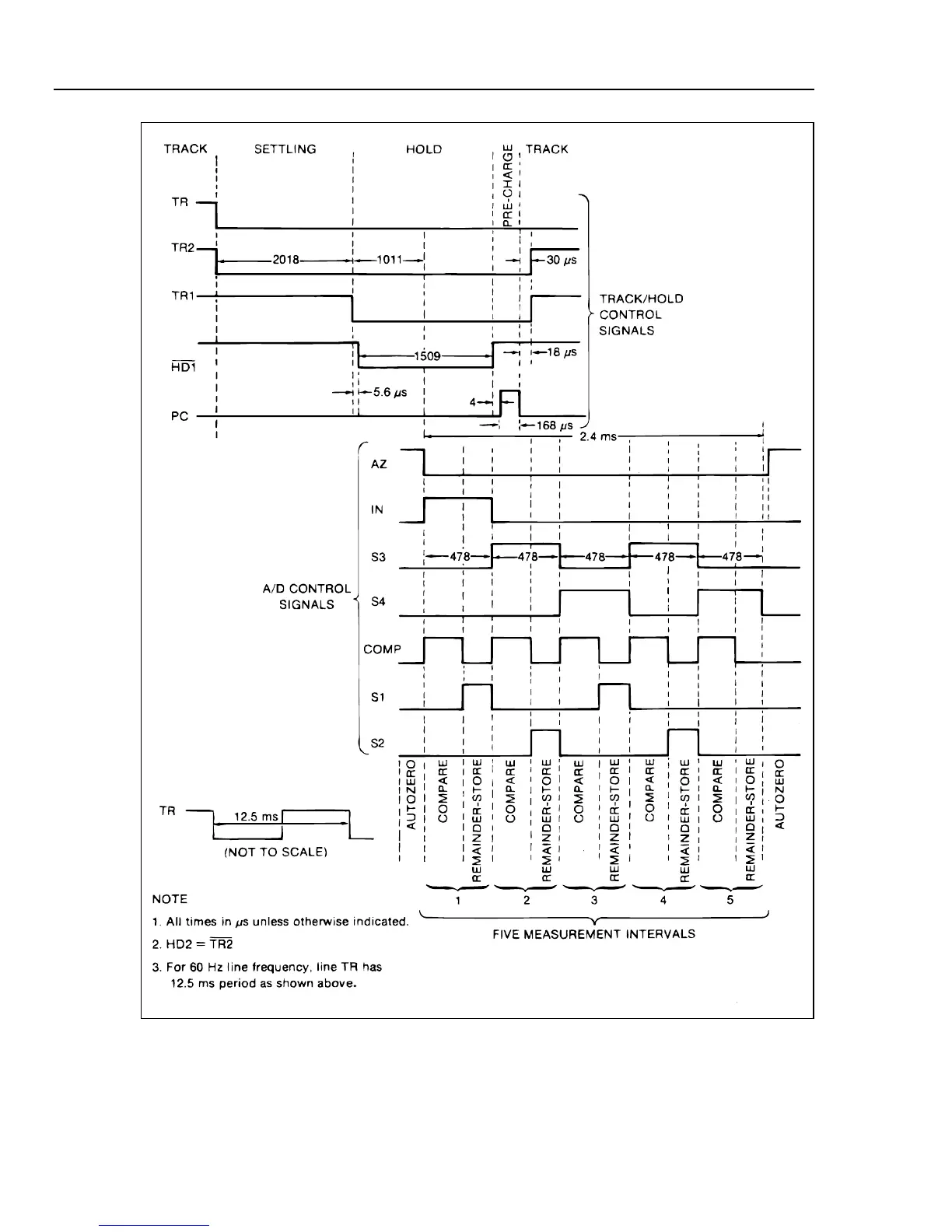

Figure 5-5. Timing Diagram for One A/D Cycle
5-10. Track Configuration
In the track configuration (Figure 5-4A), the T/H circuit functions as a non-inverting
buffer. The voltage on C308 tracks the scaled dc input voltage.
