2-5. Adjusting the Handle
The handle provides two viewing angles for bench-top use. To adjust its position, pull the
ends out to a hard stop (about 1/4 inch on each side) and rotate it to one of the four stop
positions shown in Figure 2-2. To remove the handle, adjust it to the vertical stop
position and pull the ends all the way out.
2-6. Rack Mounting Kits
You can mount the 8842A in a standard 19-inch rack panel using the accessory rack
mounting kits shown in Figure 2-3. To install the Single Rack Mount Kit, remove the
handle and handle mounting plates, and attach the rack ears with the screws provided
(Figure 2-4). The Dual Rack Mount Kit is installed similarly. (Both kits include mounting
instructions.)
The rear feet may be rotated 180 degrees to clear a narrow rack space.

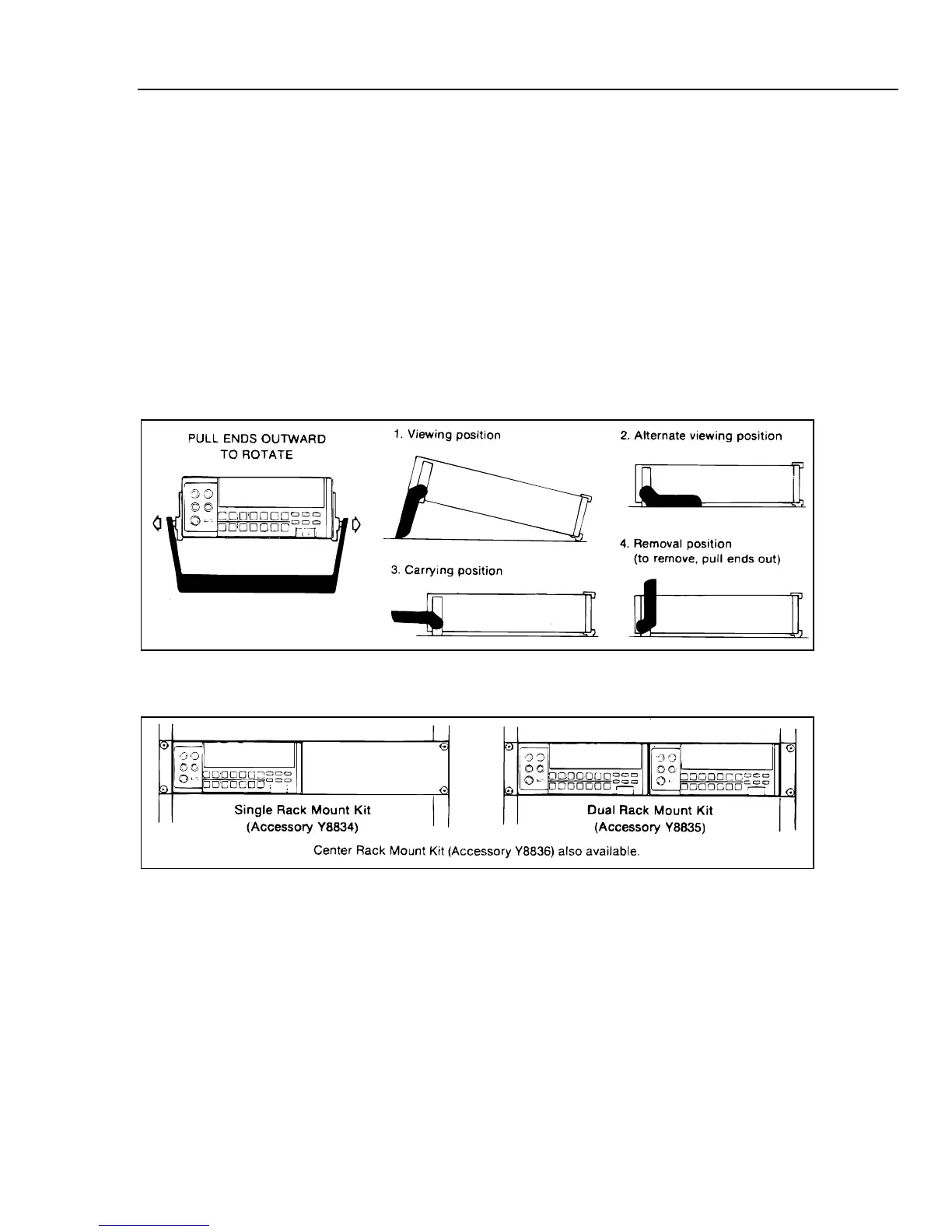

f2-02.wmf
Figure 2-2. Adjusting the Handle
f2-03.wmf
Figure 2-3. Rack-Mount Kits
