Fluke 8842A - A;D Calibration; Calibration Functions

8842A
Instruction Manual
6-12
f6-03.wmf

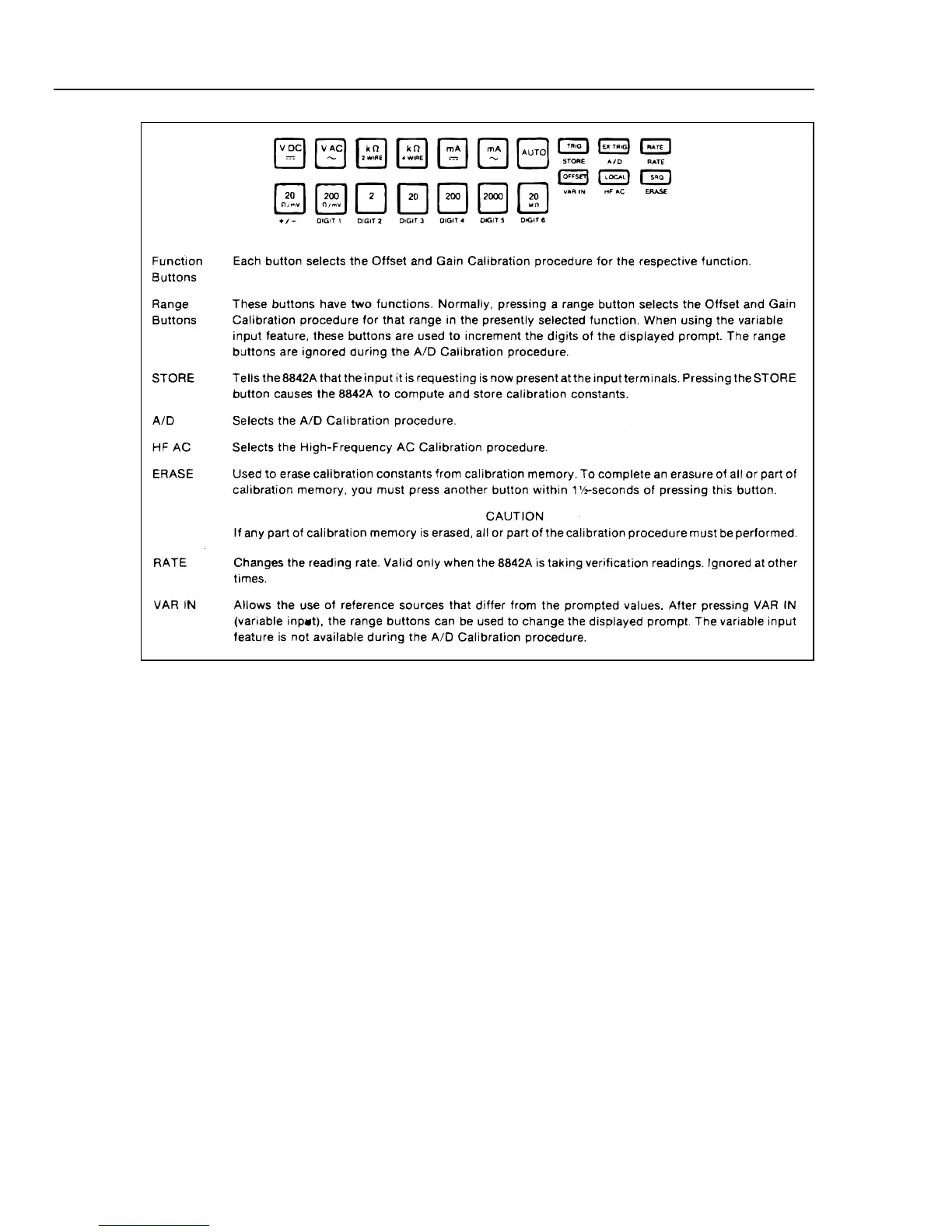

Figure 6-3. Calibration Functions
The following functions are inappropriate during calibration, and are therefore
unavailable:
• Offset
• Autoranging
• External Trigger
• Front Panel Trigger
• Front panel SRQ (Under local control)
• Diagnostic self-tests
6-12. A/D CALIBRATION
The A/D Calibration procedure calibrates the analog-to-digital converter for offset, gain
and linearity. The 8842A automatically selects the A/D calibration procedure when the
CAL ENABLE switch is first pressed. The procedure must be performed in its entirety,
and may not be performed in part. If the A/D calibration is discontinued prior to
completion, the last complete set of A/D calibration constants will be retained unchanged.
To perform A/D Calibration, proceed as follows:
1. Ensure the Initial Procedure has been completed. The 8842A then displays the
prompt for the first reference source, zero volts (i.e., a short).
