TROUBLESHOOTING
6
6-57
f6-13.wmf

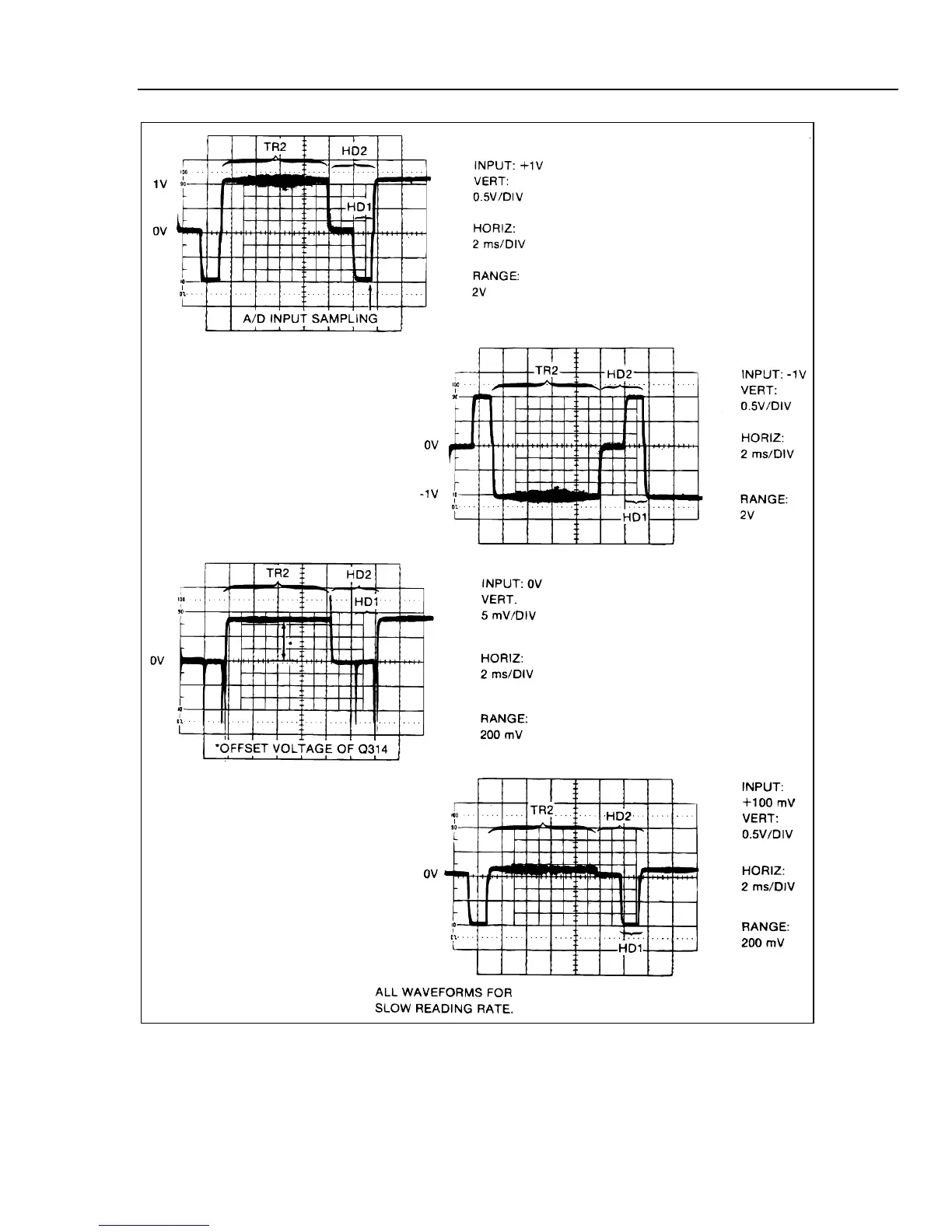

Figure 6-13. Typical Output Waveforms for Track/Hold Circuit (TP103)
To test whether the Ohms Current Source is actually being sourced out the HI and LO
OUTPUT terminals, select the 20 kΩ range and the 2-wire ohms function, connect a 10
kΩ resistor across the HI and LO INPUT terminals, and measure the voltage across this
resistor with another voltmeter. There should be a 1V drop across the resistor.

Fluke 8842A Specifications

General

Maximum Voltage	1000 V
Maximum Current	2 A
Operating Temperature	0°C to 50°C
Weight	2.5 kg
DC Voltage Range	100mV to 1000V
DC Current Range	0 to 2 A
AC Current Range	0 to 2 A
Frequency Range	20 Hz to 20kHz
Basic Resistance Accuracy	0.01%
Dimensions	216mm x 88mm x 280mm
Resistance Range	200 Ω to 20 MΩ
