Fluke 8842A User Manual

8842A
Instruction Manual
6-6
f6-01.wmf

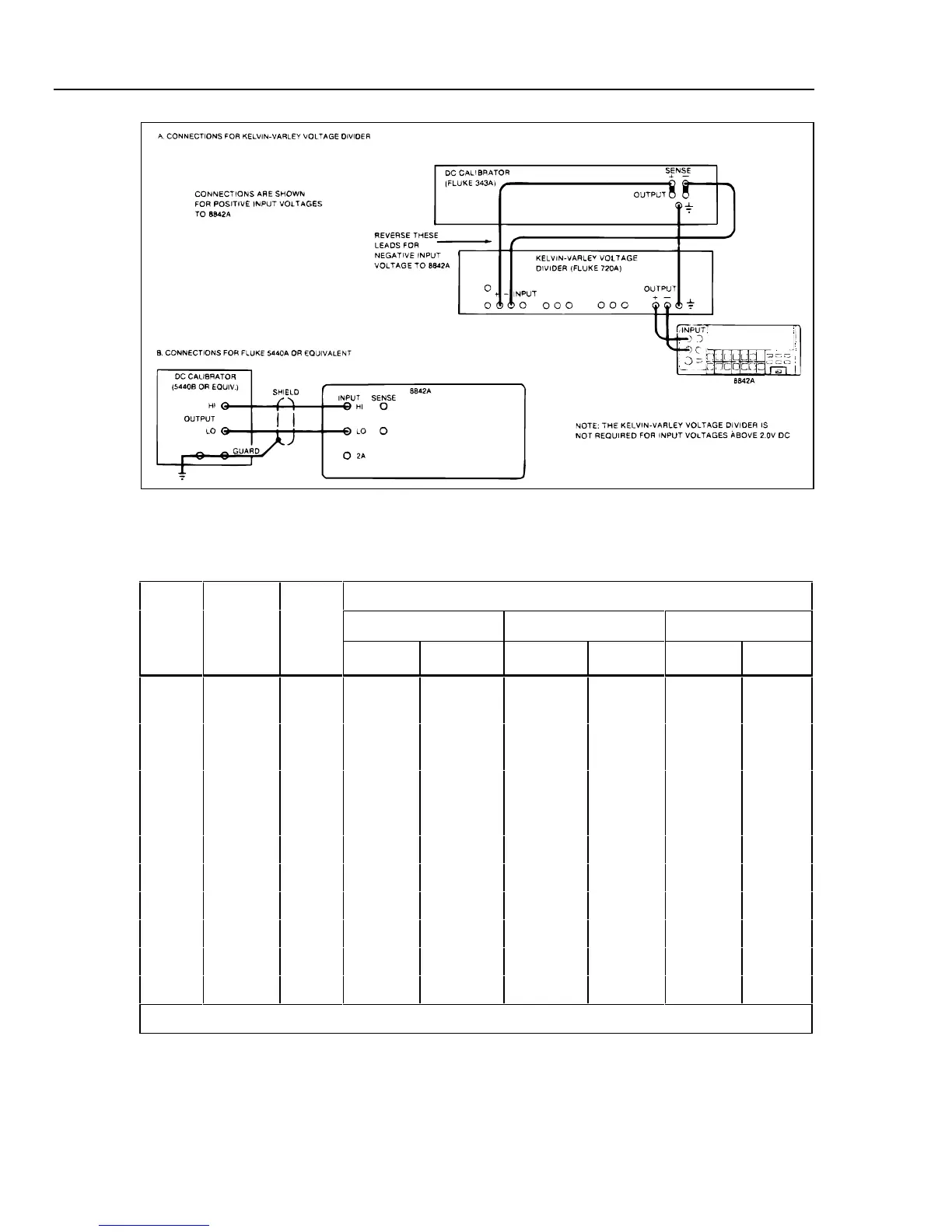

Figure 6-1. DC Calibration Connections
Table 6-2. DC Voltage Test
Displayed Reading
SLOW MEDIUM FAST
STEP RANGE INPUT
(V dc)
MIN MAX MIN MAX MIN MAX
A
1
20 mV 0V
(short)
-0.0030 +0.0030 -0.0050 +0.0050 -0.030 +0.030
B
1
200 mV 0V
(short)
-00.003 +00.003 -00.005 +00.005 -00.03 +00.03
C
1
2V, 20V,
200V,
1000V
0V
(short)
-2 counts +2 counts -4 counts + 4 counts -3 counts +3
counts
D 20 mV 10 mV +9.9963 +10.0037 +9.9943 +10.0057 +9.970 +10.030
E 200 mV 100 mV +99.993 +100.007 +99.991 +100.009 +99.97 +100.03
F 2V 1V +.99996 +1.00004 +.99994 +1.00006 +.9997 +1.0003
G 20V 10V +9.9995 +10.0005 +9.9993 +10.0007 +9.997 +10.003
H 200V 100V +99.995 +100.005 +99.993 +100.007 +99.97 +100.03
I 1000V 1000V +999.95 +1000.05 +999.93 +1000.07 +999.7 +1000.3
1. Relative to high-quality short stored using OFFSET feature.

Fluke 8842A Specifications

General

Maximum Voltage	1000 V
Maximum Current	2 A
Operating Temperature	0°C to 50°C
Weight	2.5 kg
DC Voltage Range	100mV to 1000V
DC Current Range	0 to 2 A
AC Current Range	0 to 2 A
Frequency Range	20 Hz to 20kHz
Basic Resistance Accuracy	0.01%
Dimensions	216mm x 88mm x 280mm
Resistance Range	200 Ω to 20 MΩ
