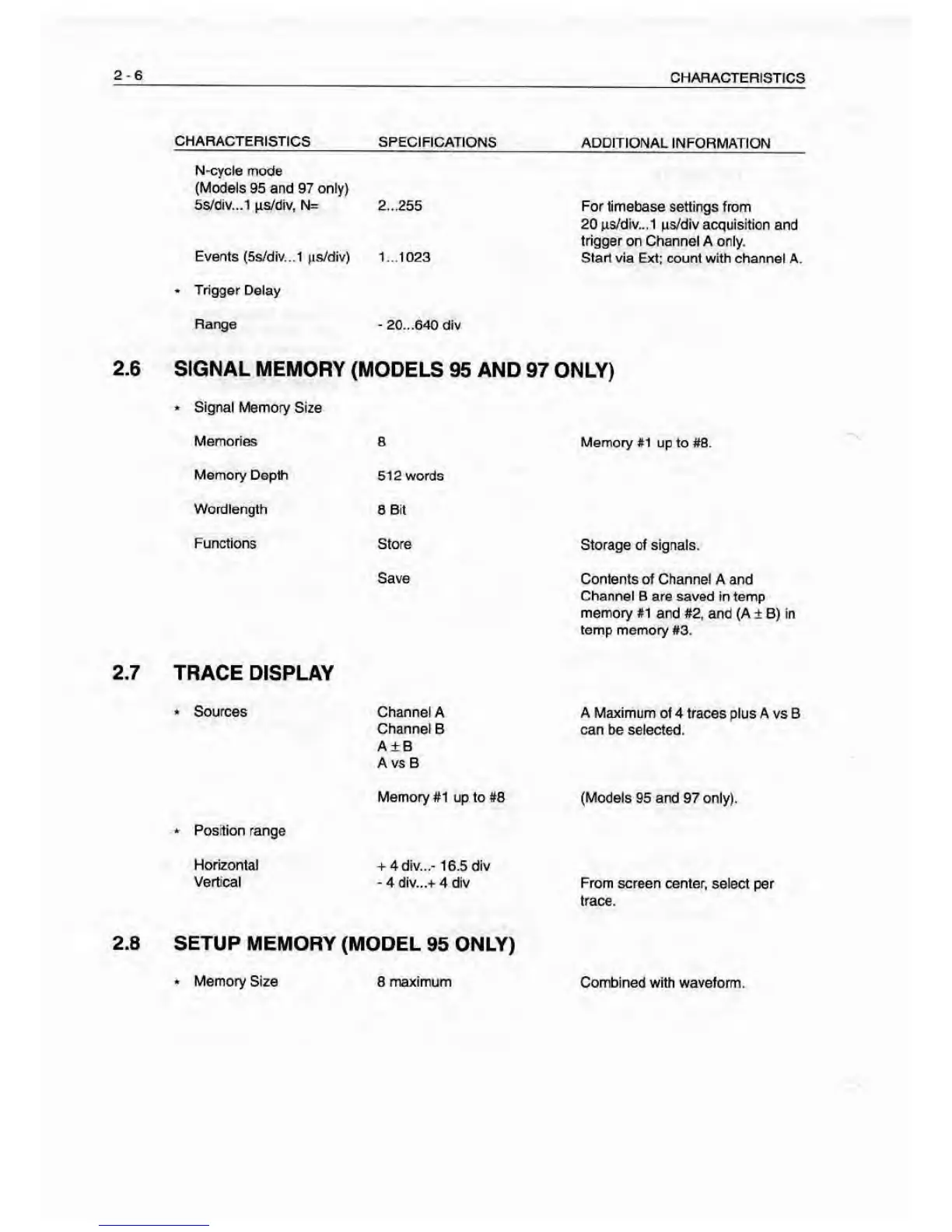

Fluke 93 User Manual

2-6
CHARACTERISTICS
CHARACTERISTICS
SPECIFICATIONS
ADDITIONAL
INFORMATION
N-cycle
mode
(Models 95 and 97 only)
5s/fliv...1 ^s/dJV, N=
2...255 For
tlmebase settings from
20^s/dfv...1 ps/div acquisition
and
trigger on Channel A only.
Events
(5s/div...1 ys/div) 1...1023 Start via
Ext; count with channel
A,
•
Trigger
Delay
Range •20...
640 div
2.6
SIGNAL MEMORY
(MODELS 95 AND 97
ONLY)
•
Signal Memory
Size
Memoiies 8
Memory *1 up to #8.
Memory Depth
512 words
Wordlength
6 Bit
Functions
Store Storage
of signals.
Save
Contents of Channel A and
Channel B are saved in temp
memory #1 and
#2, and (A ± B) in
temp memory
#3,
2.7 TRACE DISPLAY
•
Sources
Channel
A A Maximum of 4 traces
plus A vs B
Channel B
A±B
A vs B
can be selected.
Memory #1 up to #8 (Models
95 and 97 only).
*
Position range
Horizontal
+ 4dfv...- 16.5 div
Vertical
•
4 (jlv...+ 4 div
From screen center, select per
trace.
2.8 SETUP
MEMORY (MODEL
95 ONLY)
•
Memory
Size 8 maximum
Combined with waveform.
