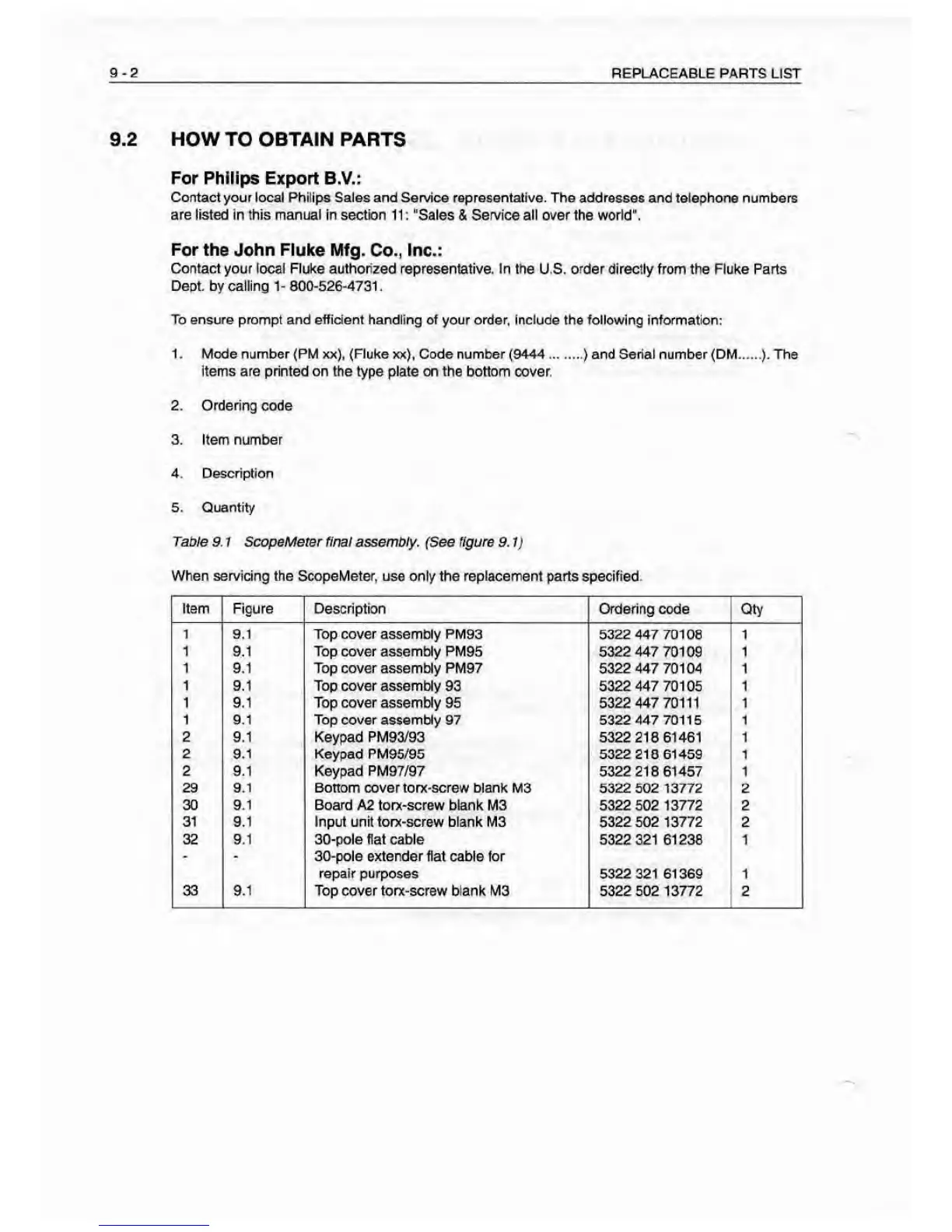

Fluke 93 User Manual

9-2
REPLACEABLC PARTS UST
9.2 HOW TO OBTAIN PARTS
For Philips Export B.V.:
Contact your local Philips Sal os and Service ropreeentative. The addresses
and
telephone
numbers
are listed in this manual In section 11: "Sales
&
Service all
over the world".
For the John Fluke Mfg.
Co., Inc.:
Cor>tactyouf local Fluke authorized
representative. In the U,S.
order
directly from the Fluke Parts
Deol. by catling
1- 800-526-4731.
To ensure prompt and efficient handling of your order, Include the following Information:
1 . Mode number {PM xx), {Fluke xx), Code number (9444
)
and
Serial
number (DM
}.
The
items are printed on the type plate on the bottom
cover.
2. Ordering code
3. Item number
4. Description
5. Quantity
Tat)le 9. 1 ScopeMeter final assemoiy.
(See
figure
9.1)
When servicing the ScopeMeter, use only the replacement parts specified.
Item Figure Description
Ordering code Qty
1 9.1 Top cover assembly PM
93 5322 447 70108 1
1 9.1 Top cover assembly PM95
5322
447
70109 1
1 9.1 Top cover assembly PM97
5322
447 70104
1
1 9.1 Top cover assembly
93 5322 447 70105 1
1
9.1
Top cover
assembly 95 5322 447 70111 1
1 9,1
Top
cover
assembly 97 5322 447 70115 1
2 9,1 Keypad PM93/93 5322 218 61461 1
2 9.1 Keypad
PM95/95 5322 218 61459 1
2 9.1 Keypad PM97/97
5322 218 61457 1
29 9.1 Bottom cover to rx -screw blank M3 5322
502 13772 2
30
9.1
Board A2 torx-screw blank M3 5322 502 13772
2
31 9-1 Input unit torx-screw blank M3 5322 502 13772
2
32 9.1 30-pole flat cable 5322
321
61238
1
- -
30-pole extender flat cable for
repair purposes
5322 321 61369 1
33 9.1
Top
cover torx-screw blank
M3 5322 502 13772 2
