7-42
CORRECTIVE MAINTENANCE
7.2.5 Replacement
of parts
7.2.5. 1 Replacing
parts in the battery compartment

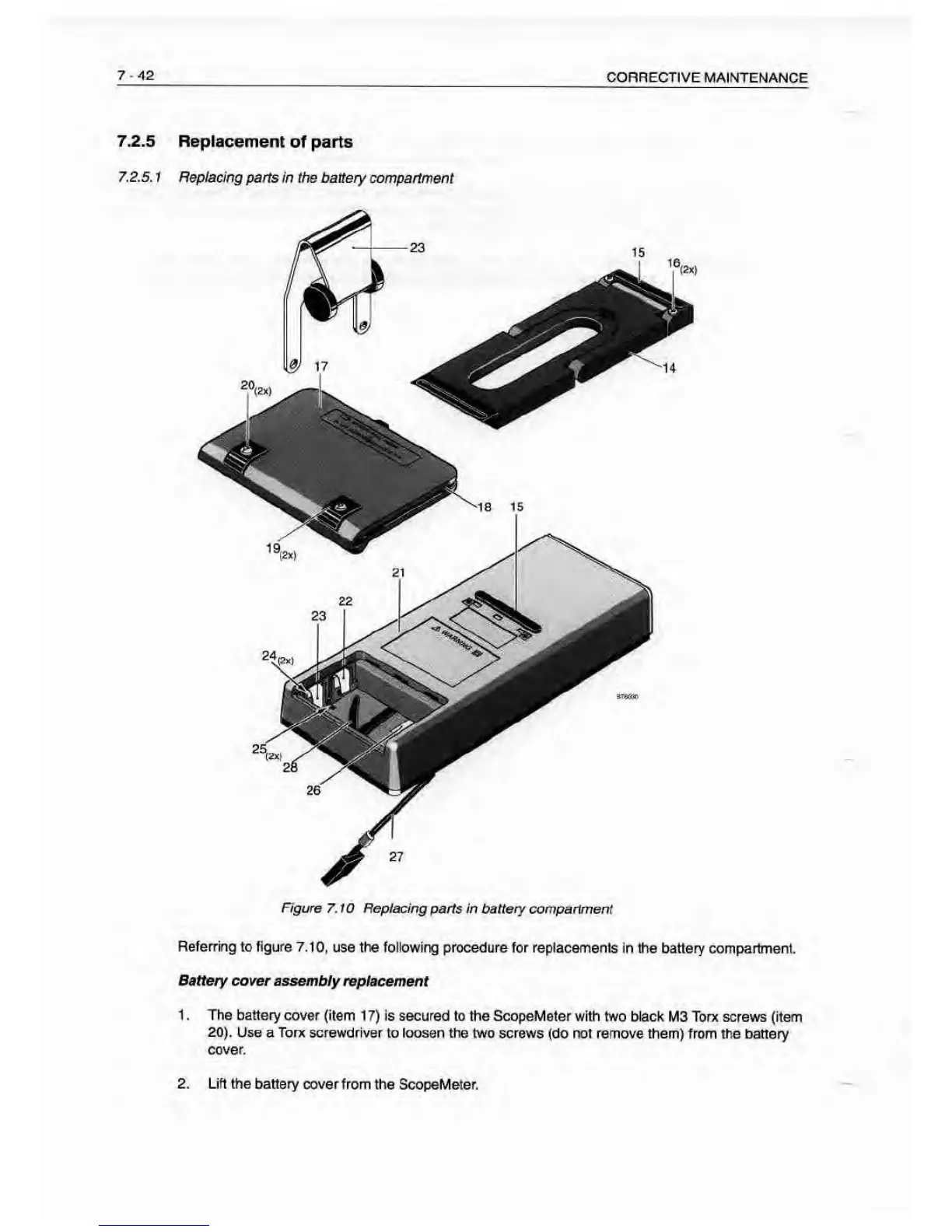

Figure 7. fO Replacing
parts
in
battery compartment
Referring to figure
7.10, use the followtng procedure for replaoernenls In
the battery compartment.
Battery co^er assembly replacement
1 . The battery cover (item
1
7)
is secured to the ScopeMeter with two black
M3 Torx screws (Item
20). Use a Torx screwdriver to loosen the two screws
(do not remove them) from the banery
cover.
2. Lift th e batte ry cover
from the ScopeMete r.
