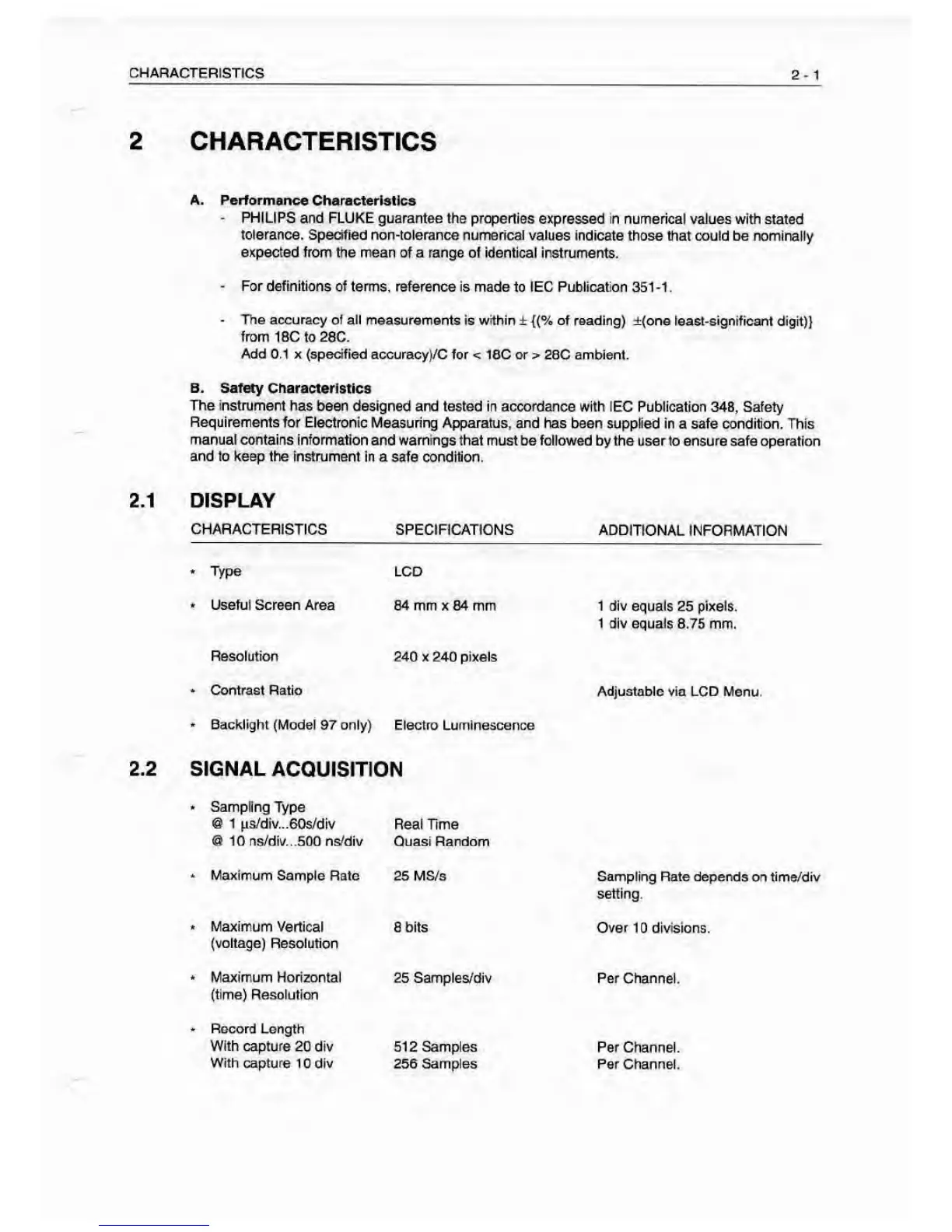

CHARACTERISTICS
2-1
2
CHARACTERISTICS
A. Performance
Characteristics
PHILIPS and FLUKE guarantee the properties
expressed in numerical values with stated
tolerance. Specified non-tolerance numerical values
indicate those that coutd be nomir^lly
expected
from the mean of a range of identical instruments.
For definitions
of terms, reference is made to lEC Publicatjon 351-1
.
The accuracy of all measurements
Is within i: {(Si of reading) ±(one least-significant
digit)}
from 18C to
28C.
Add 0.1 X (specified accuracy
)/C for
<
16C or
>
28C
ambient.
B. Safety Characteristics
The Instrument has
been designed and tested in accordance with
I EC Publication 348, Safety
Requirements for Electronic
Measuring Apparatus, and has
been
supplied
in a safe condition. This
manual contains Information
and
warnings
that must be followed by the user to ensure safe
operation
and to keep the instrument in
a
safe
condition.
2.1 DISPLAY
CHARACTERISTICS
SPECIRCATtONS ADDITIONAL
INFORMATION
Type
LCD
>
Useful Screen Area
64 mm x 64 mm 1 div equals
25
pixels.
1 div equals 8.75
mm.
Resolution
240 x 240 pixels
Contrast Ratio
Adjustable via LCD
Menu.
Backlight (Model
97
only)
Electro Luminescence
2.2 SIGNAL ACQUISITION
Sampling
Type
@ 1 ps/div...60s/dlv
@10 ns/div...500 ns/di
V
Real Time
Quasi Random
Maximum Sample Rate 25 MS/s
Sampling Rate depends on tims/div
setting.
-
Maximum Vertical
(voltage) Resolution
6 bits Over 10
divisions.
*
Maximum Horizontal
(time)
Resolution
25 Samples/div Per Channel-
-
Record Length
With capture
20 div 512 Samples
Per Channel.
With capture
1 0 div 256 Samples Per
Channel.
