Fluke CableAnalyzer DSP-4000 Series User Manual

Getting Started
Strap and Bail
2
2-23
Strap and Bail

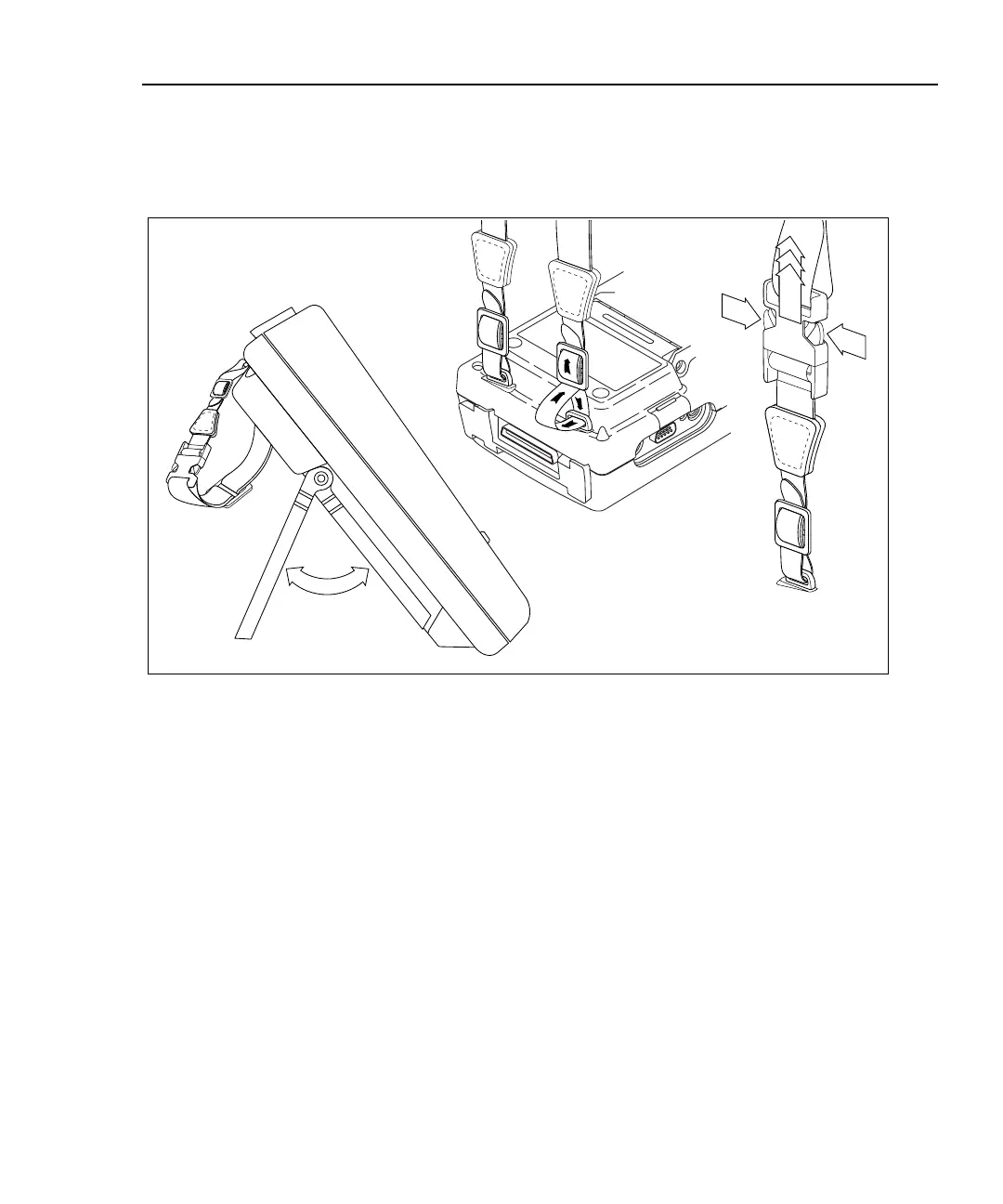

The test tool and the remote have a strap and a bail. Figure 2-10 shows how to
attach the strap and open the bail.
oy07f.eps
Figure 2-10. Attaching the Strap and Opening the Bail
Rotary Switch
The following paragraphs summarize the modes you can select with the rotary switch on
the main unit.
Off
Turns the test tool off. Setup information and test results saved via the S key
are stored in nonvolatile memory.
