CableIQ Qualification Tester
Users Manual
36
The cabling is connected to a device, such as a television,
CATV service, VCR, DVD player, satellite dish, or antenna.
The device is turned off or its signal is outside the tester’s
detection band (40 MHz to 150 MHz).
The cabling cannot be qualified because length cannot be
determined. The device interferes with reflections used for
length measurements.
Some splitters may also appear as devices.
The cabling is connected to an active signal source that is
within the tester’s detection band (40 MHz to 150 MHz),
such as a television, CATV service, VCR, DVD player,
satellite dish, or antenna.
The cabling cannot be qualified because length cannot be
determined. The device interferes with reflections used for
length measurements.

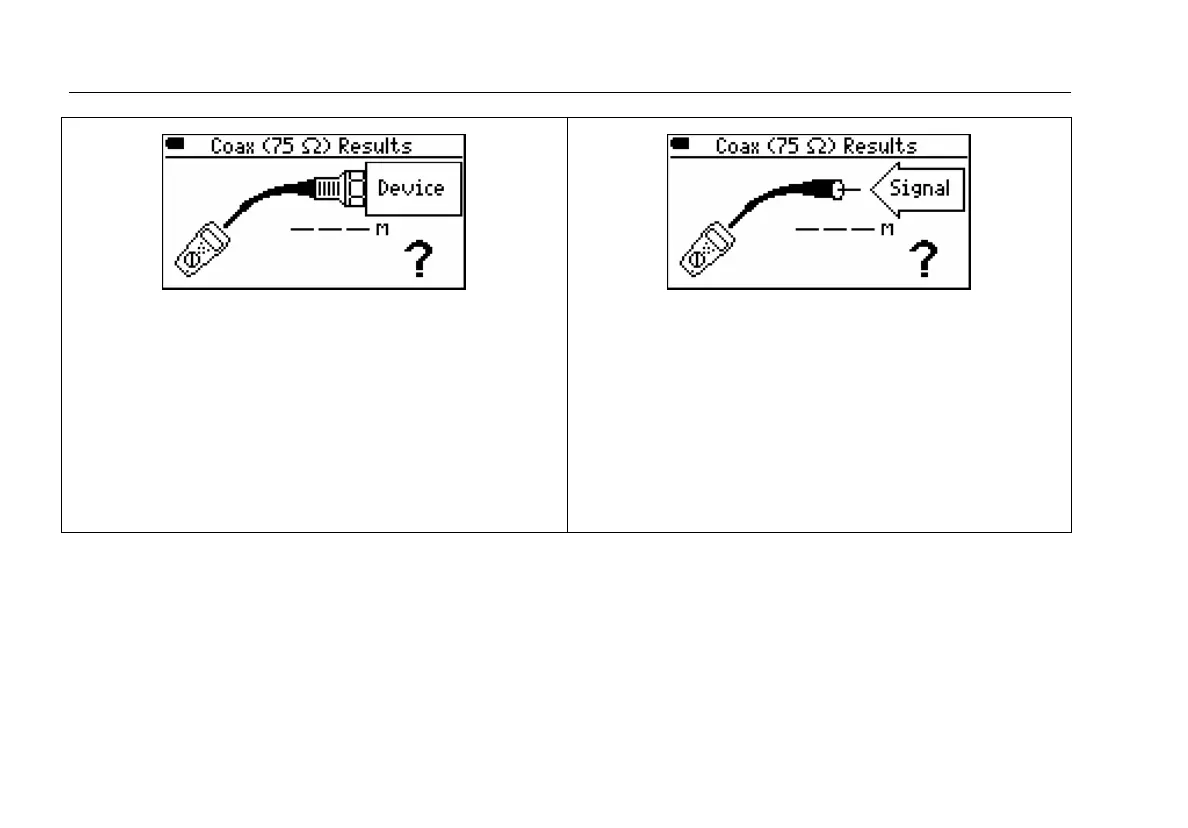

Figure 14. Autotest Results for Coaxial Cabling (cont.)
