Fluke CableIQ - Discover Mode Results for Twisted Pair Cabling

CableIQ Qualification Tester
Users Manual
38
Discover Mode Results for Twisted Pair Cabling
avv46f.eps

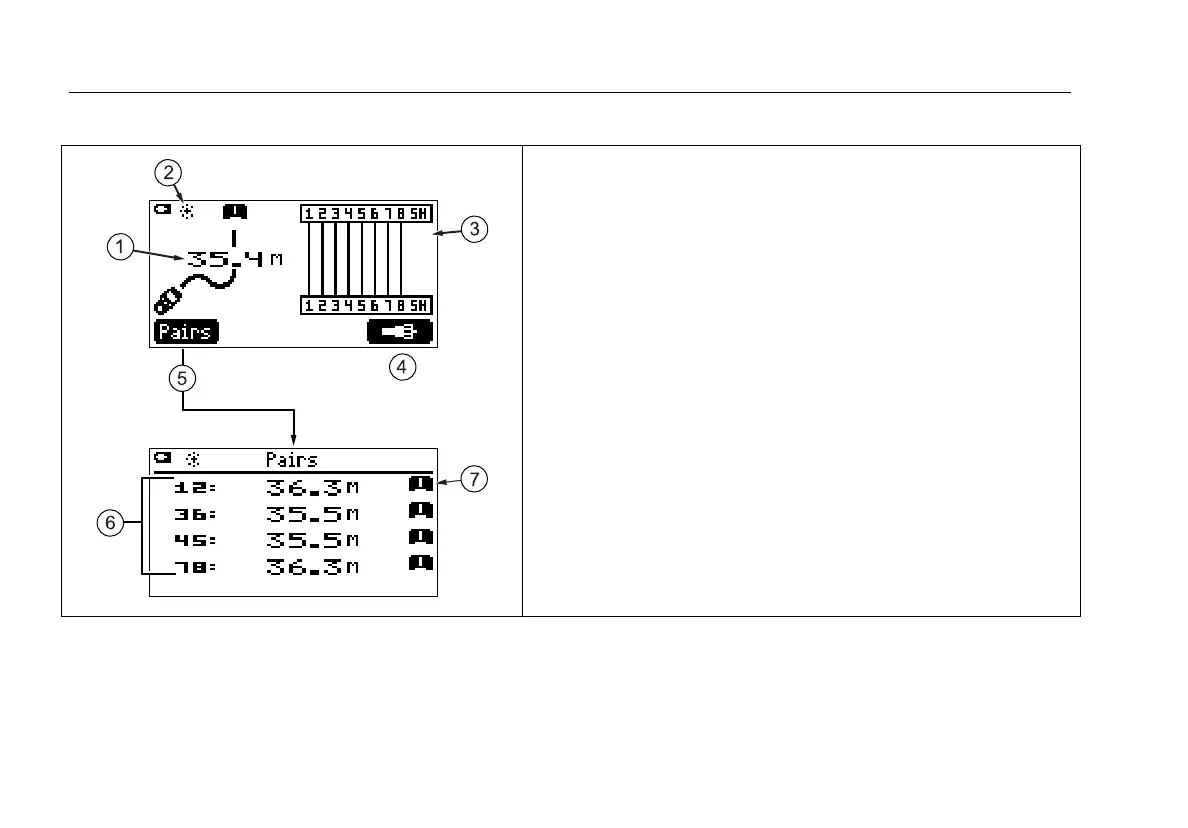

A Length to the wiremap adapter. The length of the shortest
pair is shown.
B Test activity indicator. The "+" appears if the USB port is
connected to a PC.
C Wiremap for good twisted pair cabling with a wiremap
adapter attached. See Figure 10 on page 25 for other
wiremap descriptions.
D Press K to test 75 Ω coaxial cabling.
E Press J to see length and termination results for individual
pairs
F Individual wire pairs and their lengths.
-continued-
Figure 15. Discover Mode Results for Twisted Pair Cabling
