CableIQ Qualification Tester
Users Manual
24
Autotest Results for Twisted Pair Cabling
The Autotest shows results in three levels of detail, as
described in Figures 9 through 12.
avv15f.eps
A Overall result for the Autotest.
B Overall result for each Autotest type:
F: The cabling qualifies for the application. If a far-end adapter is
not connected, the tester assigns a i result because the wiremap
cannot be completely verified.
f: The cabling does not qualify for the application.
i: Results are for informational purposes only, not for qualification.
The cabling cannot be completely qualified for the application
because the wiremap results are incomplete (wiremap adapter not
used).
Use
A D to scroll through the tests.
C Press J M or H to see summary results for the highlighted
test. To see details for a test parameter, use A D B C to
highlight the parameter; then press J M or H.
D Press K S to save the results.

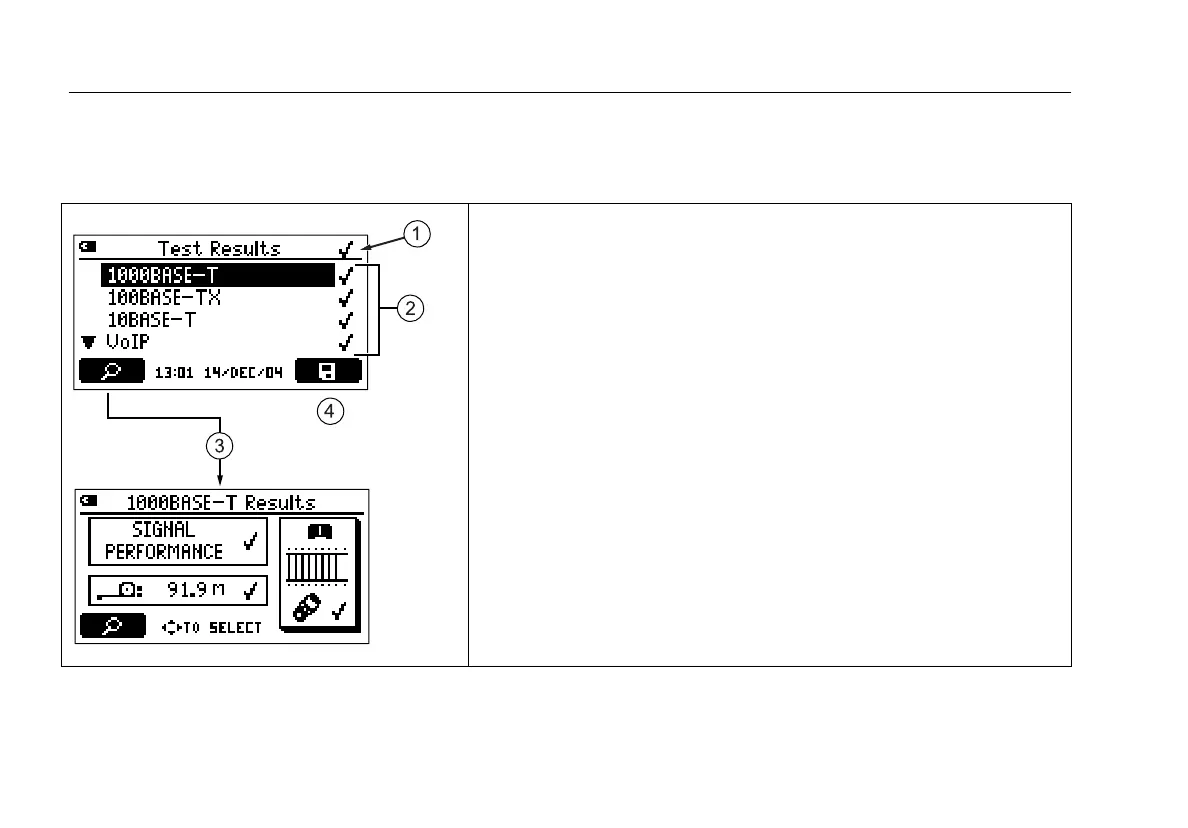

Figure 9. Autotest Summary Screens
