Testing for Continuity
53
DISCOVER
AUTO
TEST
DIAG
TONE
SETUP
RESULTS
SHIFT
avv37f.eps

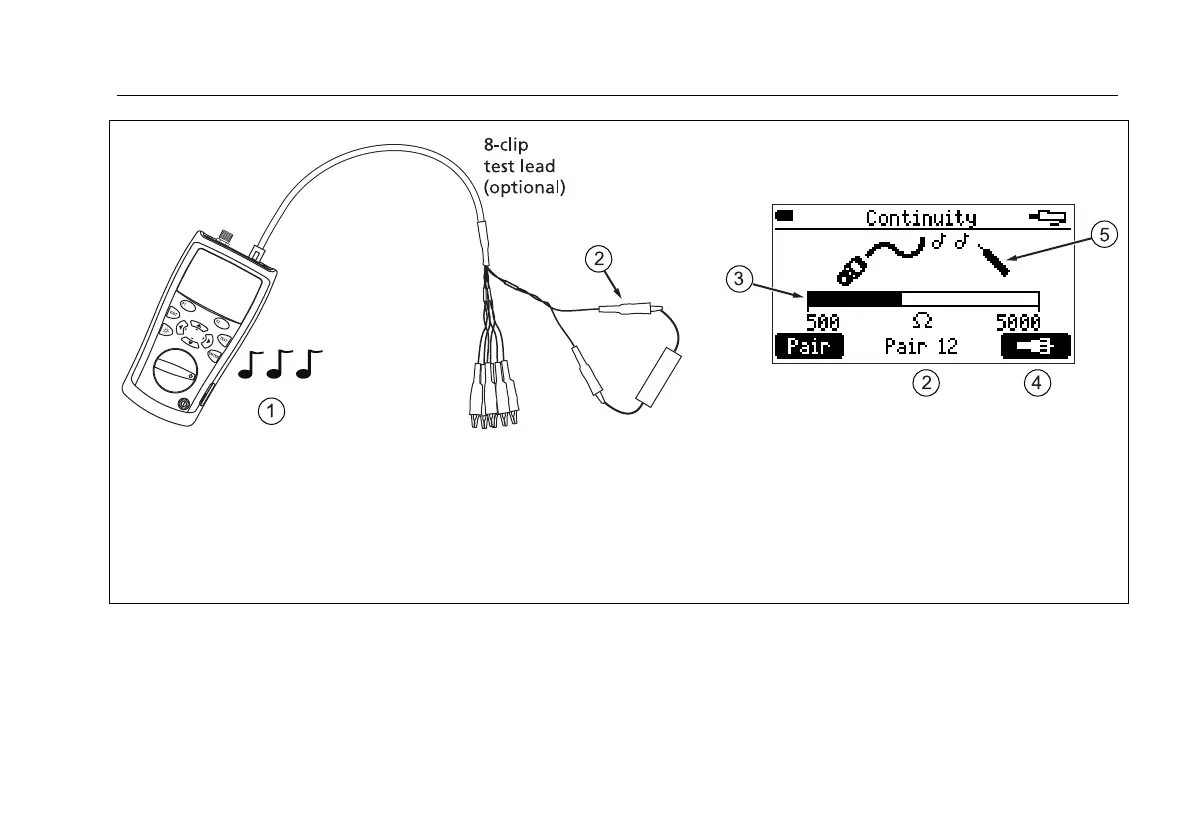

A The tester’s beeper is silent for resistances above
about 5000 Ω. The beeper’s tone and rhythm
increase as resistance decreases.
B Pair 12 (green) on the 8-clip test lead. To change
the pair used for testing continuity, press J Pair.
C Resistance scale. This example shows about 2.3 k.
D Press K c to test for continuity between the coaxial
connector’s shield and center conductor.
E The continuity function works with a tone probe. See “Using
the Continuity Toner” on page 54.
Figure 23. Testing for Continuity
