Testing Speaker Cabling
59
avv39f.eps

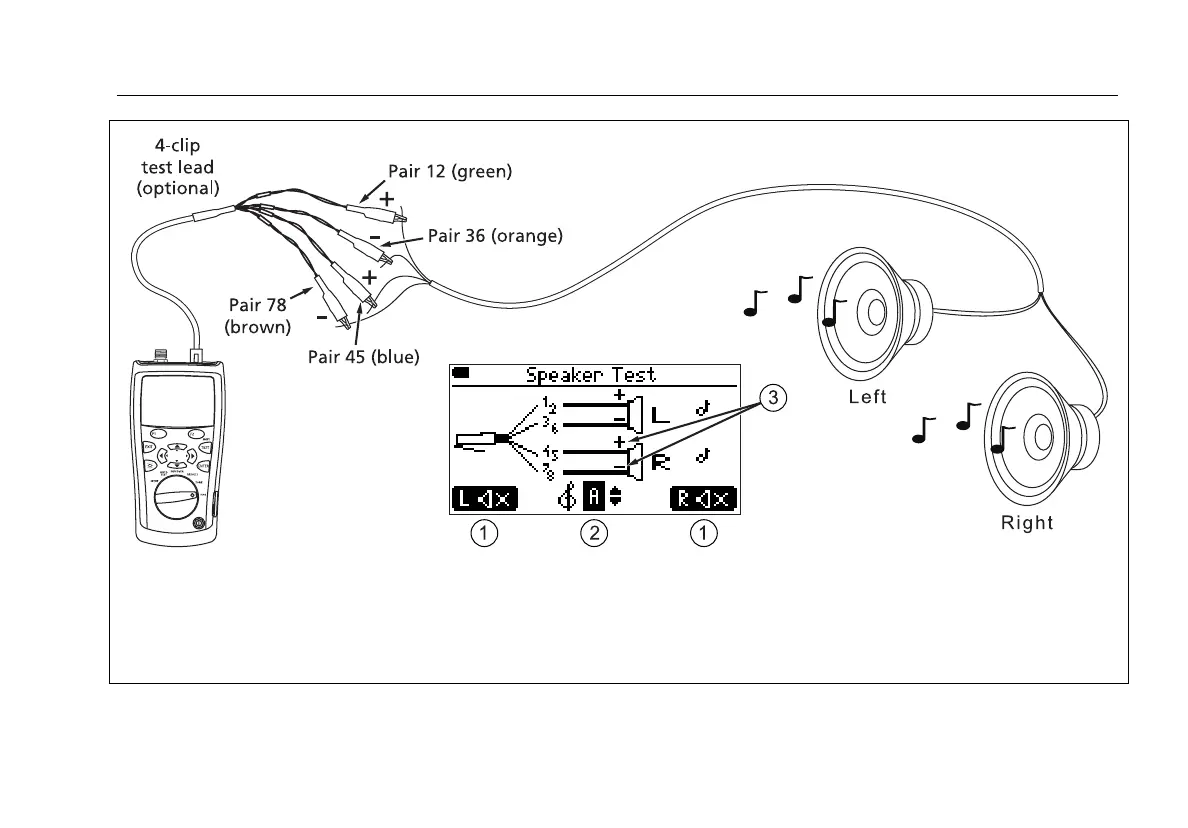

A Press J L and K R to turn the left and right
speakers on and off.
B Press A D to change the note played over the
speakers.
C The phase of the signal applied to the speaker. To
change the phase of the signal going to the right
speaker, press
B C.
Figure 25. Testing Speaker Cabling
