Fluke MICROSCANNER User Manual

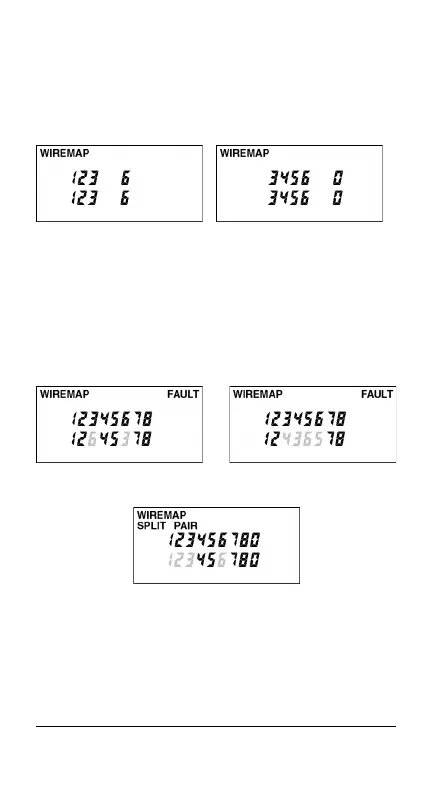

MICROSCANNER ENGLISH - 9
10BaseT Cable Token Ring
unshielded shielded
(2 pair, 4 wires) (2 pair, 4 wires)
Below are examples of wiring faults. The FAULT
indicator will be displayed and the numerical wire
indicators will blink.
Reversed: Crossed:
Pair 3 - 6 Pairs 4 - 5, 3 - 6
Split Pair
Note: If a cable is wired correctly, pin-to-pin, but
there is a split pair, Wiremap will display SPLIT
PAIR. For example a wire from the 1 - 2 pair
could be twisted with a wire from the 3 - 6 pair.

Fluke MICROSCANNER Specifications

General

Length Measurement	Yes
Wiremap	Yes
Wiremap Display	Graphical
Tone Generation	Yes
Cable Types	Twisted Pair
Display	LCD
Power Source	Battery
Fault Types	Open, Short, Split Pair
Connectors	RJ45
