Fluke MICROSCANNER User Manual

MICROSCANNER ENGLISH - 14

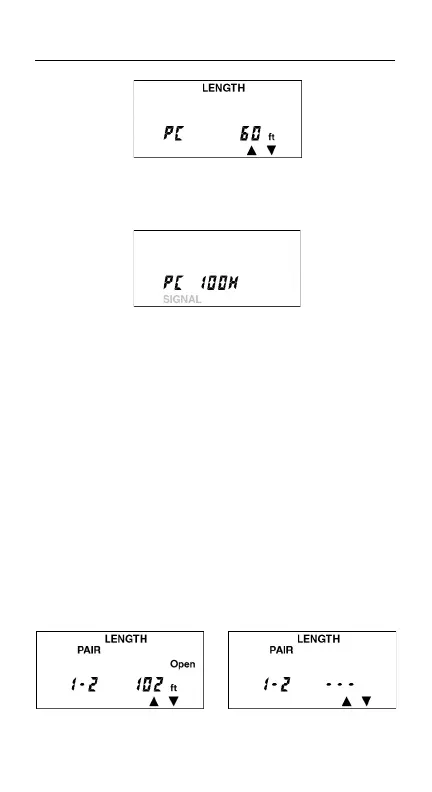

3. When MICROSCANNER displays PC and
the cable length, press the MODE key to
activate the blinking Hub light.
Pair Length
If ▲▼ are displayed, you will be able to show
detailed pair information for each standard
conductor pair.
1. Press the ▲ key to display Pair 1 - 2 length.
2. Press the ▲ key again to display the other
pair combinations.
The pair length is not measured if the cable is too
long, connected to a hub, or a wiremap adapter is
used.
Pair 1 - 2 Length Pair 1 - 2
not measurable

Fluke MICROSCANNER Specifications

General

Length Measurement	Yes
Wiremap	Yes
Wiremap Display	Graphical
Tone Generation	Yes
Cable Types	Twisted Pair
Display	LCD
Power Source	Battery
Fault Types	Open, Short, Split Pair
Connectors	RJ45
