MICROSCANNER
ENGLISH - 10
If the wire does not go to the far end, the
numerical indicator for the open will be left blank.
The word Open will be displayed. Shorted pairs
are indicated with a connecting bracket, and the
word Short will be displayed.

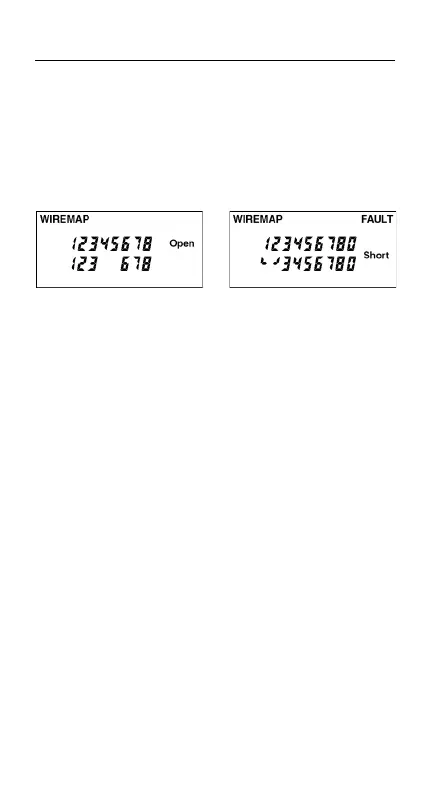

Open: Pair 4 - 5 Short: Pair 1 - 2
When the wiring fault includes shorted or
swapped non-pair pins (e.g. non-pair pins 1 - 3),
the wiremap will display dashes for those
numerical wire indicators.
Patch Cable Wiremap
The Wiremap function can also be used to verify
patch cables.
1. Simply plug the two ends of a cable into the
two modular 8 jacks (MAIN and LOOP
BACK) on MICROSCANNER.
2. To display the Wiremap screen, press the
MODE key until the word WIREMAP
appears on the screen.
If there are any miswires, the number of the faulty
wire will blink.
