Gas Flow Analyzer
Test Setup
15
Test Setup
Use the airway port for ventilator testing. Use a
test lung to set up a test that measures ventilator
parameters in bi-directional or uni-directional
modes. Fluke Biomedical recommends the bi-
directional mode.
Bi-directional Flow Mode
For bi-directional flow connections, see Figure 5.
1. Use a Y-piece adapter to connect the
ventilator to the flow inlet on the Analyzer.
2. Use a standard breathing hose to connect to
the exhaust port on the Analyzer.
The Analyzer shows the flow of gas
delivered by the ventilator.

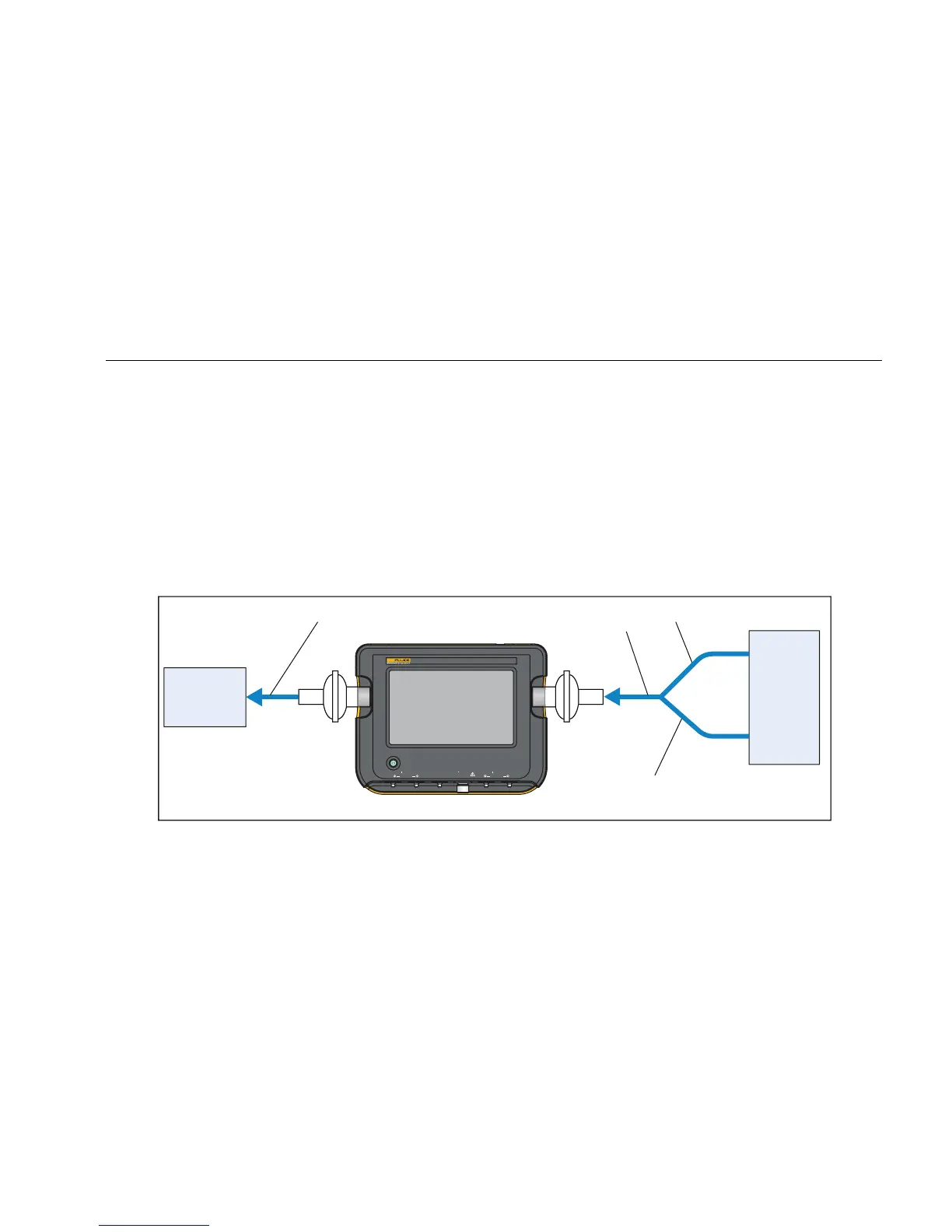

Figure 5. Bi-Direction Flow Mode Connections
FLOW
INLET
±
300 lpm
FLOW
EXHAUST
ULTRA
LOW FLOW
LOW
PRESSURE
ULTRA
LOW PRESSUR E
0 TO 10 mbar
HIGH
PRESSURE
750 ml/min 160 m ba r0.8 TO 10 bar
GAS FLOW ANALYZER
VT900
