FS-MG7
Automatic Frequency Hopping Digital System
Website
4
3.Getting Started
Prior to operations, please install the battery and connect devices according to the sequence and guide as described
in this chapter.
3.1 Transmitter Anttena
3.2 Receiver and Servo Installation
The transmitter has a built-in antenna. When the transmitter starts to work, the antenna automatically
operate, without additional operations.
Make sure that the receiver is mounted in an appropriate location within the model, to ensure a stable signal,
maximum range and to mitigate external interference, follow these guidelines:
Pay attention to the following when installing the receiver:
1. Make sure the receiver is not installed near motors or other sources of electrical noise.
2. Keep the receivers antenna away from conductive materials such as carbon or metal. To ensure normal function
make sure there is a gap of at least 1cm between the antenna and the conductive material.
Caution • To prevent damage do not power on the receiver during installation.
Steering Servo
Throttle Servo
Aux Channel Servo
Aux Channel Servo
Aux Channel Servo
Aux Channel Servo
Aux Channel Servo
CH1
CH3
CH2
CH4
CH5
CH6
CH7

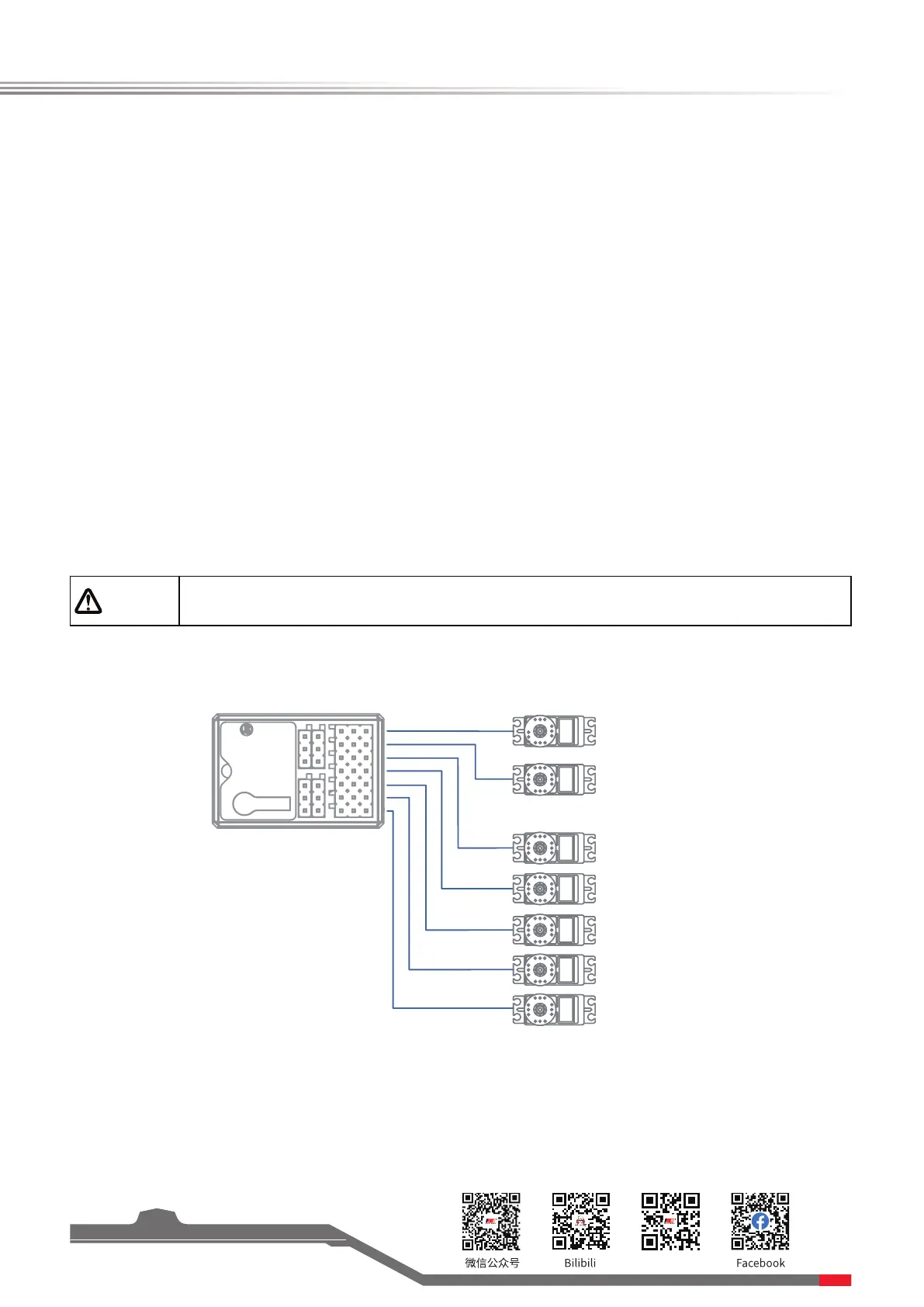

Connect the servos to the receiver according to the digram below.
To Next Page
