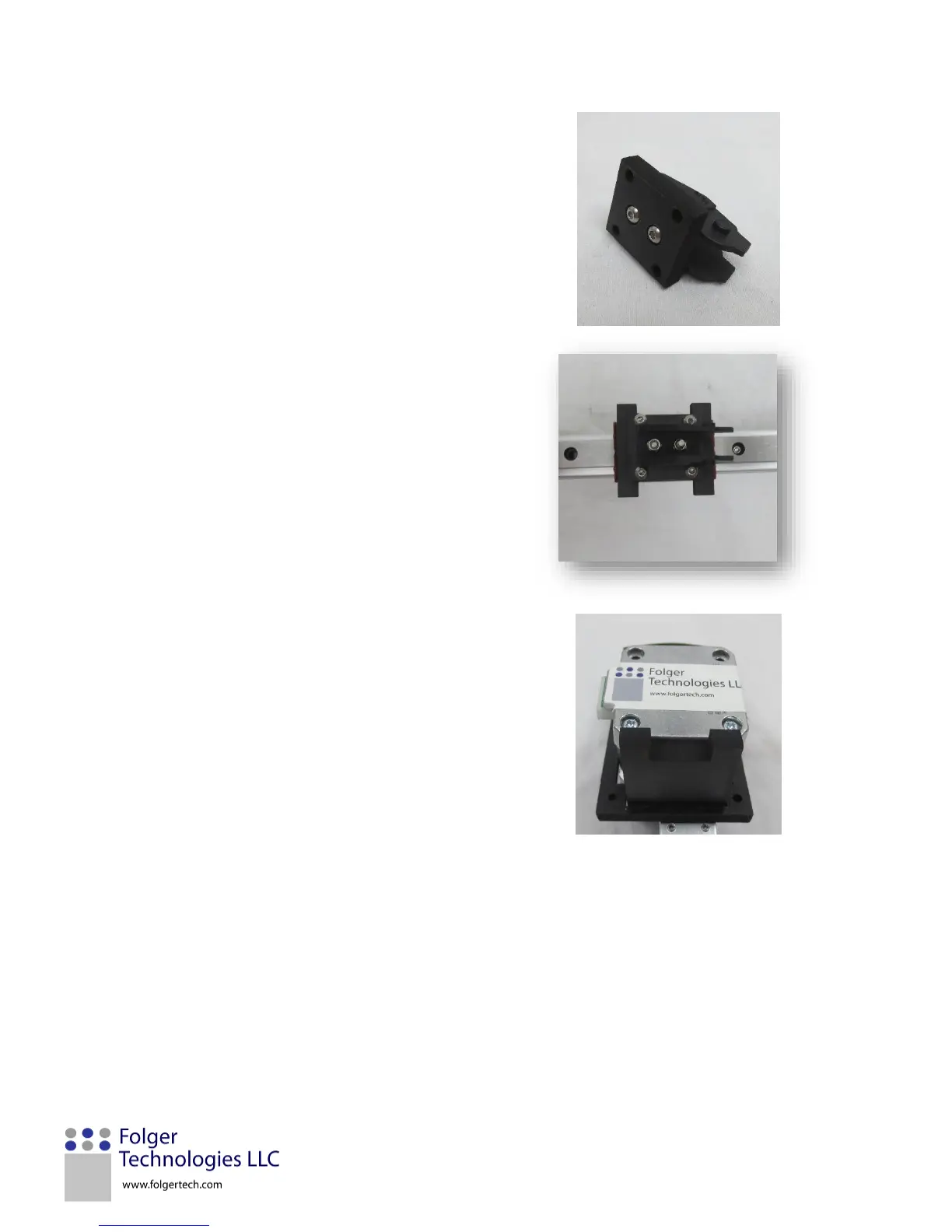

5. Take the FT13 and insert two M3x12mm
screws into the two center holes. Slide the
Male cable chain end onto the two screws and
finish them off with two M3 Nylocks. Note:
Makes sure the male chain is centered and
that the four mounting holes are not covered.
6. Take four M3x16mm screws and insert them
through the four holes on the FT13. Then
through four holes of the FT27. Make sure the
tabs perpendicular to the male cable chain.
Place this over the X slide on the gantry and
tighten the M3 screws down.
7. Insert FT14 into the two slots on the FT11.
Remove the two top screws on the back of the
stepper motor.
