FT-5 User Manual Page 40

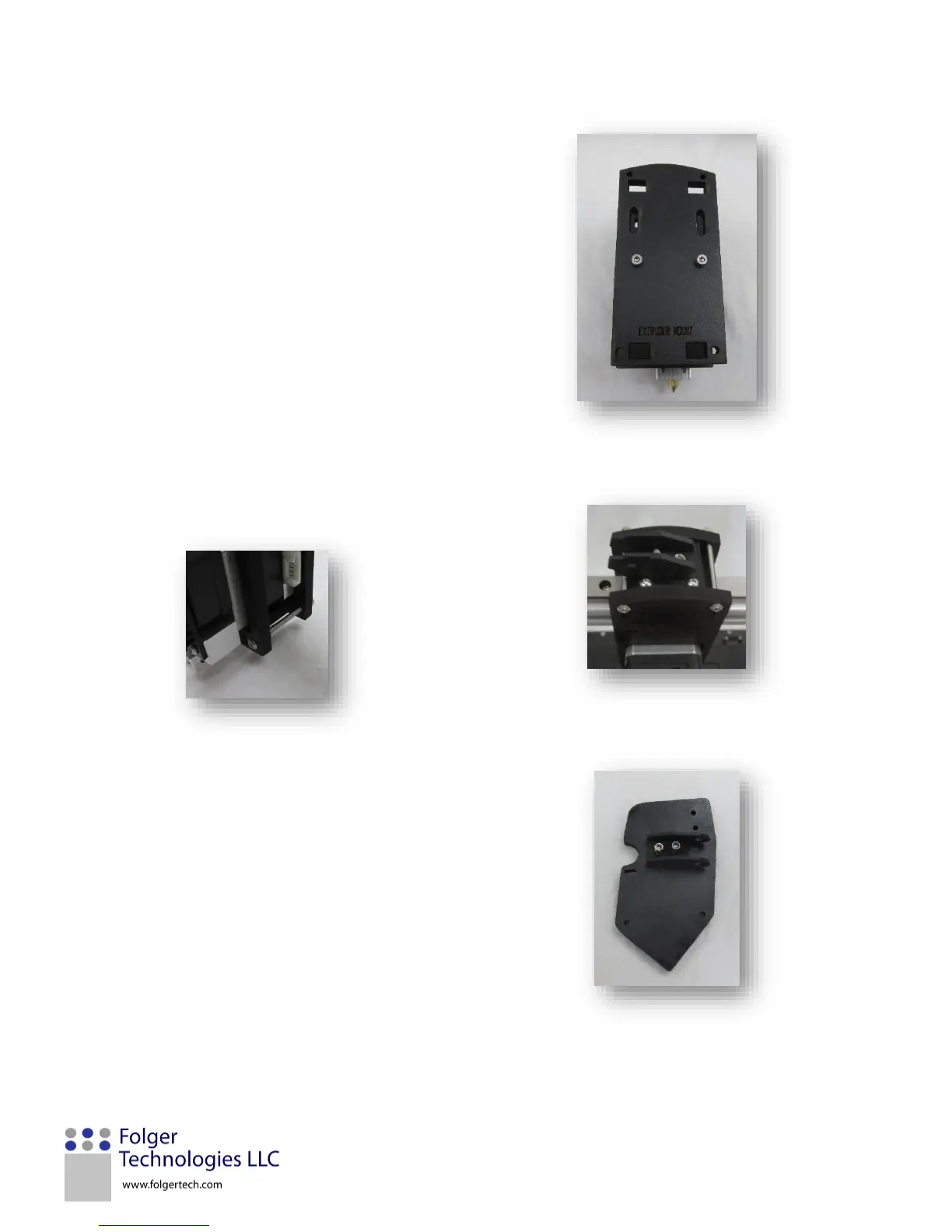

8. Use two M3x40mm screws to secure FT12 to
the back of the stepper motor.
9. Slide the hotend assembly over the tabs of the
top FT27. Lock this in place using four
M3x45mm screws and four M3 Nylock. There
are two screws on top and two on bottom.
10. Take FT9 and lay it face down. Take a female
cable mount and secure it in place using two
M3x12mm screws and two M3 Nylocks.
