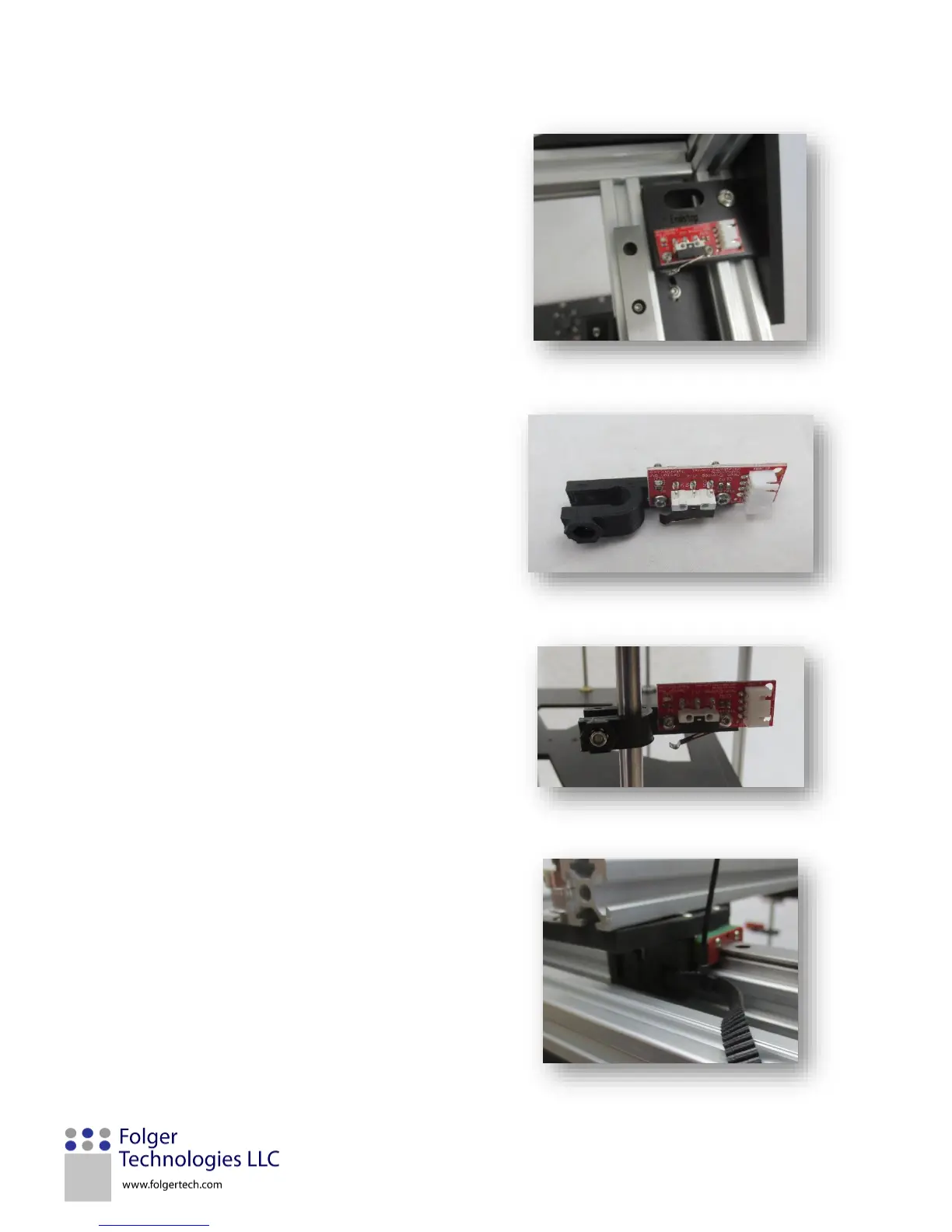

25. Place the limit switch onto the right side of the
frame. Lock it in place using the M5 screw. This
can be adjusted later to calibrate the printer.
26. Take printed endstop mount and an endstop
and secure it in place using two M3x20mm
screws and two M3 Nylocks.
27. Position the endstop onto the back right M8
PCR. Insert a M3x20mm screw through the end
and finish it with a M3 Nylock. This will be
adjusted during calibration.
28. Take the GT2 Belt and cut a one-meter length
of it. Loop one end of it into the left Y-Belt. Use
a zip tie to secure the loop.
