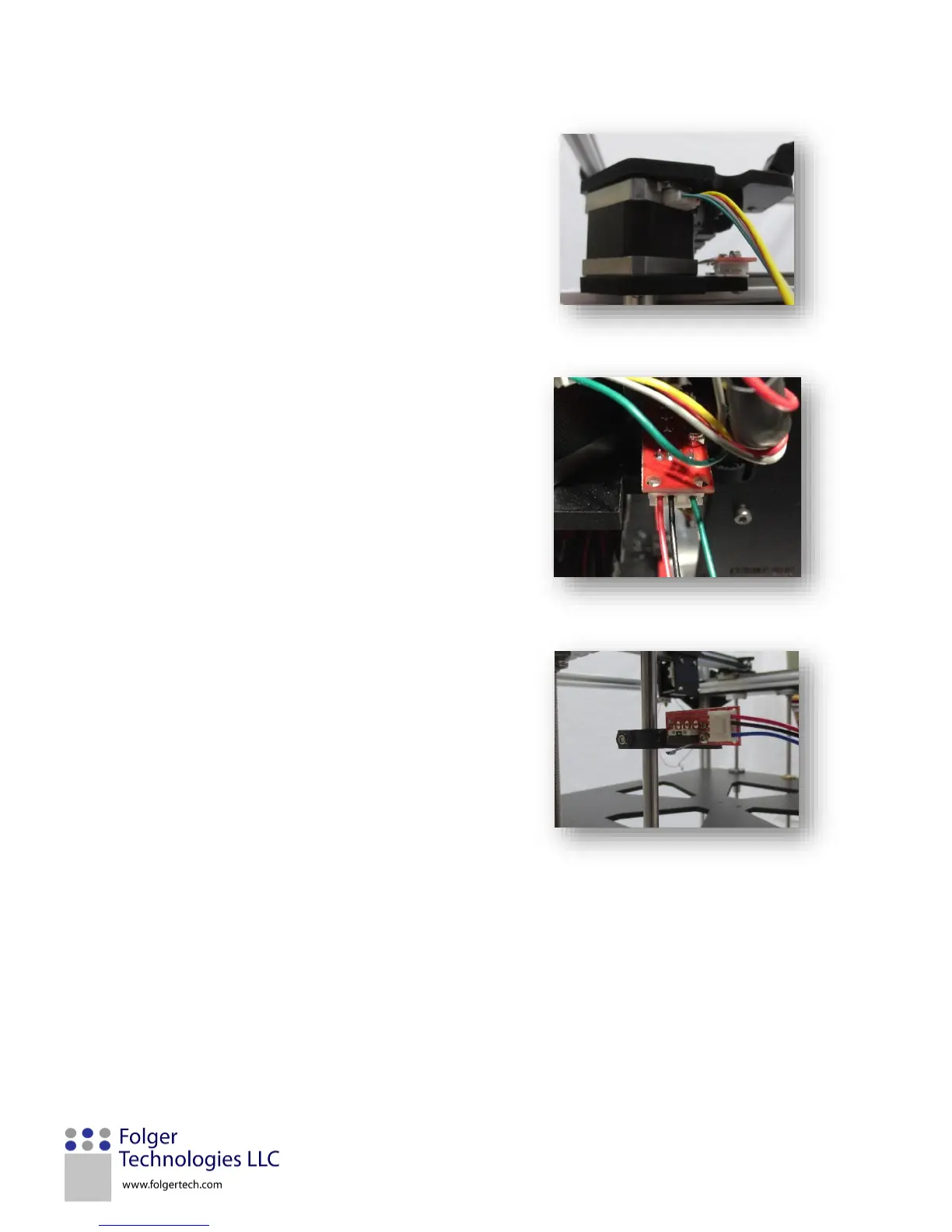

5. Take a 2 Meter motor wire and plug the motor
end of the cable into the X axis stepper motor.
6. Take 4 pin connector and the 2 meter endstop
cable (red, green, and black 24 awg wire), insert
the 4 pin connector into the x axis limit switch.
Looking at the bottom of the limit switch insert
the four wires in the following order: Red, Black,
Empty Space and Green.
7. Take the last endstop cable and plug it into the Z
axis endstop.
