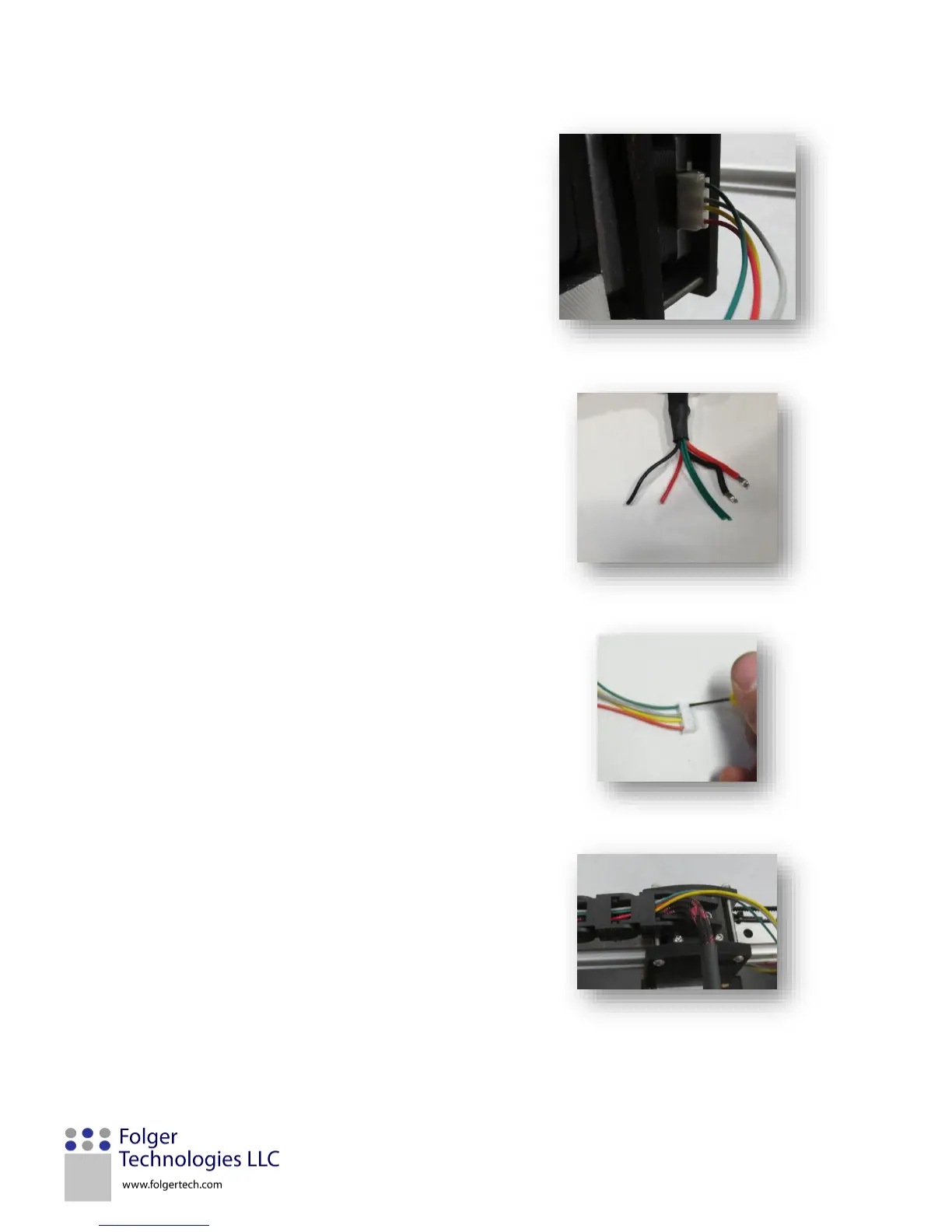

8. Take the 2M stepper motor cable and plug it into
the extruder stepper motor.
9. Take the 1.6 meter Red and Black 18 awg wires,
1.6 meter Red and Black 24 awg wire, and two 1.6
meter green 24 awg wire and bundle them
together. Take some tape and bind one of the
ends together. Take the braided wire cover and
feed the bundle through. Use the heat shrink to
bind the bundle together.
10. Prepare the hotend bundle by removing the
connector from the board side of the extruder
motor cable. This will help with feeding the
bundle through the cable chain. Using electrical or
kapton tape, tape the end of the bundle together.
Make sure to tape and label the motor wire cable.
This will be important when feeding through the
second cable chain.
Remove the pin by inserting a small screw driver
or pin and lifting the tab. Pull the wire out.
11. It helps to remove the chain from the mounts for
feeding wires through it. Feed the wire bundle
and the stepper motor cable from the extruder to
the x axis motor.
