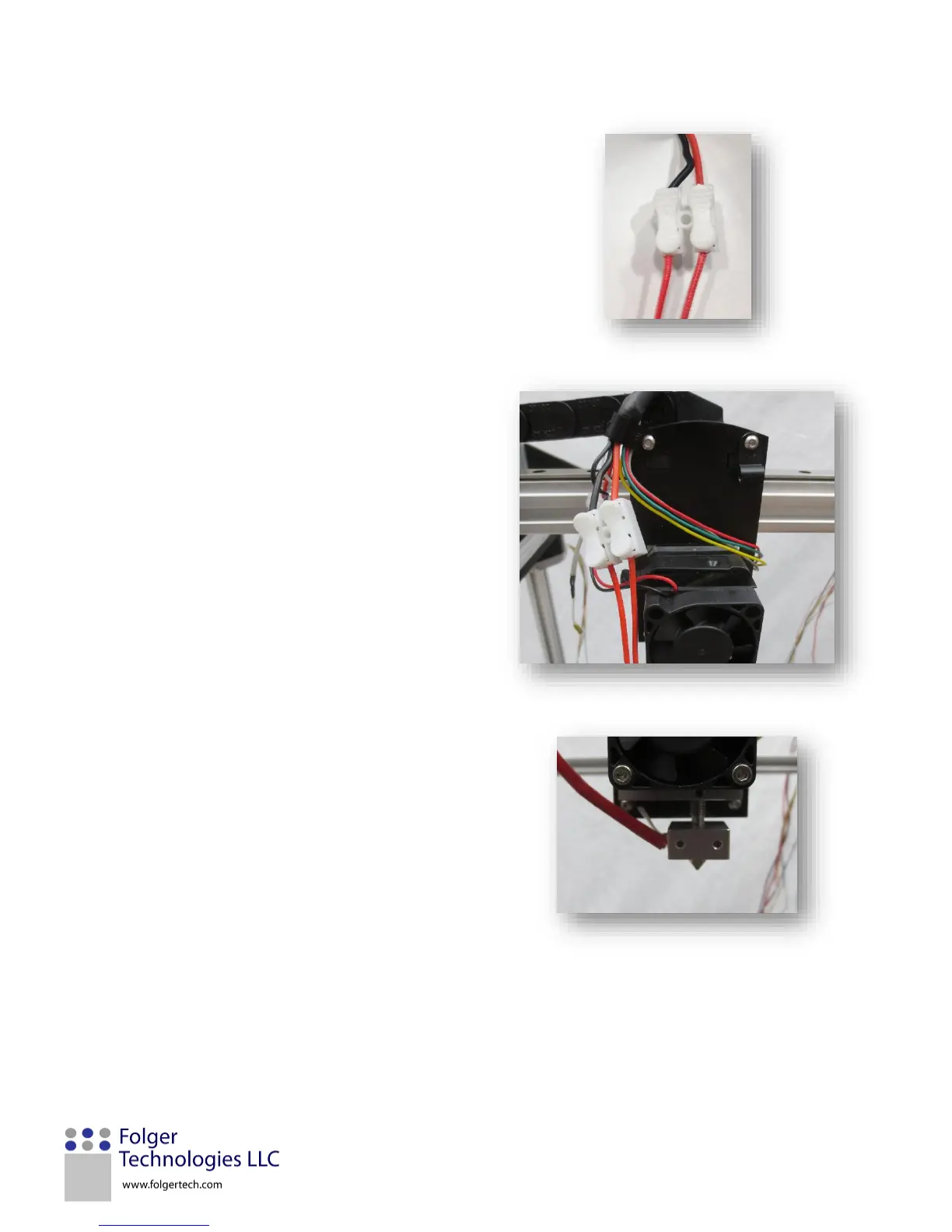

15. Take the heater core and cut it down to 5 inches.
Strip off ¼ inch of each wire and insert them into
the white (H shaped) wire connector. In the other
end of the H connector should be the two 18 awg
wires from the hotend bundle. The connector
might vary from the one pictured.
16. Remove the two top screws on the hotend and
insert two small cable clamps (one on each). The
left one should have all the wiring in it and the
right one should be empty. It is used as a filament
guild later.
17. Insert the heater core and the thermistor into the
Al heater block on the hotend. Secure them in
place using the three set screws. Make sure not to
tighten the thermistor down too much as this will
damage the thermistor.
