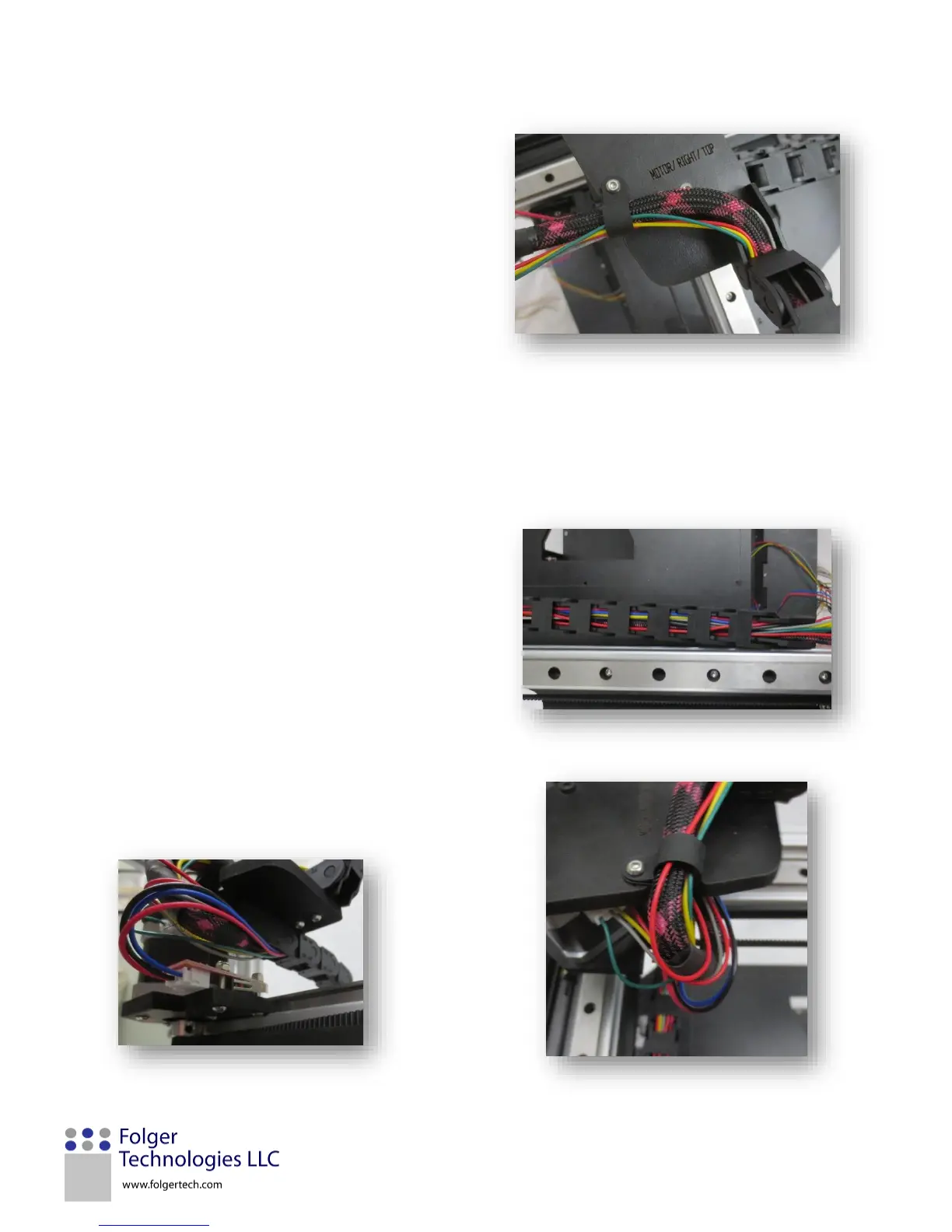

18. Using a small cable clip, insert the hotend wire
bundle and the extruder motor wire. Lock it down
using a M3x12mm screw and a M3 Nylock.
19. Remove the board connector from the X axis
motor cable and the X axis endstop. Make sure to
tape and label each bundle. Take the X axis
stepper cable, X axis endstop cable, hotend
bundle, and the extruder stepper cable and tape
the ends of them together.
20. Feed the bundle made in step 18 through the Y
axis cable chain. It will help to remove the chain
when feeding wires through.
21. Pull the wires tight and take the time to organize
them. This will be important during printing, so
the cable will not snag on anything.
