22. Insert the cables back into their respective board
connector.
Motor Wire: Green, Yellow, Gray, Red
Endstop: Blue, Black, Red
23. Take one of the 1M motor connectors and cut it
about 12 inches from the 6 pin connector (motor
end). Take a motor cable (without board
connector) and combine the similar colored wires.

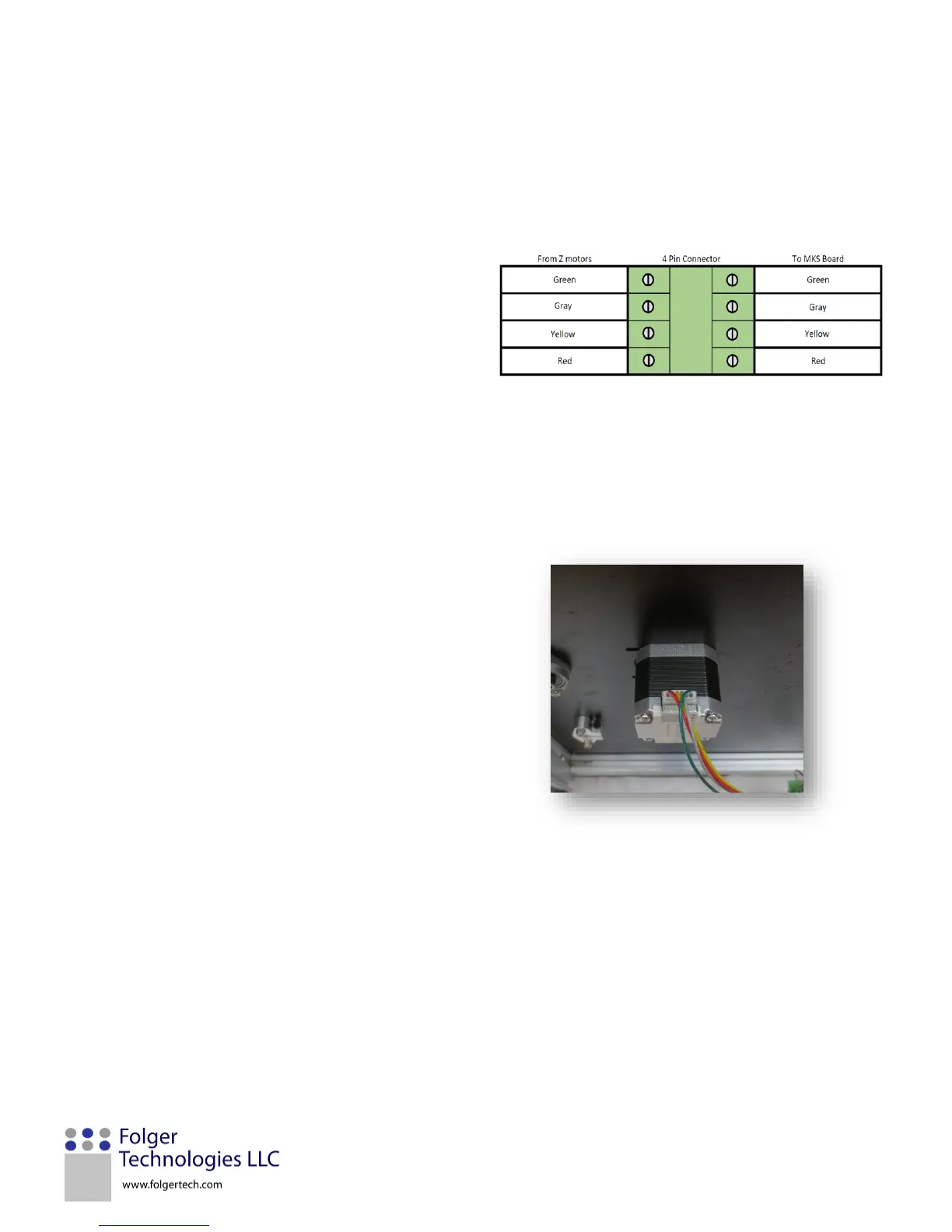

24. Take the green four terminal connectors, insert
the wires in the following order:
Green, Gray, Yellow, and Red
Take the remaining motor cable (with board
connector), and strip ¼ inch off the ends of each
wire. Insert them into the other end of the 4 pin
terminal as follows: Green, Gray, Yellow and Red
25. Plug in the two motor connectors into the Z
stepper motors.
