Fortis 5000RT-A - Auto Teller Wall Mount Installation

12 1/4"- 15
1
4
"
ADJUSTABLE
TO WALL
11
1
4
"
8
1
4
"
3" OF ADJUSTMENT
ANCHOR TO WALL WITH
3/8" DIA ANCHORS.
MAKE SURE WALL CAN SUPPORT
TELLER UNIT
3/8" THREADED
ROD
3/8" JAM NUT
4 PLCS.
3/8" JAM NUT
8 PLCS.

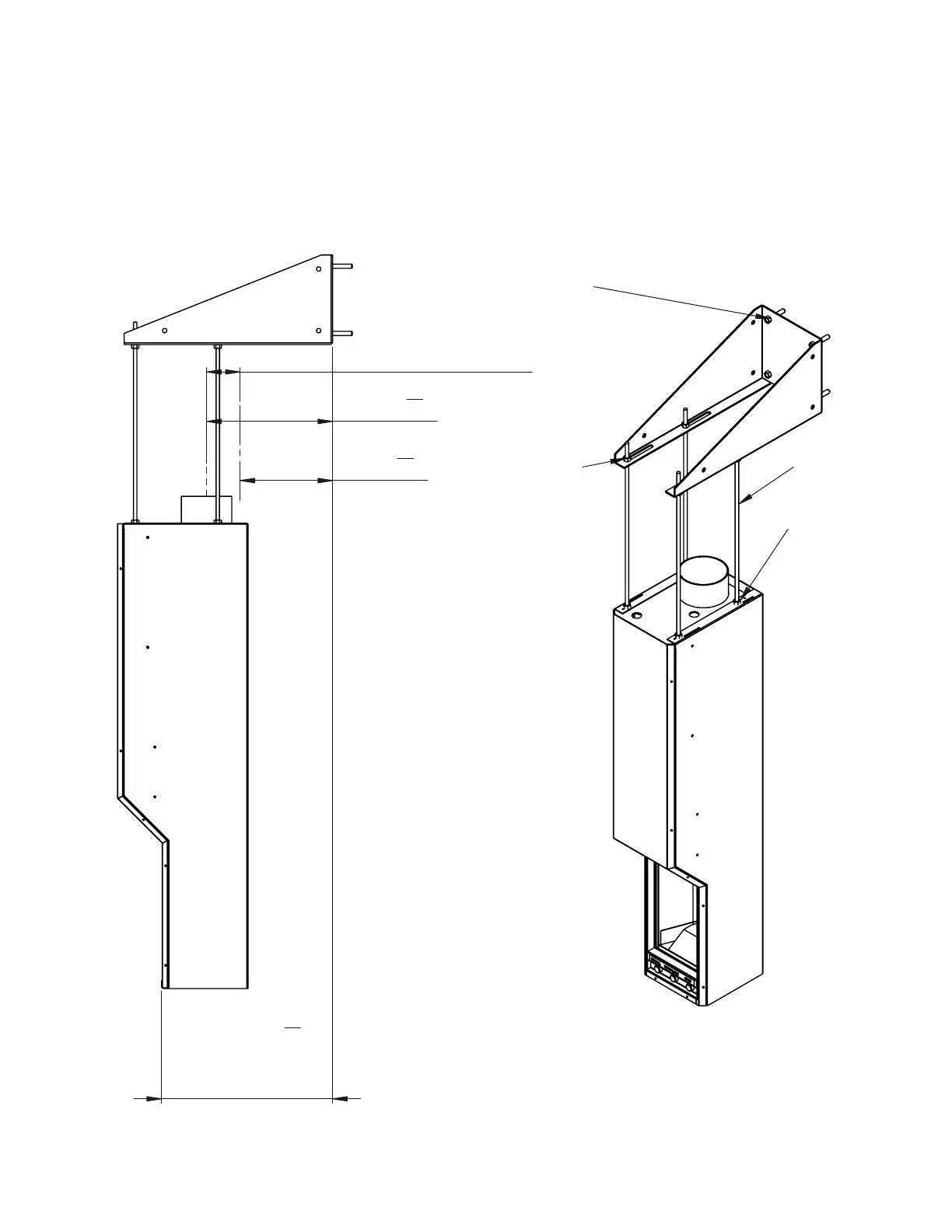

5000RT AUTO TELLER WALL MOUNT
INSTALLATION
SPECIFICATIONS
WALL MOUNT BRACKET SHOULD ALWAYS BE ABOVE
THE CEILING. SO THE TELLER UNIT CAN EITHER BE
BOLTED DIRECTLY TO THE BRACKET OR IT CAN BE
SUSPENDED WITH THREADED ROD. (AS SHOWN)
P-12
