STOP RUN
PARAMETERS
SET CLOCK
CARD
INFORMATION
SYSTEM OPTIONS
USER BUTTONS REMAIN
THE SAME
INPUTS
I2 - TELLER RECALL
I3 - CUSTOMER SEND
I4 - SYSTEM ON / OFF
I6 - CUSTOMER DOOR SAFETY
I7 - TELLER DOOR POSITION SWITCH
OUTPUTS
Q1 - VACUUM MTR RELAY
Q2 - PRESSURE MTR RELAY
Q3 - CUSTOMER DOOR RELAY
Q4 - RECALL INDICATOR LIGHT
ADJUSTMENTS
5000RT-M / 6000RT
T-3 OUTBOUND RUN TIME
T-5 INBOUND RUNTIME
DO NOT CHANGE ANYTHING ELSE IN THE PARAMETER AREA.
NOTE * "UPDATE TO THE WAY THAT THE TEST CYCLE IS STARTED AND STOPPED"
THIS FEATURE CAN BE TURNED ON WHENEVER THE CARRIER IS
AT THE TELLER STATION. HOLD THE "UP ARROW" KEY IN FOR 5 SECONDS.
THE SYSTEM WILL START AUTO CYCLING BACK AND FORTH.
THIS FEATURE WILL AUTOMATICALLY STOP AFTER 15 TRANSACTIONS OR
YOU CAN STOP BY PRESSING THE "DOWN ARROW" KEY FOR ONE SECOND
ONCE IT HAS STOPPED IT AUTOMATICALLY RESETS AND IS READY TO RUN
AGAIN.
TO CHANGE RUNTIME PRESS THE OK BUTTON ONE TIME
•
THIS WILL TAKE YOU TO THE SCREEN SHOWN ABOVE.
•
PRESS THE DOWN ARROW BUTTON ONE TIME SO THAT PARAMETERS IS FLASHING.
•
PRESS THE OK BUTTON. THIS WILL TAKE YOU TO THE PARAMETER LIST.
•
USING THE UP AND DOWN BUTTONS SELECT T3 OR T5.
•
PRESS OK ONCE YOU HAVE SELECTED THE TIMER.
•
I1 IS THE CURRENT SET TIME IN SECONDS.
•
PRESS THE OK BUTTON AND THE CURSOR WILL BE ON THE FAR RIGHT HAND "0".
•
USE THE LEFT AND RIGHT ARROW BUTTONS TO MOVE LEFT AND RIGHT
•
USE THE UP AND DOWN ARROW BUTTONS TO INCREASE OR DECREASE THE VALUE.
•
ONCE YOU HAVE SET THE TIME WHERE YOU WANT IT PRESS OK TO SAVE.
•
PRESS THE ESC BUTTON THREE TIMES TO GET BACK TO THE MAIN SCREEN
•

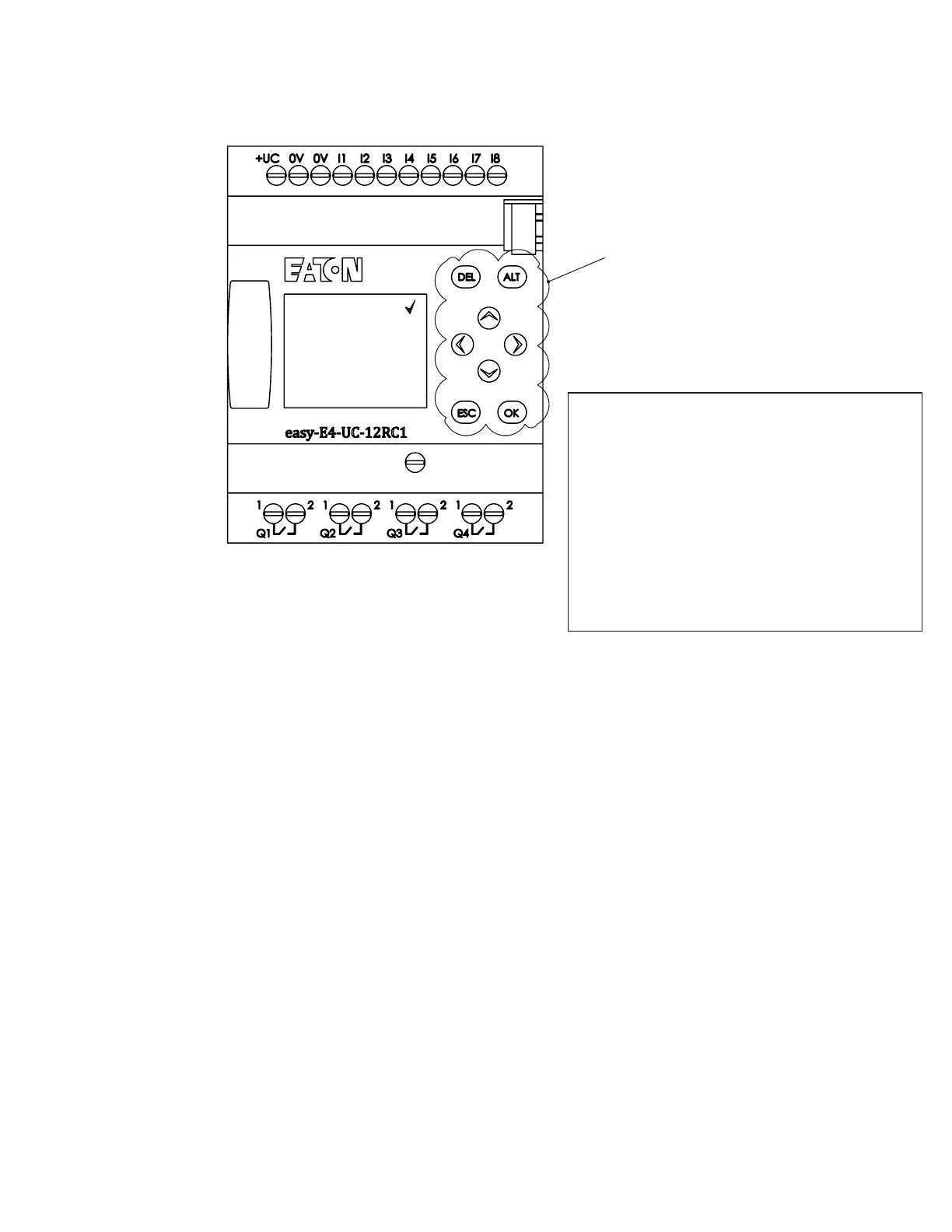

5000RT AUTO TELLER CONTROL COMPONENT
LOCATIONS
P-24
