I
AUTO TELLER

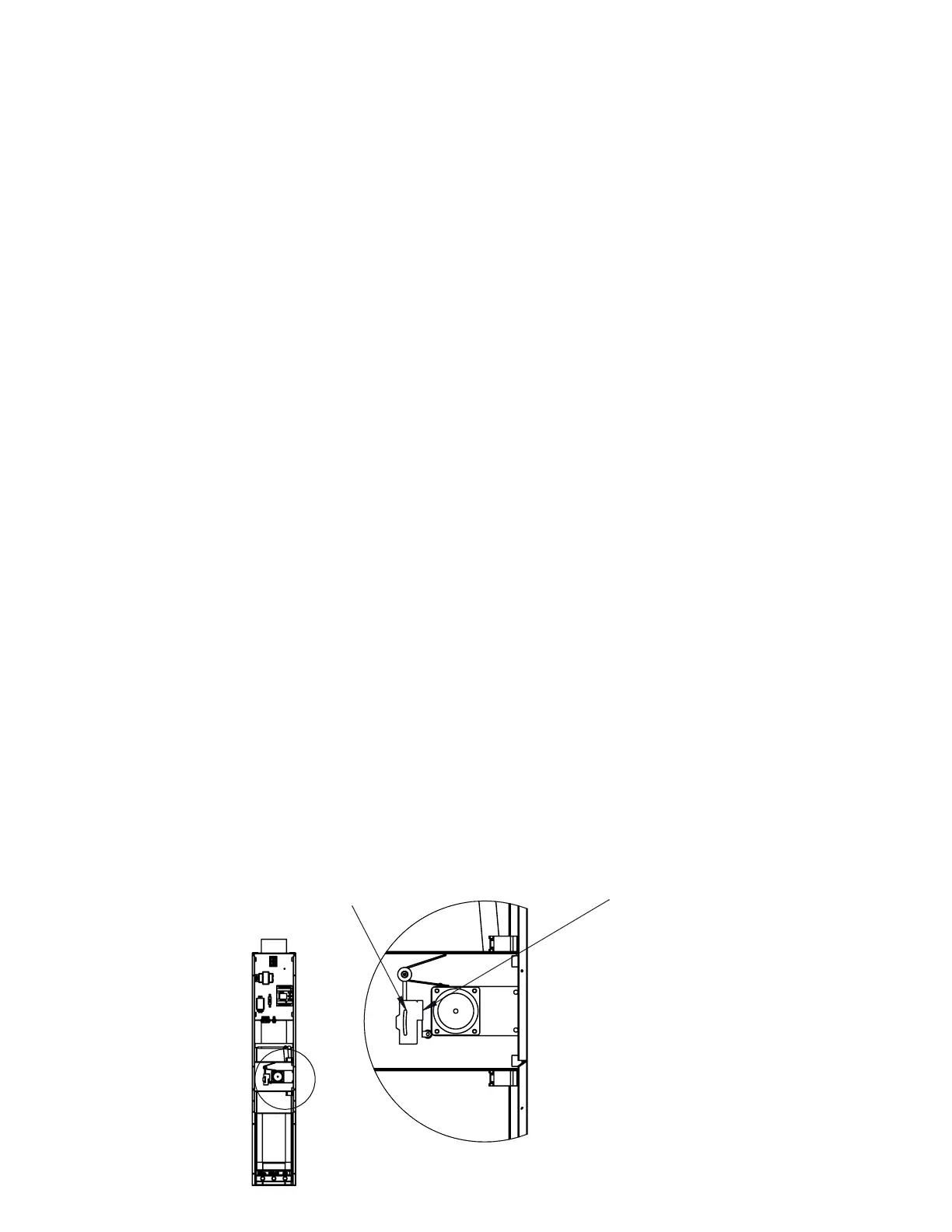

SAFETY SWITCH
SLIDE SWITCH UP
TO MAKE LESS
SENSITIVE
ALWAYS MAKE SURE
THAT THE TELLER DOOR REVERSES
IF AN OBSTRUCTION IS IN THE
WAY.
5000RT AUTO TELLER START UP
PROCEDURE
ONCE THE CUSTOMER AND TELLER UNITS ARE MOUNTED, THE CONTROL
CABLES ARE CONNECTED AND POWER HAS BEEN APPLIED. FOLLOW
THIS STEP BY STEP START UP PROCEDURE.
AUTO TELLER
1 - TURN CIRCUIT BREAKERS ON FOR BOTH THE TELLER AND CUSTOMER UNIT.
2 - CHECK AND MAKE SURE THE CUSTOMER DOOR IS CLOSED
3 - MAKE SURE THE TELLER DOOR CLOSES WHEN THE NIGHT LOCK IS
DEPRESSED. (SHOULD BE OPEN WHEN NIGHT LOCK IS RELEASED)
4 - WITH NIGHT LOCK RELEASED. PRESS TELLER SEND BUTTON.
5 - TELLER DOOR SHOULD CLOSE, THEN THE VACUUM TURBINE SHOULD RUN
FOR 6 SECONDS.
6 - ONCE THE TURBINE SHUTS OFF THE CUSTOMER DOOR
SHOULD OPEN. (IF AT ANY TIME THE TELLER DOOR RE-OPENS MAKE
SURE THERE IS NO OBSTRUCTIONS TO THE TELLER DOOR TRAVEL. IF
DOOR IS CLEAR AND STILL RE-OPENS ADJUST SAFETY SWITCH SO
THAT IT IS LESS SENSITIVE.
7 - PRESS CUSTOMER SEND SWITCH.
8 - CUSTOMER DOOR SHOULD CLOSE, THE PRESSURE TURBINE SHOULD RUN FOR
6 SECONDS.
9 - ONCE THE TURBINE SHUTS OFF THE TELLER DOOR SHOULD OPEN. IF AT ANY
TIME THE CUSTOMER DOOR OPENS CHECK FOR AN OBSTRUCTION TO THE
DOOR TRAVEL. IF THE PATH OF THE DOOR IS CLEAR ADJUST SAFETY
SWITCH SO THAT IT IS LESS SENSITIVE.
10 - ONCE YOU MAKE SURE THAT THE SYSTEM WILL SEND THE CARRIER BACK
AND FORTH AND THE DOORS ARE WORKING CORRECTLY. ADJUST THE
TURBINE RUN TIMES SO THAT THE TURBINES RUN FOR A FULL "2" SECONDS
AFTER THE CARRIER LANDS ON THE TELLER AND CUSTOMER LANDING
PADS.
SEE TIMER ADJUSTMENT SHEET
11- EACH SYSTEM HAS A TEST ROUTINE THAT CAN BE ACTIVATED BY
HOLDING THE UP ARROW IN ON THE CONTROL MODULE FOR 2 SECONDS.
THIS FEATURE WILL RUN FOR 15 COMPLETE TRANSACTIONS. ONCE
COMPLETE IT WILL AUTOMATICALLY STOP AND RESET. YOU CAN PRESS
THE DOWN ARROW ON THE CONTROL MODULE TO STOP THE TEST CYCLE
AT ANYTIME.
SEE TIMER ADJUSTMENT SHEET
