M
3/16"

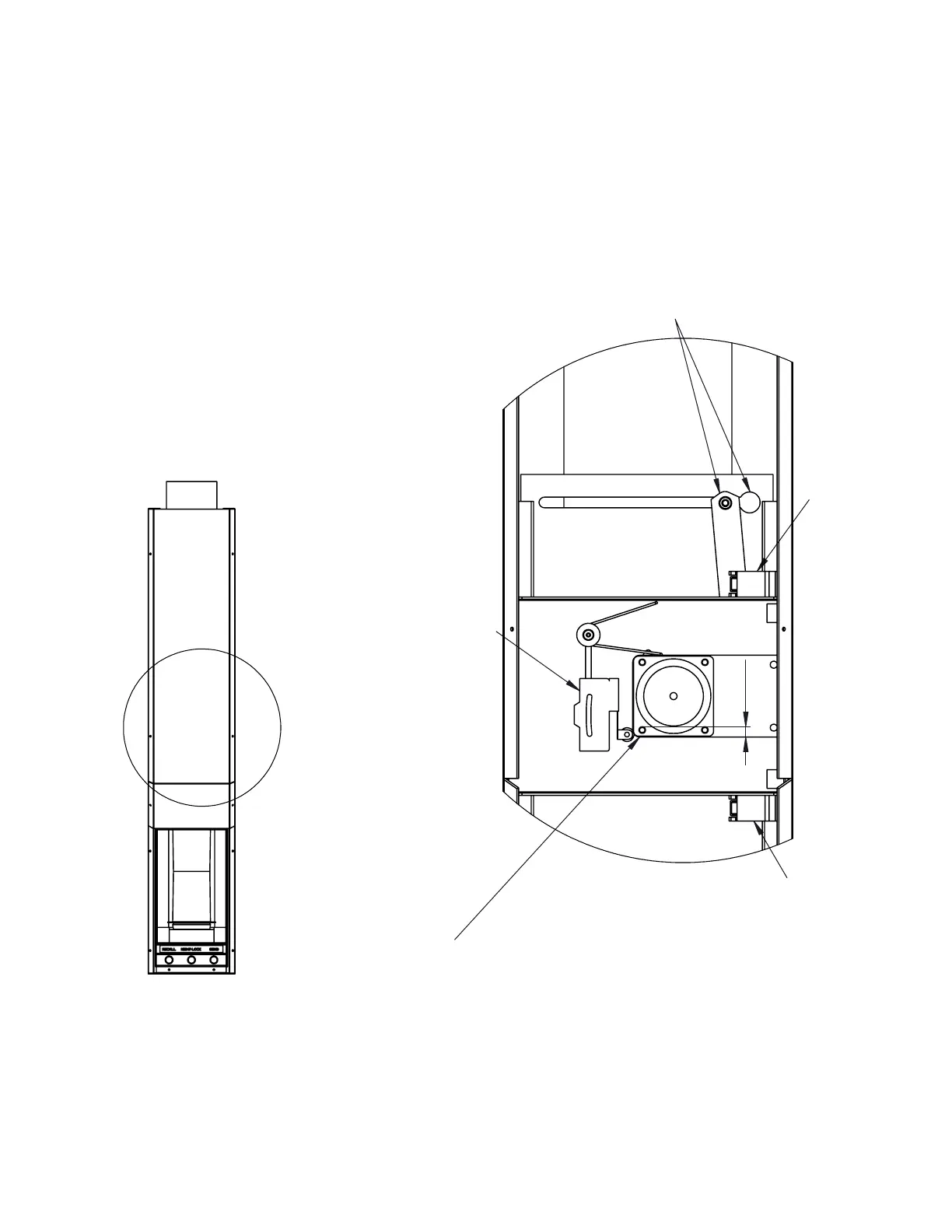

WHEN ADJUSTING SWITCH. UNPLUG MOTOR
ASSEMBLY FROM CONTROL PANEL.
SAFETY SWITCH SHOULD BE ADJUSTED SO
THAT THE SWITCH LEVER IS RELEASED
WHEN THE MOTOR IS PUSHED UP APPROX.
3/16 OF AN INCH. (SWITCH SHOULD CLICK)
MAKE SURE DOOR OPEN SWITCH IS
ADJUSTED SO THAT THE SHOULD BOLT
DOES NOT ENTER LARGE HOLE AT THE
END OF SLOT. THIS CAN CAUSE THE
SAFETY SWITCH TO TRIP WHEN THE DOOR
STARTS TO CLOSE. ALWAYS ADJUST SO
THAT THE ARM STOPS WITH THE SHOULDER
BOLT APPROX 1/4" FOR LARGER CUT OUT.
DOOR OPEN
SWITCH
DOOR CLOSED
SWITCH
SAFETY SWITCH
DOOR OPEN AND CLOSED LIMIT SWITCHES ARE ADJUSTED BY
BENDING THE ARM OF THE SWITCH. WHEN BENDING ARM BE
CAREFUL NOT TO BREAK SWITCH BODY.
5000RT TELLER SAFETY SWITCH
ADJUSTMENT PROCEDURE
P-29
