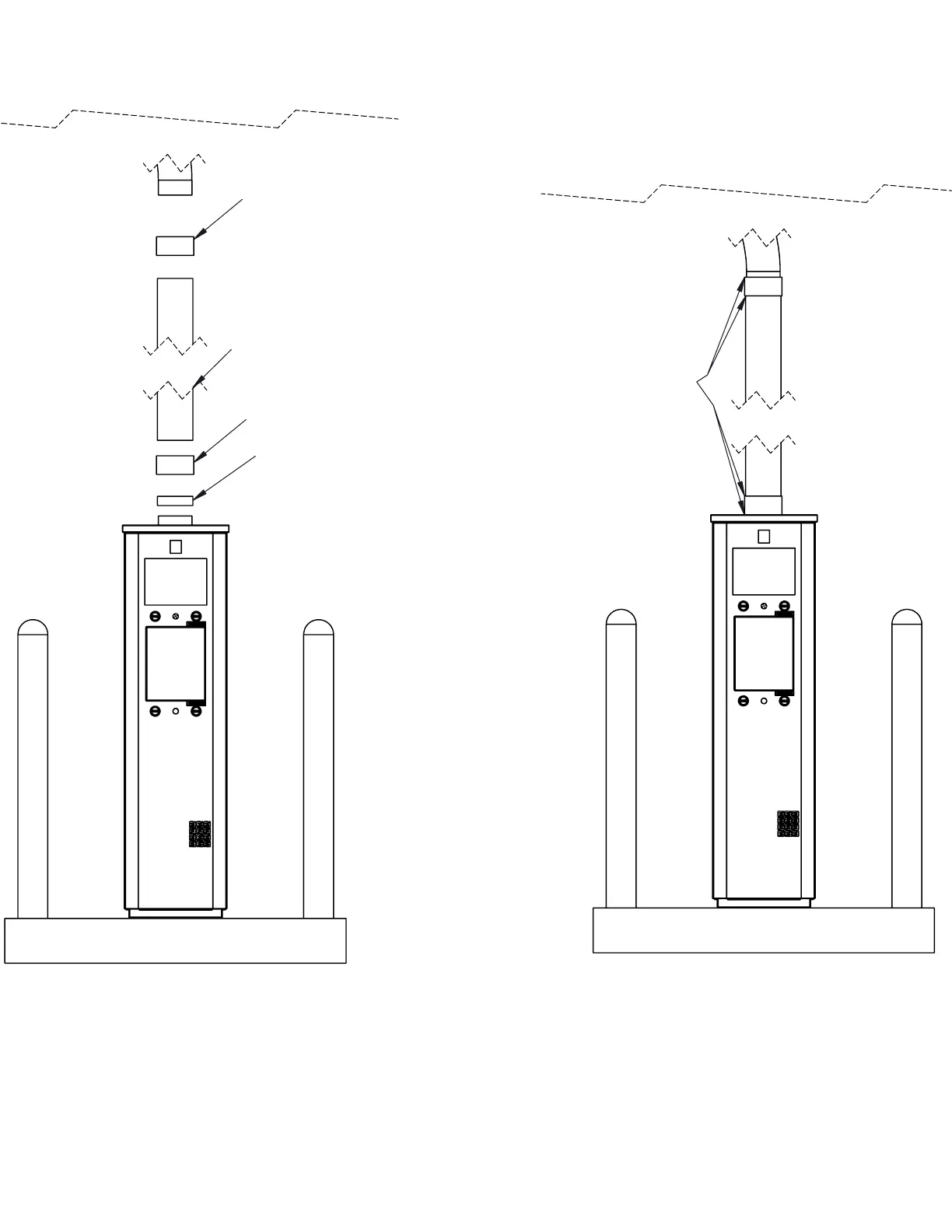

CLEAR VIEW
ADAPTER
RUBBER
SEALING RING
SLIP COUPLING
CLEAR VIEW
MAKE SURE
THAT THE TOP
AND BOTTOM
OF EACH
ADAPTER HAS A
BEAD OF SILICONE
APPLIED IN ORDER
TO SEAL ADAPTERS.
5000RT CUSTOMER AND TELLER
TUBING CONNECTIONS
TELLER TUBE CONNECTION
THE TELLER TUBE CONNECTION FOR THE AUTOMATIC AND
THE MANUAL TELLER UNITS ARE THE SAME. IF YOU ARE
USING STEEL TUBE THEN YOU WILL BE USING THE CLAMP
SLEEVE. IF IT IS PVC PIPE THEN YOU WILL BE USING THE PLASTIC
ADAPTER. BOTH ARE SUPPLIED WITH THE SYSTEM.
NOTE APPLY A BEAD OF SILICONE TO THE TOP AND BOTTOM
OF THE TUBING ADAPTER WHEN USED.
