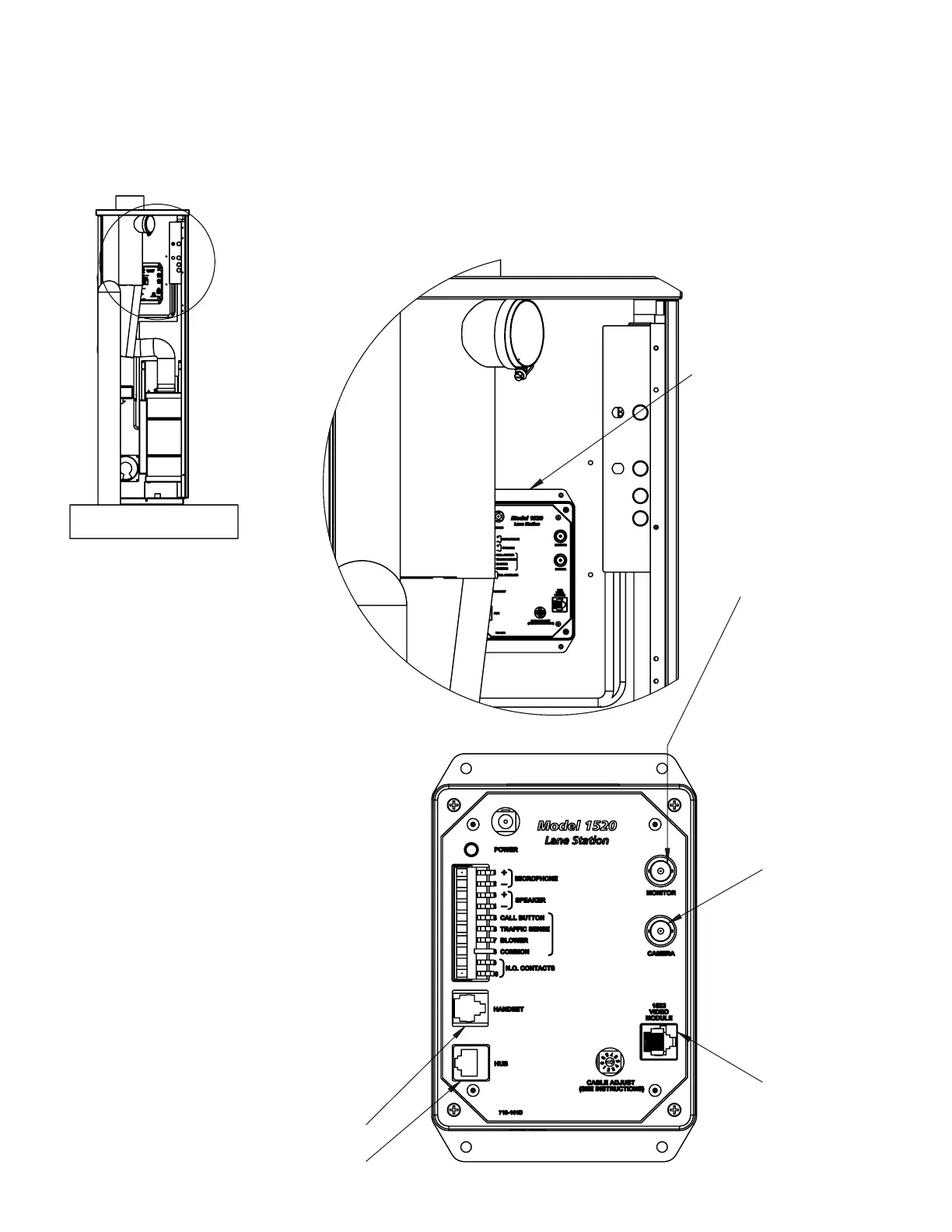

Fortis 5000RT-A - 5000 RT Customer Audio Connections

N
THERE ARE 4 STUDS
LOCATED ON INNER
FRAME TO MOUNT
THE AV-1520
LANE STATION
VIDEO
MODULE PORT.
(FORTIS TILT
CAMERA)
CAN BE USED
FOR ANALOG
CAMERA. ALSO
TO VIEW IMAGE
FROM CAMERA
CONNECTED TO
VIDEO MODULE
PORT
CAN BE USED
FOR ANALOG
SIGNAL TO
GENERIC MONITOR.
CAN ALSO BE USED
TO VIEW SIGNAL
BEING SENT TO
MONITOR
CONNECTED TO
VIDEO MODULE
PORT
CAT 5 FROM HUB
OPTION HANDSET
5000RT CUSTOMER AUDIO
CONNECTIONS
5000RT AUDIO WIRING ( WIRES ARE TY WRAPPED
TOGETHER NEXT TO LANE STATION LOCATION )
1 - GRAY SHIELD CABLE (MICROPHONE)
RED - MIC +
BLACK - MIC -
SHIELD - COMMON
2 - RED AND BLACK PAIR FROM SPEAKER
RED - SPEAKER +
BLACK - SPEAKER -
3 - TWO RED AND BLACK TWISTED PAIRS
BOTH REDS - CALL BUTTON
BOTH BLACKS - COMMON
4 - ORANGE PAIR FROM ELECTRICAL BOX
(BLOWER MUTE WIRES)
ONE ORANGE - BLOWER
ONE ORANGE - COMMON
P-33
