Fortis 5000RT-A - 5000 RT Auto and Manual Teller Field Wiring Connections

RED
WHITE
BLUE
GREEN BROWN
BLACK
YELLOW
ORANGE
RIB INDICATES PIN-1
RED
WHITE
BLUE
GREEN
BROWN
BLACK
5000RT WITH MANUAL TELLER WILL HAVE A CONNECTOR STYLE " A " ON CUSTOMER
END AND A CONNECTOR STYLE " A " ON THE TELLER END. THESE CONNECTORS
COME WITH SHORT COLOR CODED WIRES.
CONNECT THESE COLOR TO COLOR WITH YOUR CONTROL CABLE.
5000RT WITH AUTO TELLER WILL HAVE A CONNECTOR STYLE " A " ON CUSTOMER
END AND A CONNECTOR STYLE " B " ON THE TELLER END. THESE CONNECTORS
COME WITH SHORT COLOR CODED WIRES.
CONNECT THESE COLOR TO COLOR WITH YOUR CONTROL CABLE.
NOTE THE YELLOW AND ORANGE WILL NOTE BE USED ON A 5000RT CUSTOMER
UNIT WHEN CONNECTED TO A AUTOMATIC TELLER
NOTE - ALL FORTIS MACHINES WILL ALWAYS HAVE THE COLOR CODE ON THE
TELLER UNIT MATCH THE COLOR CODE ON THE CUSTOMER UNIT.
RED ALWAYS INDICATES PIN 1 ON THE CONNECTOR

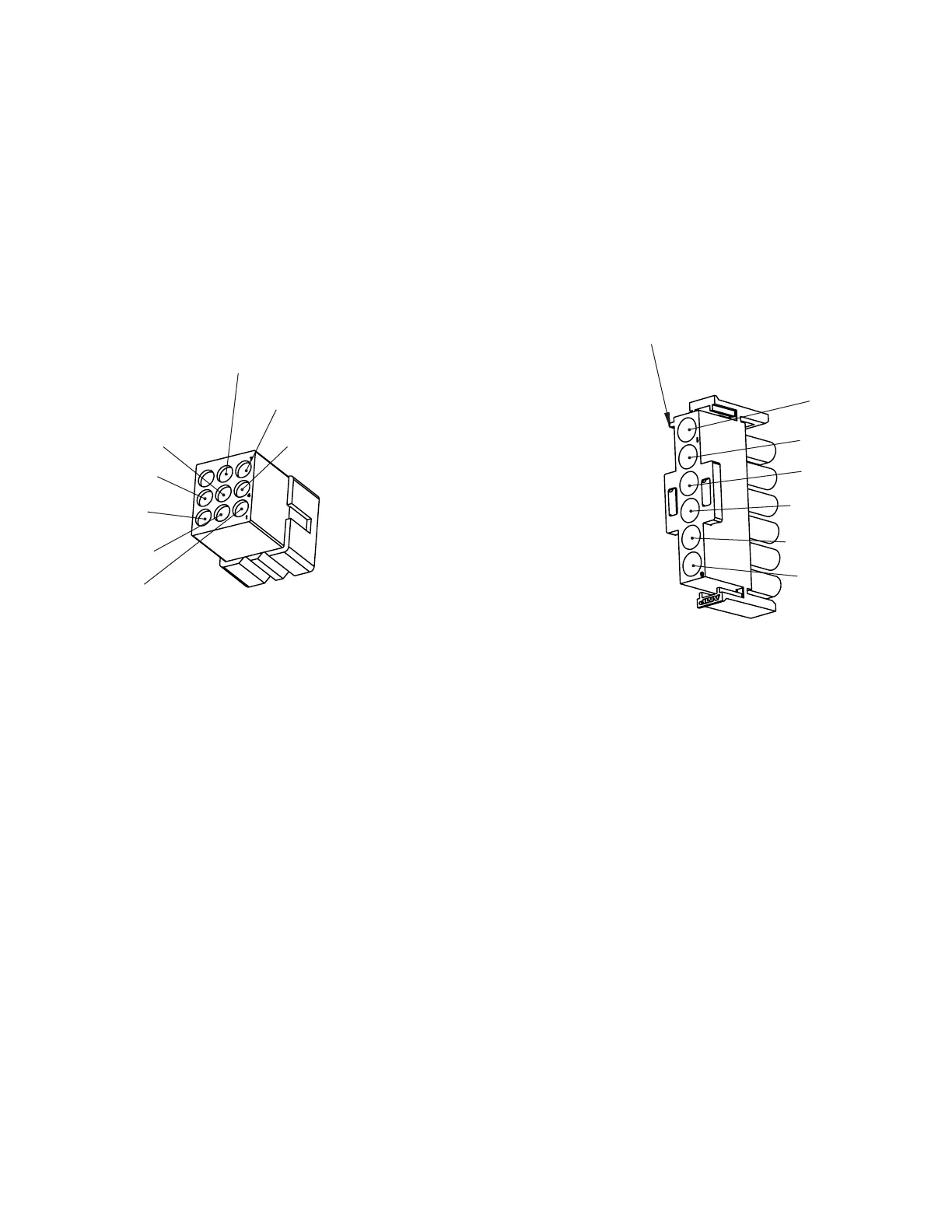

CONNECTOR STYLE
"B"
CONNECTOR STYLE
"A"
5000RT AUTO AND MANUAL TELLER
FIELD WIRING CONNECTIONS
P-21
