G
TWO U BOLTS ALLOW
UP AND DOWN
ADJUSTMENT
OF TELLER TERMINAL
SHORT BRACKET SLIDES
INSIDE OF LONG BRACKET
THERE IS 6 INCHES OF FRONT
TO BACK ADJUSTMENT.
3/8" BOLTS LOCATED
UNDERNEATH 4 PLCS.
FLANGED TUBE
RETAINER RING
FLANGED TUBE
ADAPTER
FLANGE GASKET
3" VENT TUBE
EXPANDED END
3/8" ANCHORS SHOULD
BE USED TO SECURE
BRACKET TO WALL
MAKE SURE WALL CAN
SUPPORT WEIGHT OF
FULLY ASSEMBLED
TELLER UNIT AND TUBE
FLANGED TUBE CONNECTION ALLOWS
TELLER UNIT TO BE ROTATED LEFT AND RIGHT
16 INCHES IS THE RECOMMENDED DISTANCE
THAT THE BOTTOM OF THE TELLER UNIT
SHOULD BE ABOVE COUNTER.

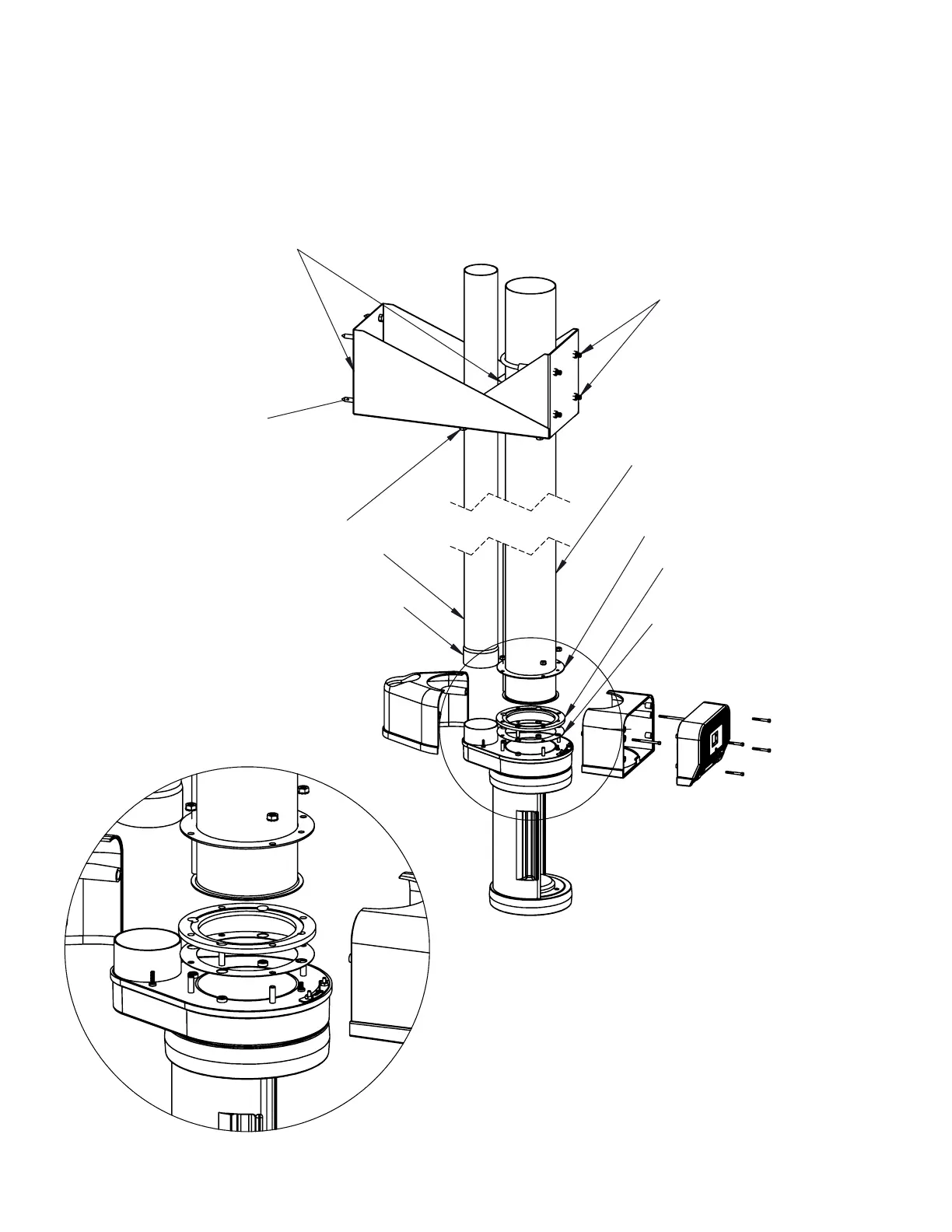

5000RT MANUAL TELLER WALL
MOUNT BRKT AND TELLER TUBE ASSEMBLY
P-16
