5000RT MANUAL TELLER OPERATIONAL
DESCRIPTION

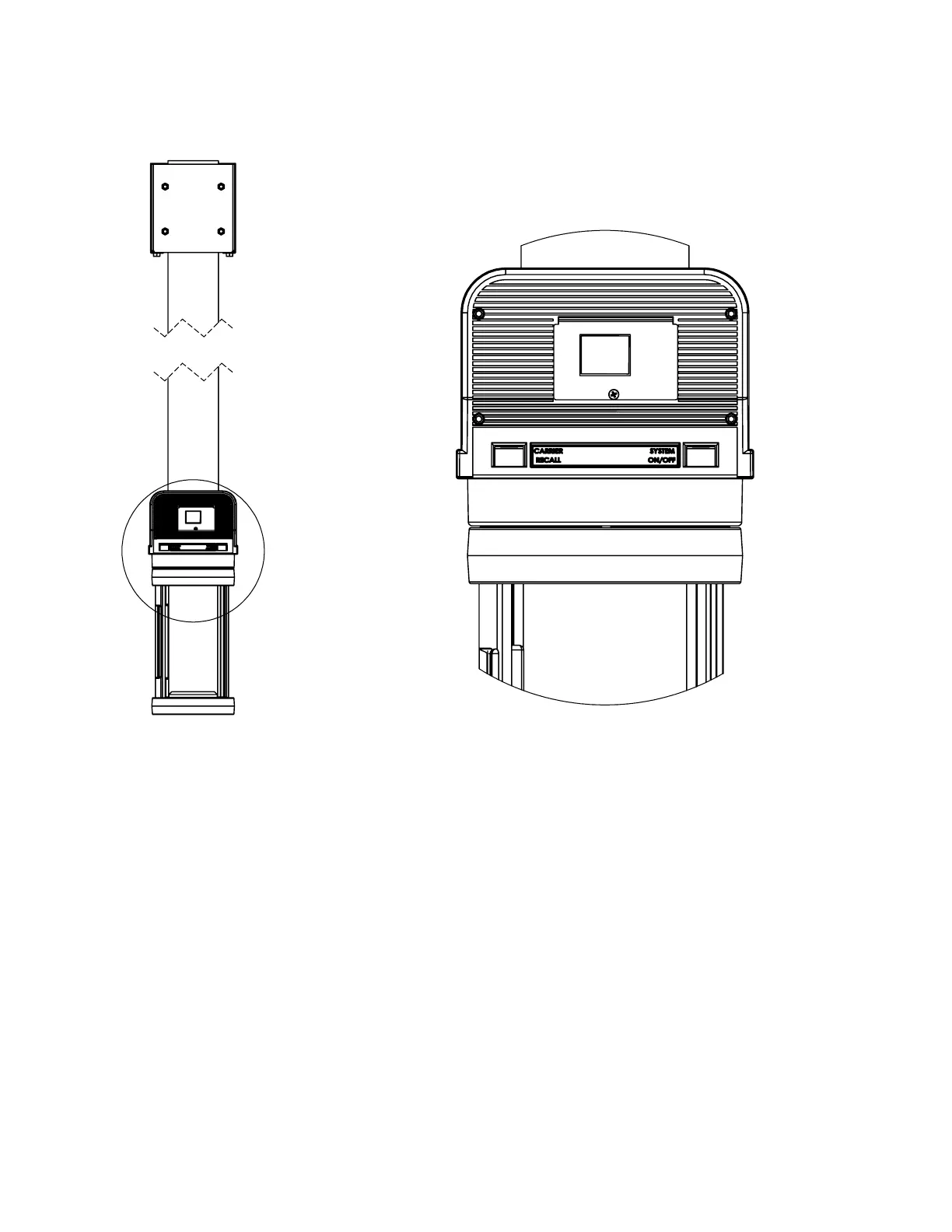

SEND
CARRIER RECALL
SYSTEM SWITCH
ALTHOUGH THERE IS NO SEND BUTTON. OPENING AND CLOSING THE TELLER DOOR WILL PERFORM A SEND SEQUENCE.
ONCE THE SEQUENCE IS STARTED THE VAC. TURBINE RELAY WILL BE ENERGIZED FOR THE PRESET TIME. ONCE THE TURBINE
RELAY IS TURNED OFF THE CUSTOMER DOOR WILL OPEN.
*NOTE OPENING AND CLOSING THE TELLER DOOR WILL ONLY ACTIVATE THE SEND SEQUENCE IF THE SYSTEM THINKS THE
CARRIER IS INSIDE.
ACTIVE ONLY WHEN THE SYSTEM IS ON AND THE CUSTOMER DOOR IS OPEN. WHEN PRESSED THE CUSTOMER
DOOR WILL CLOSE. AFTER TWO SECONDS THE PRESSURE TURBINE RELAY WILL BE ENERGIZED
(SET RUNTIME WILL DETERMINED HOW LONG THE PRESSURE RELAY IS ACTIVE). ONCE THE TURBINE RELAY IS DEACTIVATED
THE TELLER DOOR WILL OPEN.
*NOTE IF THE CUSTOMER DOOR SAFETY IS ACTIVATED AT ANYTIME DURING THE CUSTOMER DOOR CLOSING. THE CUSTOMER
DOOR WILL RE-OPEN AND THE SEQUENCE WILL HAVE TO BE RE-STARTED ONCE THE OBSTRUCTION IS CLEARED.
THE SYSTEM SWITCH WHEN ON ALLOWS THE CARRIER TO BE SENT BACK AND FORTH. WHEN IT IS OFF ALL FUNCTIONS ARE
DISABLED WITH THE EXCEPTION OF THE ANTI CONDENSATION FEATURE. THIS FEATURE BECOMES ACTIVE UNLESS IT IS
TURNED OFF IN PARAMETERS. (SEE PARAMETERS)
