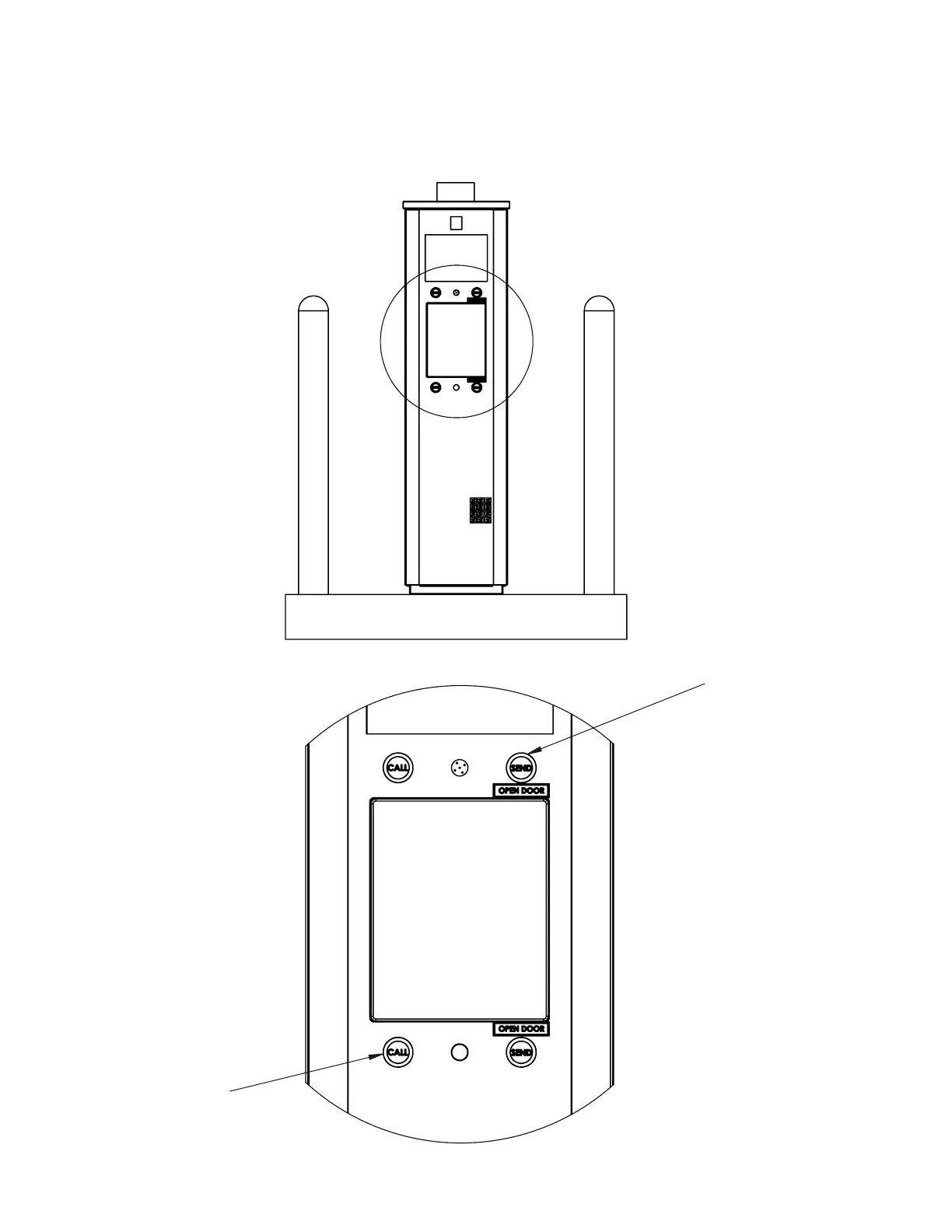

C
DETAIL C
CUSTOMER SEND BUTTON.
CLOSES OUTER DOOR AND
SENDS CARRIER TO TELLER
STATION.
WHEN AUTO DOOR CLOSED
FEATURE IS ACTIVE PRESSING
THIS BUTTON WILL OPEN THE
OPEN THE DOOR WHEN
THE CARRIER IS PRESENT AND
THE DOOR IS CLOSED
CALL BUTTON RINGS
THE AUDIO CHIME
WHEN PRESSED.
NOTE THE AUDIO
AUTHORITY SYSTEM
DOES NOT ALLOW
THE CHIME TO CONSTANTLY
RING IF SOMEONE HOLDS
THE BUTTON IN. THERE NEEDS
TO BE A 5 SECOND DELAY
BETWEEN BUTTON PRESSES
FOR THE CHIME TO RING
A SECOND TIME
5000RT CUSTOMER OPERATIONAL
DESCRIPTION
THERE IS A SAFETY CIRCUIT THAT WILL
CAUSE THE DOOR TO REOPEN IF THERE
IS AN OBSTRUCTION IN THE WAY OF THE
DOOR WHEN IT CLOSES. ONCE THE OBSTRUCTION
IS CLEARED YOU MUST PRESS THE CUSTOMER
SEND BUTTON A SECOND TIME TO RE START THE
SEND SEQUENCE
P-6
