Fortis 5000RT-A - 5000 Rt Control Components

CUSTOMER ELECTRICAL BOX
TURBINE BOX
AUDIO AND VIDEO OUTLETS
HEATER OUTLET
VAC MTR FUSE
PRESS MTR FUSE
HEATER FUSE
DOOR MOTOR
AND AUDIO /
VIDEO FUSE
TURBINE
CONNECTOR
FIELD WIRING
CONNECTOR
DOOR MOTOR
CONNECTOR
AUDIO MUTE
TURBINE
RELAYS
DOOR MTR
RELAY

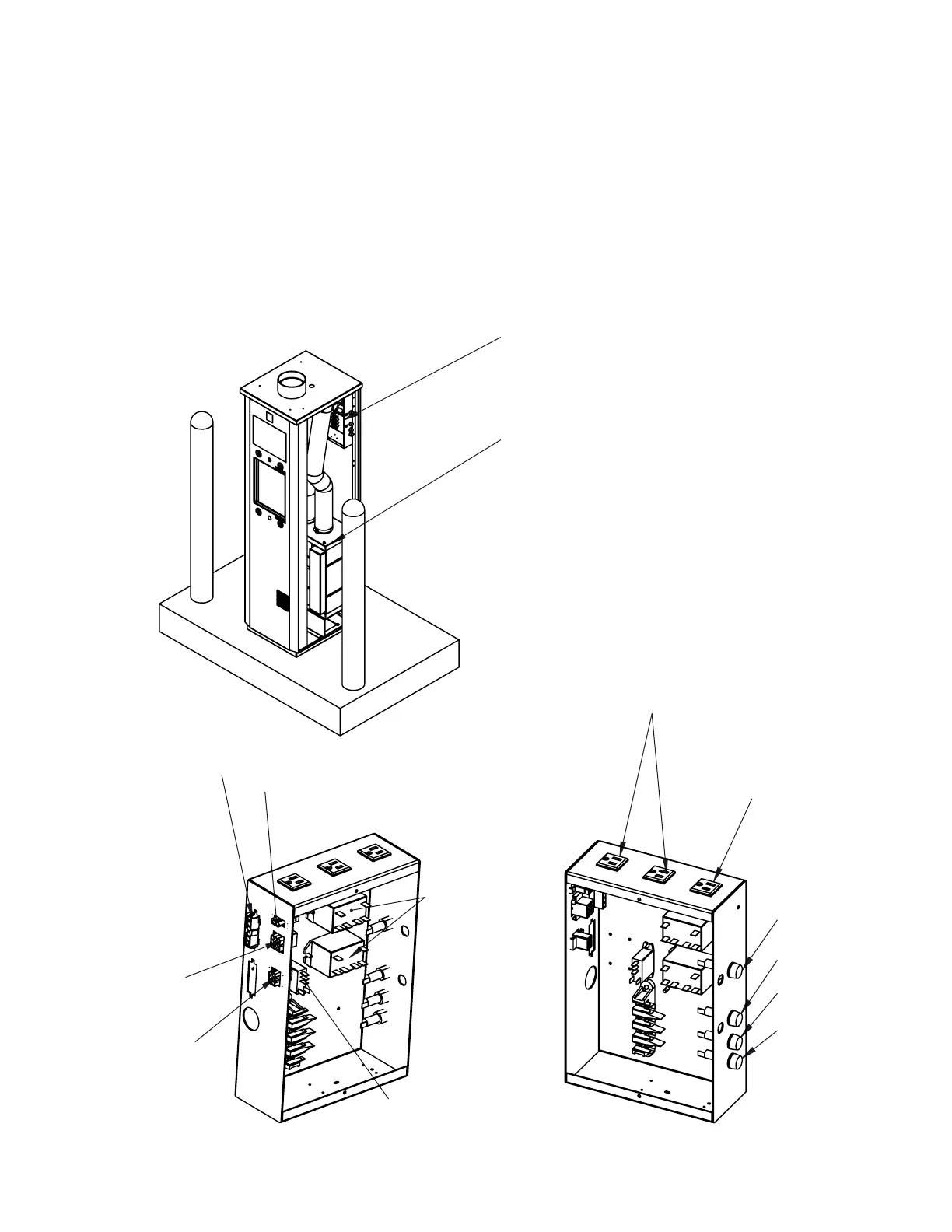

5000RT CUSTOMER CONTROL COMPONENT
LOCATIONS
NOTE - STANDARD CONTROL BOX SHOWN. SEE DETAIL ELECTRICAL
BOX INFORMATION FOR OTHER VARIATIONS.
