Fortis 5000RT-A - Manual Teller Counter Clear View Installation

33
31
30
7
32
ONCE TELLER UNIT IS INSTALLED ON
COUNTER TOP OPEN DOOR AND REMOVE
LANDING PAD. ONCE LANDING PAD IS
REMOVED DRILL TWO HOLES
APPROXIMATELY 2 INCHES APART THRU
THE BOTTOM OF THE TELLER UNIT INTO
THE COUNTER TOP. ANCHOR TELLER
UNIT TO COUNTER WITH
TWO WOOD SCREWS. RE-INSTALL LANDING
PAD WHEN ANCHORING IS COMPLETE.
USE SILICONE
SEALANT ON BOTH
ENDS OF COUPLING
USE SILICONE
SEALANT ON BOTH
ENDS OF COUPLING
P-18
P-18
CLEAR VIEW
CLEAR VIEW
ADAPTER

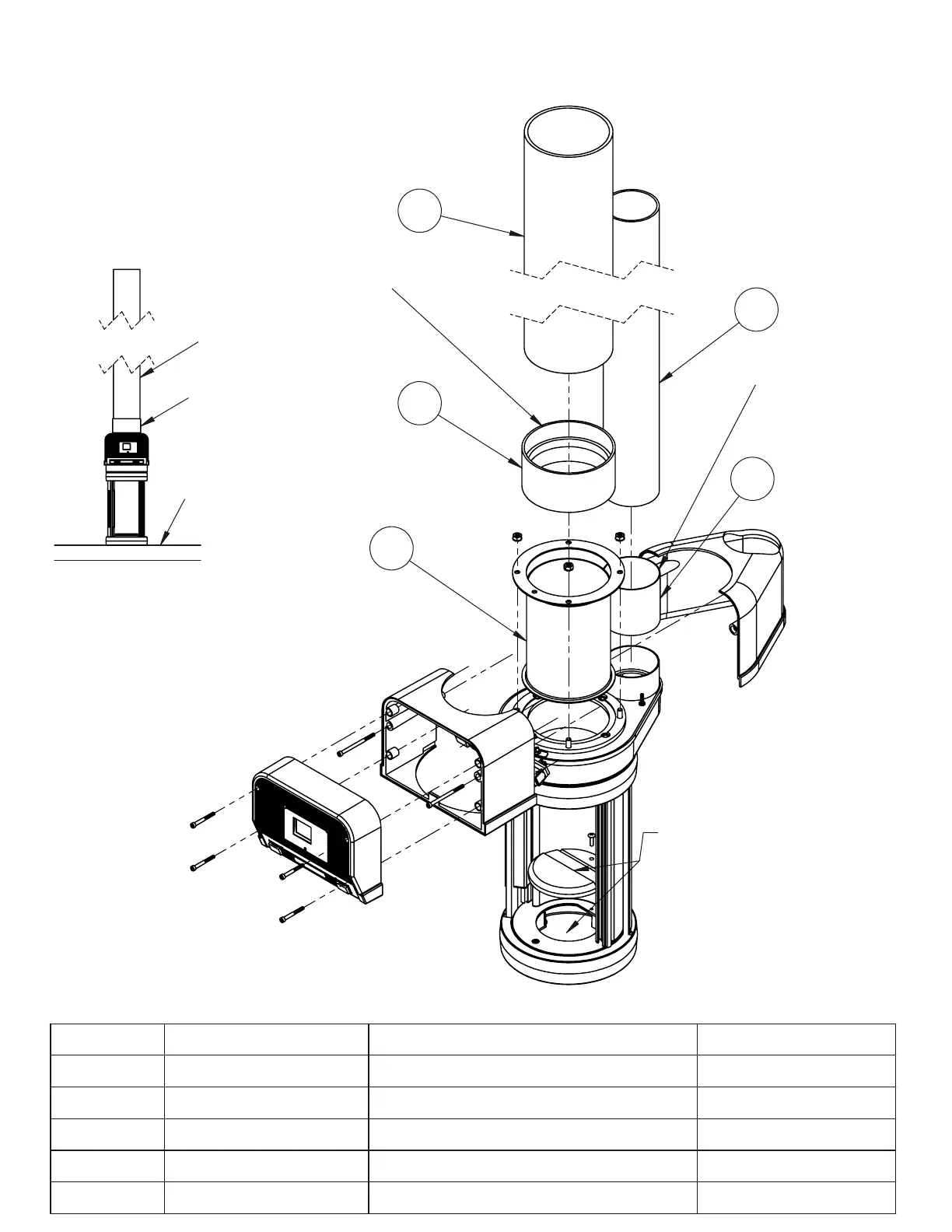

COUNTER TOP INSTALLATION
5000RT MANUAL TELLER
COUNTER TOP
ITEM NO. PART NUMBER DESCRIPTION
QTY.
7 FS13-0588 CLEARVIEW ADAPTER TUBE 1
30 TU-010
STEEL TO CLEARVIEW ADAPTER 1
31 TU-001
7FT. CLEARVIEW 1
32 TU-029-C 3" STEEL COUPLING 1
33 TU-029 CLEAR VENT TUBE 6FT
1
