4 MOUNTING
SCREWS
INSTALL CAMERA
THRU HERE
INSTALL CAMERA
THRU HERE
AV-0009 CAMERA
CAT 5 CABLE CONNECTION
MONITOR CONNECTIONS

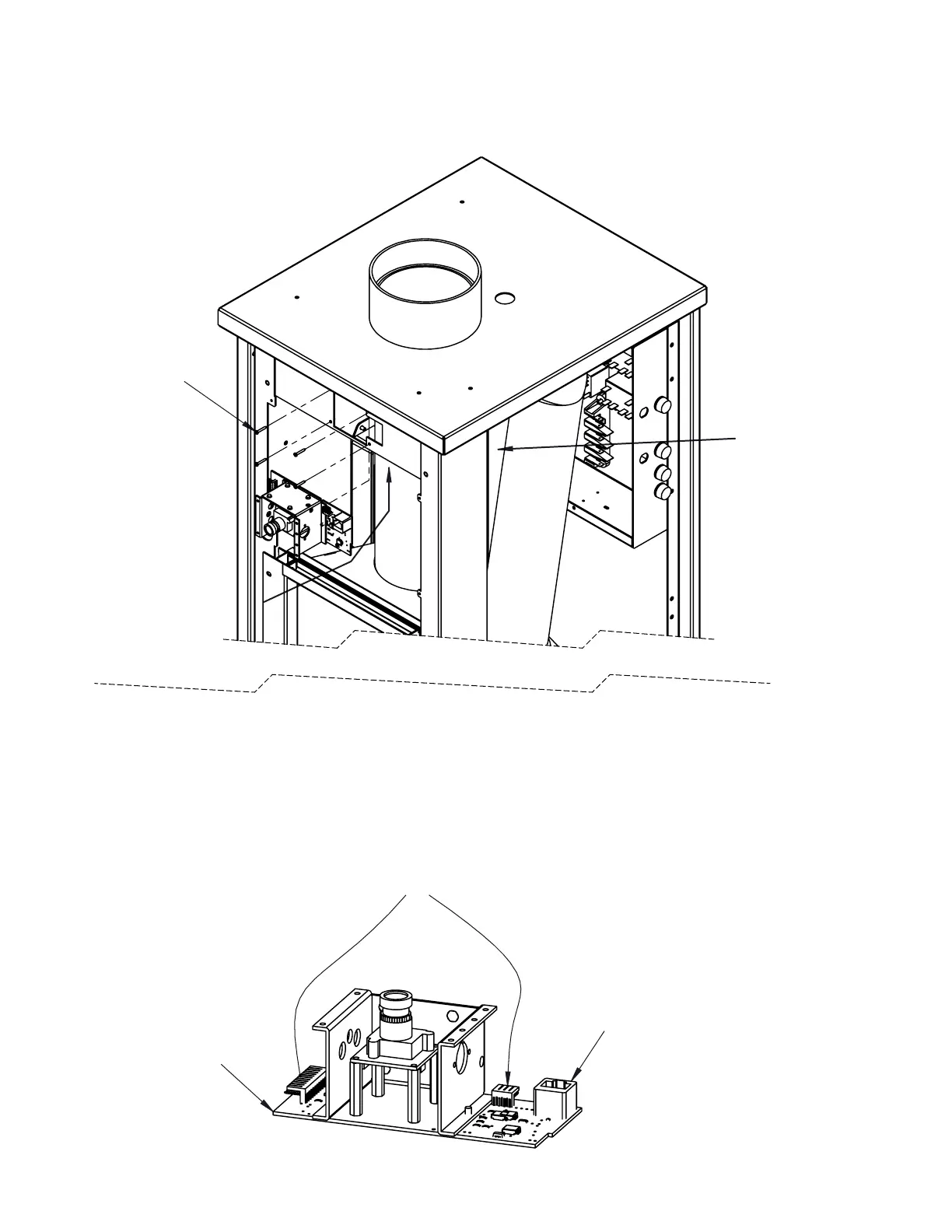

5000RT CUSTOMER CAMERA INSTALLATION
CAMERA CAN BE SLIDE IN PLACE FROM THE SIDE SERVICE DOOR
AREA OR THRU THE MONITOR OPENING. FOUR SCREWS ARE SUPPLIED
TO FASTEN CAMERA IN PLACE
CAMERA CONNECTS TO THE AV-1520 LANE STATION WITH A CAT 5
CABLE THAT PLUGS INTO THE VIDEO ADD ON PORT ON THE LANE STATION
P-31
